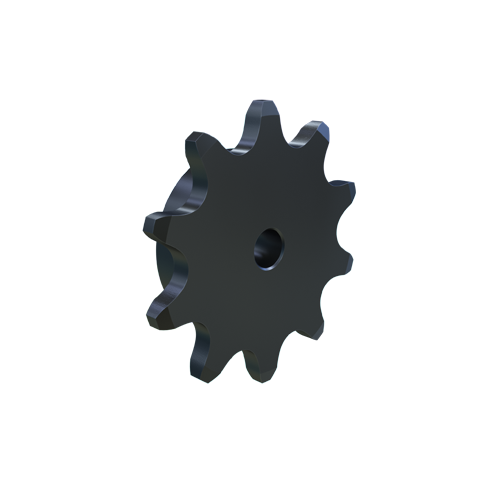

MARTIN SPROCKET 2052B10 Sprocket, 2052 Chain, 10 Teeth, 4.045 Inch Pitch Dia., 4.600 Inch O.D., Steel
Item: AJ9FRJModel: 2052B10
7 In Stock
4.600"
Ships within 2 days via
€113.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 5/8" to 2" |
| Bore Type | Finished Bore |
| Chain Number | 2052 |
| Chain Pitch | 1 1/4" |
| Chain Size | #2052 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 5/8" |
| For Chain Number | 2052 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Dia. | 3" |
| Hub Outside Dia. | 3" |
| Individually Packaged | Yes |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 5/8" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 10 |
| Outside Dia. | 4 3/5" |
| Pitch | 1 1/4" |
| Pitch Dia. | 4.045" , 4.0451" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 1/16" |
| Storage Dimension Length | 4 5/8" |
| Storage Dimension Width | 4 5/8" |
| Type | Type B Single Strand Double Pitch Reboreable |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 2.7 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 11.68 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Storage Dimension Length | Storage Dimension Height | Hub Outside Dia. | Finished Bore Size | Min. Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2052B8 | 3.2664" | 8 | 1" | 3 13/16" | 1 1/8" | 2.3594" | 5/8" | 5/8" | €91.38 | |
 |
2052B9 | 3.6548" | 9 | 1" | 4 5/16" | 1 1/16" | 2.7813" | 5/8" | 5/8" | €102.68 | |
 |
2052B11 | 4.4368" | 11 | 1" | 5 1/4" | 1 1/8" | 3" | 5/8" | 5/8" | €124.72 | |
 |
2052B12 | 4.83" | 12 | 1 1/4" | 5.42" | 1 1/4" | 3" | 3/4" | 3/4" | €139.84 | |
|
2052B13 | 5.2232" | 13 | 1 1/4" | 5.82" | 1 1/4" | 3" | 3/4" | 3/4" | €156.82 | |
|
2052B14 | 5.6174" | 14 | 1 1/4" | 6.23" | 1 1/4" | 3" | 3/4" | 3/4" | €164.49 | |
|
2052B15 | 6.0122" | 15 | 1 1/4" | 6.63" | 1 1/4" | 3 1/4" | 3/4" | 3/4" | €168.52 |
