MARTIN SPROCKET 200B20 Sprocket, 200 Chain, 20 Teeth, 15.981 Inch Pitch Dia., 17.284 Inch O.D., Steel
Get it by Monday, Aug 24
€1,166.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/2" to 5 3/8" |
| Bore Type | Finished Bore |
| Chain Number | 200 |
| Chain Pitch | 2 1/2" |
| Chain Size | #200 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 200 |
| For Chain Pitch | 2 1/2" |
| Hub Configuration | B |
| Hub Dia. | 7 1/2" |
| Hub Outside Dia. | 7 1/2" |
| Individually Packaged | No |
| Length Through Bore | 3 1/2" |
| Length Thru Bore | 3 1/2" |
| Material | Steel |
| Max. Bore Size | 5 3/8" |
| Min. Bore Size | 1 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 20 |
| Outside Dia. | 17.284" |
| Pitch | 2 1/2" |
| Pitch Dia. | 15.9811" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 1.389" |
| Storage Dimension Height | 3 1/4" |
| Storage Dimension Length | 17 7/25" |
| Storage Dimension Width | 17 7/25" |
| Type | Type B Single Strand Welded Reboreable |
Shipping Info:
| Ship weight (kg) | 43.8 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 43.89 |
| Ship width (cm) | 43.89 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Height | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

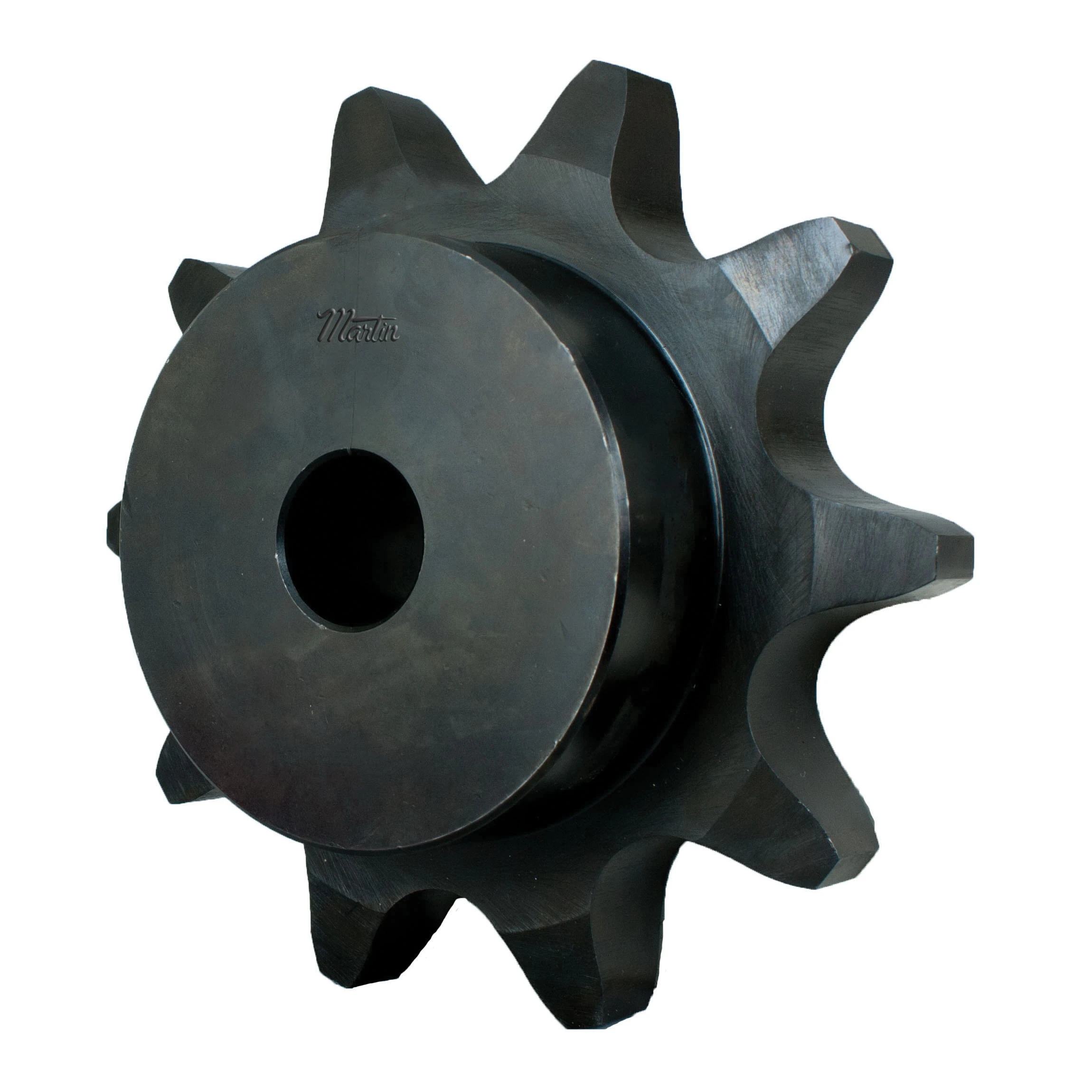

200B10 | 8.0902" | 10 | 3" | 5 1/2" | 1 1/2" to 3 3/4" | 9.19" | 3" | 3" | €634.29 | |
|
200B11 | 8.8737" | 11 | 3" | 6" | 1 1/2" to 4" | 10.01" | 3" | 3" | €729.52 | |
 |

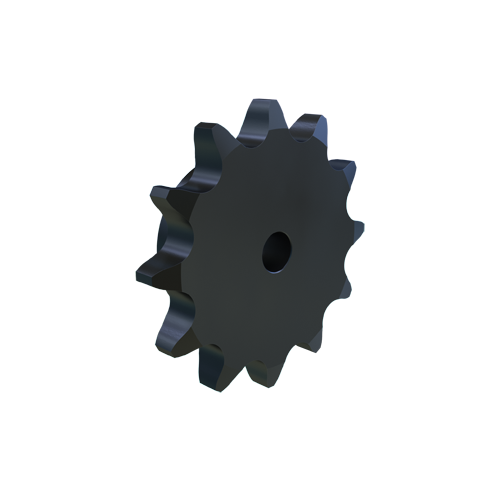

200B12 | 9.6593" | 12 | 3" | 6 1/2" | 1 1/2" | 10.83" | 3" | 3" | €785.23 | |
|
200B13 | 10.4465" | 13 | 3" | 7" | 1 1/2" to 5 1/4" | 11 16/25" | 3" | 3" | €823.61 | |
|
200B14 | 11.2349" | 14 | 3 1/2" | 7 1/2" | 1 1/2" to 5 3/8" | 12.45" | 3 1/2" | 3 1/2" | €782.57 | |
 |

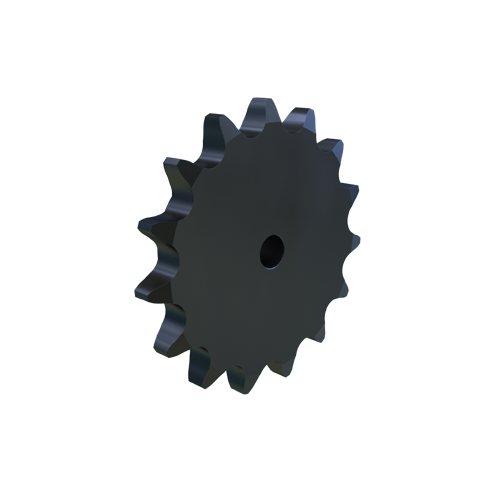

200B15 | 12.0243" | 15 | 3 1/2" | 7 1/2" | 1 1/2" to 5 3/8" | 13.26" | 3 1/2" | 3 1/2" | €916.53 | |
|
200B16 | 12.8146" | 16 | 3 1/2" | 7 1/2" | 1 1/2" to 5 3/8" | 14.07" | 3 1/2" | 3 1/2" | €1,051.42 |
