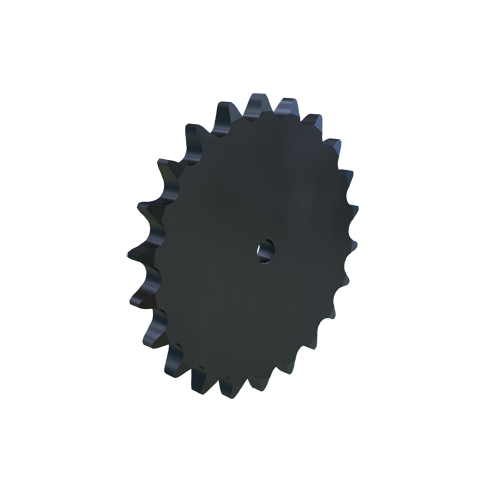

MARTIN SPROCKET 200A22 Roller Chain Sprocket, 200 Chain, Stock Bore, 22 Teeth, 17.567 Inch Pitch Dia., Steel
Get it by Monday, Aug 24
€1,228.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1.5" to 14.858" |
| Bore Type | Finished Bore |
| Chain Number | 200 |
| Chain Pitch | 2 1/2" |
| Chain Size | #200 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 200 |
| For Chain Pitch | 2 1/2" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 1 3/8" , 1.389" |
| Material | Steel |
| Min. Bore Size | 1 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 22 |
| Outside Dia. | 18.888" |
| Pitch | 2 1/2" |
| Pitch Dia. | 17.5667" |
| Single Strand Tooth Thickness | 1.389" |
| Storage Dimension Height | 1.389" |
| Storage Dimension Length | 18.888" |
| Storage Dimension Width | 18.888" |
| Type | Type A Single Strand Solid Reboreable |
Shipping Info:
| Ship weight (kg) | 39.34 |
| Ship height (cm) | 3.53 |
| Ship length (cm) | 47.98 |
| Ship width (cm) | 47.98 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Material | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
200A10 | 8.0902" | 10 | 1 3/8" | 1.5" to 5.164" | 9.195" | 9.195" | Steel | 2 1/2" | €493.25 | |
 |
200A11 | 8.8737" | 11 | 1 3/8" | 1.5" to 5.984" | 10.014" | 10.014" | Steel | 2 1/2" | €559.08 | |
 |
200A13 | 10.4465" | 13 | 1 3/8" | 1.5" to 7.613" | 11.643" | 11.643" | Steel | 2 1/2" | €689.99 | |
 |
200A14 | 11.2349" | 14 | 1 3/8" | 1.5" to 8.423" | 12.453" | 12.453" | Steel | 2 1/2" | €745.68 | |
 |
200A15 | 12.0243" | 15 | 1 3/8" | 1.5" to 9.232" | 13.262" | 13.262" | Steel | 2 1/2" | €777.93 | |
 |
200A16 | 12.8146" | 16 | 1 3/8" | 1.5" to 10.038" | 14.068" | 14.068" | Steel | 2 1/2" | €862.10 | |
 |
200A17 | 13.6055" | 17 | 1 3/8" | 1.5" to 10.844" | 14.874" | 14.874" | Steel | 2 1/2" | €937.92 |
