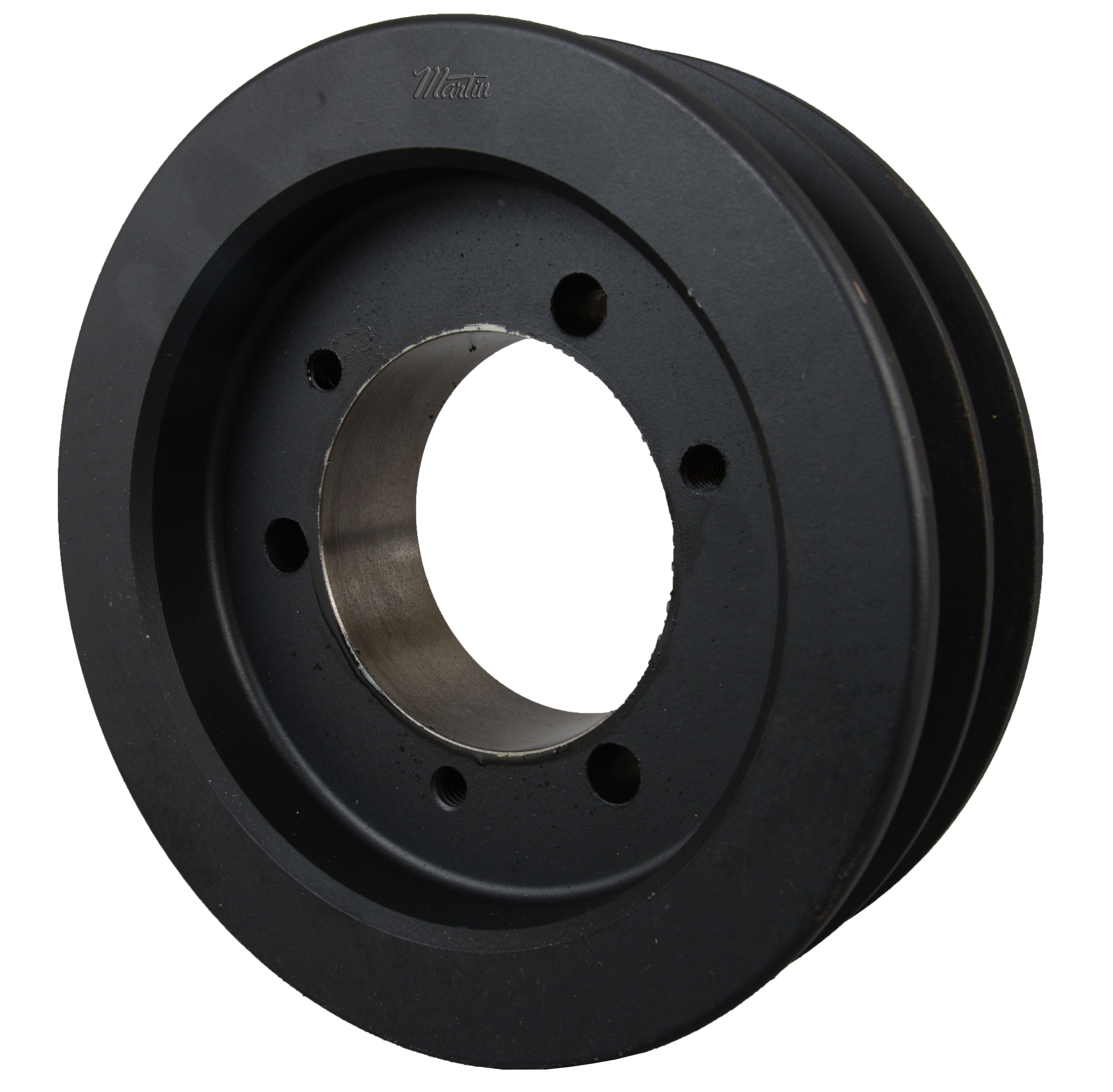

MARTIN SPROCKET 2 C 80 SF Sheave, QD Bushing, 8.4 Inch Outside Dia., 2 Groove, 8 Inch Pitch Dia., Cast Iron
8.4"
Get it by Thursday, Aug 27
€326.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Bore Dia. | 0.5" to 2.938" |
| Bore Type | QD Bushed |
| Bushing Type | SF |
| Face Width | 2 3/8" |
| Length | 2 3/8" |
| Material | Cast Iron |
| No. Of Grooves | 2 |
| Pitch Dia. | 8" |
| Product Datasheet | martin-sprocket-1-3v-1060-sds.pdf |
| Suitable For Use With | C Cross Section V Belts |
| Type | Solid Type A-1 |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 21.34 |
| Ship width (cm) | 21.34 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Type | Bore Dia. | Pitch Dia. | Face Width | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
|
2 C 70 SF | 7 2/5" | Solid Type A-1 | 0.5" to 2.938" | 7" | 2 3/8" | Cast Iron | - | €293.23 | |
|
2 C 75 SF | 7.9" | Solid Type A-1 | 0.5" to 2.938" | 7 1/2" | 2 3/8" | Cast Iron | - | €305.21 | |
 |
2 C 85 SF | 8.9" | Solid Type A-1 | 0.5" to 2.938" | 8 1/2" | 2 3/8" | Cast Iron | - | €331.86 | |
 |

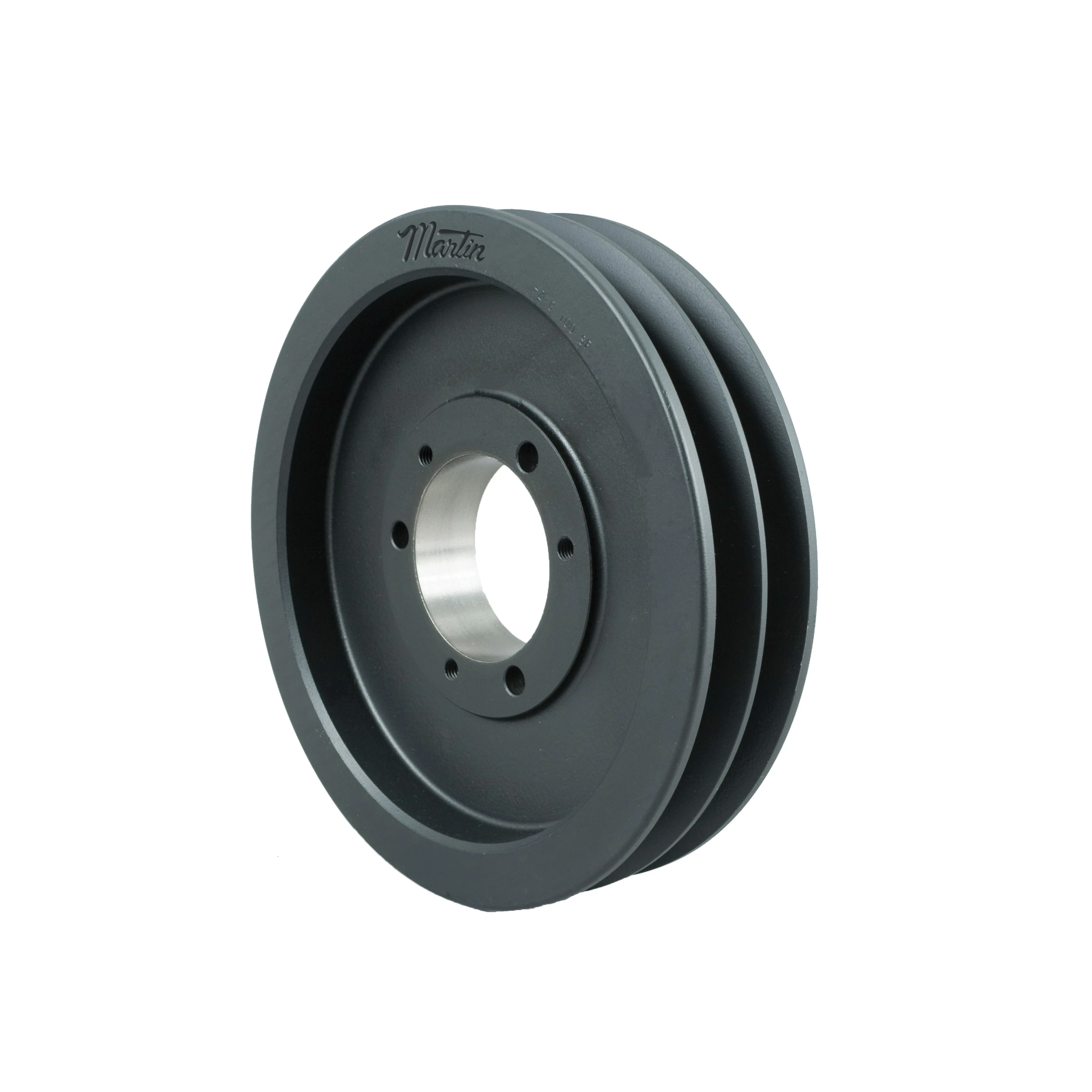

2 C 90 SF | 9 2/5" | Type A-2 Web | 1 1/16" to 2 5/16" | 9" | 2 3/8" | Cast Iron | Gray | €337.65 | |
|
2 C 95 SF | 9.9" | Type A-2 Web | 1 1/16" to 2 5/16" | 9 1/2" | 2 3/8" | Cast Iron | Gray | €355.41 | |
 |

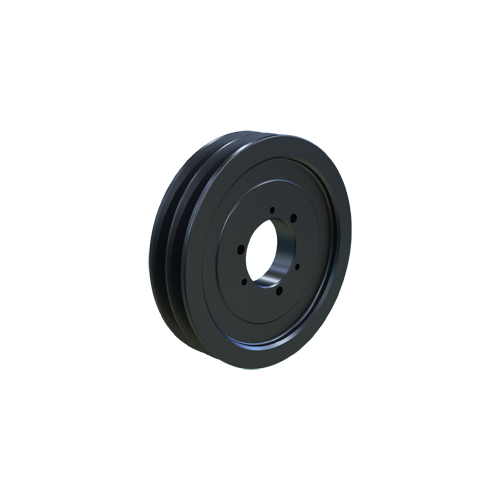

2 C 100 SF | 10 2/5" | Type A-2 Web | 0.5" to 2.938" | 10" | 2 3/8" | Cast Iron | - | €390.94 | |
|
2 C 105 SF | 10.9" | Type A-2 Web | 1 1/16" to 2 5/16" | 10 1/2" | 2 3/8" | Cast Iron | Gray | €417.59 |
