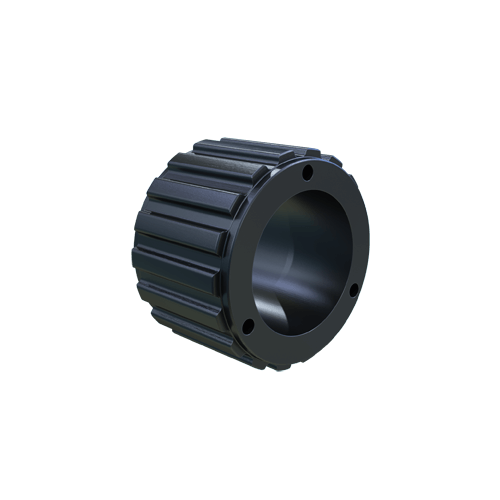

MARTIN SPROCKET 18H150 SH Timing Pulley, 18 Teeth, 1.813 Inch Face Width, 1.5 Inch Belt Width, Steel
Item: AL4NRAModel: 18H150 SH
7 In Stock
1.813"
18
Ships within 2 days via
€127.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Timing Pulley |
| Bore Dia. | 0.5" to 1.688" |
| Bore Type | QD Bushed |
| Bushing Type | SH |
| Face Width | 1.813" |
| Flange Dia. | 3 1/8" |
| Length | 1 5/16" |
| Material | Steel |
| No. Of Grooves | 18 |
| No. Of Teeth | 18 |
| Outside Dia. | 2.811" |
| Pitch | 1/2" |
| Pitch Dia. | 2.865" |
| Suitable For Use With | 1 1/2" W Type H Belt |
| Type | Solid Type EF-1 |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 3.33 |
| Ship length (cm) | 7.14 |
| Ship width (cm) | 7.14 |
| Country of Origin | US |
Product Variants
| Product | Model | Type | Face Width | Material | No. Of Teeth | Pitch Dia. | Bore Dia. | No. Of Grooves | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
30H100 SD | Solid Type GF-1 | 1.312" | Cast Iron | 30 | 4.775" | 1/2" to 2" | 30 | SD | €186.29 | |
 |
32H100 SK | Solid Type GF-1 | 1.313" | Cast Iron | 32 | 5.093" | 1/2" to 2 5/8" | 32 | SK | €199.83 | |
 |
36H100 SK | Solid Type GF-1 | 1.313" | Cast Iron | 36 | 5.73" | 1/2" to 2 5/8" | 36 | SK | €233.56 | |
 |
40H100 SK | Solid Type GF-1 | 1.313" | Cast Iron | 40 | 6.366" | 1/2" to 2 5/8" | 40 | SK | €261.74 | |
 |
44H100 SK | Solid Type GF-1 | 1.313" | Cast Iron | 44 | 7.003" | 1/2" to 2 5/8" | 44 | SK | €307.59 | |
 |
48H100 SK | Solid Type GF-2 | 1.313" | Cast Iron | 48 | 7.639" | 1/2" to 2 5/8" | 48 | SK | €273.47 | |
 |
60H100 SF | Type H-2 Web | 1.313" | Cast Iron | 60 | 9.549" | 0.5" to 2.938" | 60 | SF | €280.66 |
