MARTIN SPROCKET QD Bushed Type Timing Pulleys, H Belt Type
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1| Style | Model | Face Width | Bore Dia. | Material | Type | Outside Dia. | Pitch Dia. | Flange Dia. | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 120H100 SF | 1 5/16" | 0.5" to 2.983" | Cast Iron | Arms, Spoke Type H-3 | 19.0485" | 19.099" | - | QD Bushed | €551.16 | |
| B | 96H150 SF | 1 13/16" | 0.5" to 2.938" | Cast Iron | Arms, Spoke Type H-3 | 15.2285" | 15.279" | - | QD Bushed | €521.33 | |
| C | 28H150 SD | 1 13/16" | 1/2" to 2" | Steel | Solid Type HF-1 | 4.4045" | 4.456" | 4.697" | QD Bushed | €201.96 | |
| C | 44H150 SK | 1 13/16" | 1/2" to 2 5/8" | Cast Iron | Solid Type HF-1 | 6.9515" | 7.003" | 7.231" | QD Bushed | €343.41 | |
| C | 22H150 SD | 1 13/16" | 1/2" to 2" | Steel | Solid Type EF-1 | 3.449" | 3.501" | 3.79" | QD Bushed | €159.54 | |
| D | 84H150 SF | 1 13/16" | 0.5" to 2.938" | Cast Iron | Arms, Spoke Type H-3 | 13.3185" | 13.369" | - | QD Bushed | €431.98 | |
| E | 22H100 SDS | 1.062" | 1/2" to 2" | Steel | Solid Type EF-1 | 3.447" | 3.501" | 3.733" | QD Bushed | €127.54 | |
| F | 20H100 SH | 1.062" | 0.5" to 1.688" | Steel | Solid Type EF-1 | 3.129" | 1.273" | 3.415" | QD Bushed | €115.02 | |
| G | 16H100 JA | 1.062" | 1/2" to 2 3/4" | Steel | Solid Type EF-1 | 2.492" | 2.546" | 2.779" | QD Bushed | €97.68 | |
| H | 30H100 SD | 1.312" | 1/2" to 2" | Cast Iron | Solid Type GF-1 | 4.721" | 4.775" | 5.005" | QD Bushed | €186.29 | |
| I | 28H100 SDS | 1.313" | 1/2" to 2" | Steel | Solid Type HF-1 | 4.402" | 4.456" | 4.697" | QD Bushed | €172.38 | |
| J | 14H100 JA | 1.313" | 3/8" to 1 1/4" | Steel | Solid Type EF-1 | 2.174" | 2.228" | 2.43" | QD Bushed | €85.14 | |

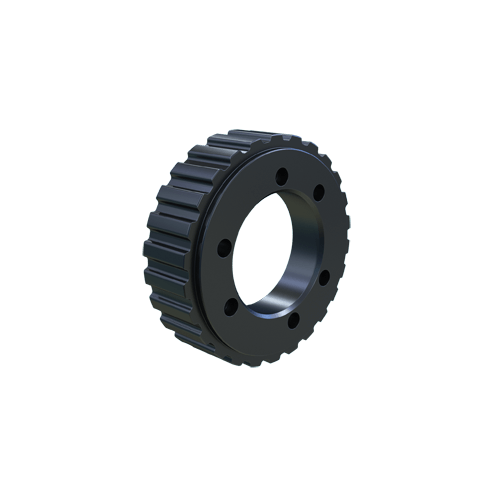

| K | 26H100 SDS | 1.313" | 1/2" to 2" | Steel | Solid Type HF-1 | 4.084" | 4.138" | 4.369" | QD Bushed | €161.60 | |
| L | 96H100 SF | 1.313" | 0.5" to 2.938" | Cast Iron | Spoked Type H-3 | 15.225" | 15.279" | - | QD Bushed | €460.56 | |
| M | 24H100 SDS | 1.313" | 1/2" to 2" | Steel | Solid Type EF-1 | 3.766" | 3.82" | 4.051" | QD Bushed | €141.44 | |
| N | 84H100 SF | 1.313" | 0.5" to 2.938" | Cast Iron | Type H-3 Web | 13.315" | 13.369" | - | QD Bushed | €406.96 | |
| O | 32H100 SK | 1.313" | 1/2" to 2 5/8" | Cast Iron | Solid Type GF-1 | 5.039" | 5.093" | 5.323" | QD Bushed | €199.83 | |
| P | 36H100 SK | 1.313" | 1/2" to 2 5/8" | Cast Iron | Solid Type GF-1 | 5.676" | 5.73" | 5.959" | QD Bushed | €233.56 | |
| Q | 40H100 SK | 1.313" | 1/2" to 2 5/8" | Cast Iron | Solid Type GF-1 | 6.312" | 6.366" | 6.595" | QD Bushed | €261.74 | |
| R | 44H100 SK | 1.313" | 1/2" to 2 5/8" | Cast Iron | Solid Type GF-1 | 6.949" | 7.003" | 7.231" | QD Bushed | €307.59 | |
| S | 48H100 SK | 1.313" | 1/2" to 2 5/8" | Cast Iron | Solid Type GF-2 | 7.585" | 7.639" | 7.867" | QD Bushed | €273.47 | |
| T | 60H100 SF | 1.313" | 0.5" to 2.938" | Cast Iron | Type H-2 Web | 9.495" | 9.549" | - | QD Bushed | €280.66 | |
| U | 18H100 SH | 1.313" | 0.5" to 1.688" | Steel | Solid Type EF-1 | 2.811" | 2.865" | 3 1/8" | QD Bushed | €92.79 | |
| V | 72H100 SF | 1.313" | 0.5" to 2.938" | Cast Iron | Spoked Type H-3 | 11.405" | 11.459" | - | QD Bushed | €345.28 | |
| W | 24H150 SD | 1.562" | 1/2" to 2" | Steel | Solid Type EF-1 | 3.766" | 3.82" | 4.051" | QD Bushed | €172.38 | |

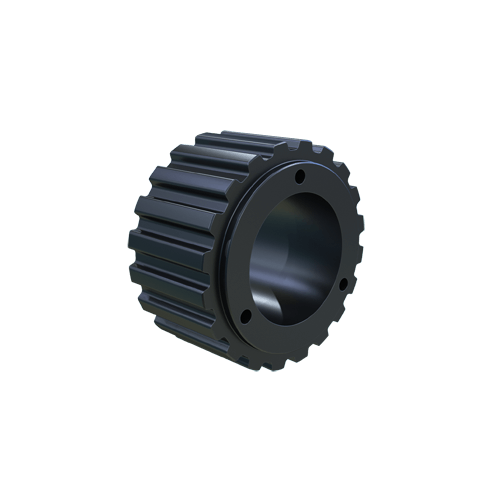

| X | 20H150 SH | 1.562" | 0.5" to 1.688" | Steel | Solid Type EF-1 | 3.129" | 1.273" | 3.415" | QD Bushed | €142.51 | |
| Y | 26H150 SD | 1.813" | 1/2" to 2" | Steel | Solid Type HF-1 | 4.084" | 4.138" | 4.369" | QD Bushed | €191.50 | |
| Z | 60H150 SF | 1.813" | 0.5" to 2.938" | Cast Iron | Type H-2 Web | 9.495" | 9.549" | - | QD Bushed | €344.69 | |

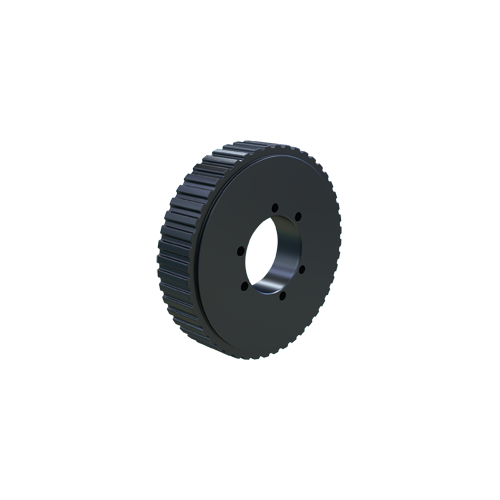

| A1 | 48H150 SK | 1.813" | 1/2" to 2 5/8" | Cast Iron | Solid Type HF-2 | 7.585" | 7.639" | 7.867" | QD Bushed | €304.48 | |

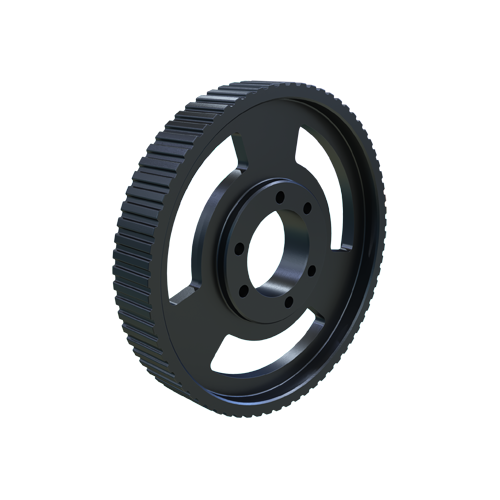

| B1 | 72H150 SF | 1.813" | 0.5" to 2.938" | Cast Iron | Spoked Type H-3 | 11.405" | 11.459" | - | QD Bushed | €384.32 | |
| C1 | 120H150 SF | 1.813" | 0.5" to 2.938" | Cast Iron | Spoked Type H-3 | 19.045" | 19.099" | - | QD Bushed | €655.42 | |

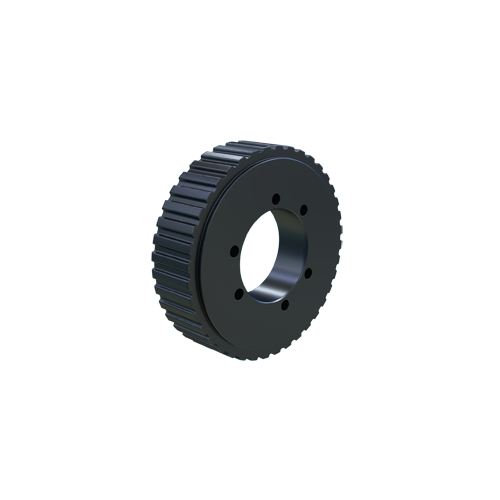

| D1 | 40H150 SK | 1.813" | 1/2" to 2 5/8" | Cast Iron | Solid Type HF-1 | 6.312" | 6.366" | 6.595" | QD Bushed | €291.58 | |
| E1 | 36H150 SK | 1.813" | 1/2" to 2 5/8" | Cast Iron | Solid Type HF-1 | 5.676" | 5.73" | 5.959" | QD Bushed | €268.69 | |
| F1 | 32H150 SK | 1.813" | 1/2" to 2 5/8" | Cast Iron | Solid Type HF-1 | 5.039" | 5.093" | 5.323" | QD Bushed | €233.91 | |
| G1 | 14H150 JA | 1.813" | 3/8" to 1 1/4" | Steel | Solid Type EF-1 | 2.174" | 2.228" | 3" | QD Bushed | €112.61 | |
| H1 | 30H150 SD | 1.813" | 1/2" to 2" | Cast Iron | Solid Type HF-1 | 4.721" | 4.775" | 5.005" | QD Bushed | €216.89 | |
| I1 | 18H150 SH | 1.813" | 0.5" to 1.688" | Steel | Solid Type EF-1 | 2.811" | 2.865" | 3 1/8" | QD Bushed | €127.54 | |
| B | 96H200 E | 2 11/32" | 7/8" to 8 3/4" | Cast Iron | Arms, Spoke Type H-3 | 15.2285" | 15.279" | - | QD Bushed | €607.73 | |
| D | 84H200 SF | 2 11/32" | 0.5" to 2.938" | Cast Iron | Arms, Spoke Type H-3 | 13.3185" | 13.369" | - | QD Bushed | €506.44 | |
| D | 72H200 SF | 2 11/32" | 0.5" to 2.938" | Cast Iron | Arms, Spoke Type H-3 | 11.408" | 11.459" | - | QD Bushed | €431.98 | |
| J1 | 60H200 SF | 2 11/32" | 0.5" to 2.938" | Cast Iron | Type H-2 web | 9.498" | 9.549" | - | QD Bushed | €377.48 | |
| C | 32H200 SK | 2 11/32" | 1/2" to 2 5/8" | Cast Iron | Solid Type HF-1 | 5.0415" | 5.093" | 5.323" | QD Bushed | €261.74 | |
| B | 120H200 E | 2 11/32" | 7/8" to 3 1/2" | Cast Iron | Arms, Spoke Type H-3 | 19.0485" | 19.099" | - | QD Bushed | €816.26 | |
| W | 20H200 SH | 2.093" | 0.5" to 1.688" | Steel | Solid Type EF-1 | 3.129" | 1.273" | 3.415" | QD Bushed | €180.72 | |
| K1 | 16H200 JA | 2.093" | 3/4" to 1 1/4" | Steel | Solid Type EF-1 | 2.492" | 2.546" | 2.779" | QD Bushed | €153.28 | |
| L1 | 40H200 SK | 2.344" | 1/2" to 2 5/8" | Cast Iron | Solid Type HF-1 | 6.312" | 6.366" | 6.595" | QD Bushed | €410.48 | |
| M1 | 28H200 SD | 2.344" | 1/2" to 2" | Steel | Solid Type HF-1 | 4.402" | 4.456" | 4.697" | QD Bushed | €231.83 | |

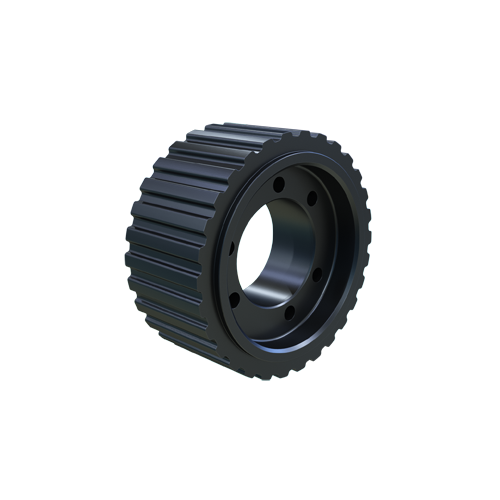

| N1 | 30H200 SD | 2.344" | 1/2" to 2" | Cast Iron | Solid Type HF-1 | 4.721" | 4.775" | 5.005" | QD Bushed | €248.89 | |
| O1 | 18H200 SH | 2.344" | 0.5" to 1.688" | Steel | Solid Type EF-1 | 2.811" | 2.865" | 3 1/8" | QD Bushed | €163.70 | |
| P1 | 44H200 SK | 2.344" | 1/2" to 2 5/8" | Cast Iron | Solid Type HF-1 | 6.949" | 7.003" | 7.231" | QD Bushed | €351.85 | |
| O1 | 22H200 SD | 2.344" | 1/2" to 2" | Steel | Solid Type EF-1 | 3.447" | 3.501" | 3.79" | QD Bushed | €186.98 | |
| Q1 | 24H200 SD | 2.344" | 1/2" to 2" | Steel | Solid Type EF-1 | 3.766" | 3.82" | 4.051" | QD Bushed | €199.83 | |
| O1 | 36H200 SK | 2.344" | 1/2" to 2 5/8" | Cast Iron | Solid Type HF-1 | 5.676" | 5.73" | 5.959" | QD Bushed | €338.88 | |
| O1 | 26H200 SD | 2.344" | 1/2" to 2" | Steel | Solid Type HF-1 | 4.084" | 4.138" | 4.369" | QD Bushed | €216.89 | |
| R1 | 48H200 SF | 2.344" | 0.5" to 2.938" | Cast Iron | Solid Type HF-2 | 7.585" | 7.639" | 7.867" | QD Bushed | €356.90 | |
| S1 | 48H300 SF | 3 3/8" | 0.5" to 2.938" | Cast Iron | Type JF-2 Web | 7.588" | 7.639" | 7.867" | QD Bushed | €395.63 | |
| D | 84H300 SF | 3 3/8" | 0.5" to 2.938" | Cast Iron | Type J-2 web | 13.3185" | 13.369" | - | QD Bushed | €604.76 | |
| T1 | 72H300 SF | 3 3/8" | 0.5" to 2.938" | Cast Iron | Type J-2 web | 11.408" | 11.459" | - | QD Bushed | €536.25 | |
| U1 | 60H300 SF | 3 3/8" | 0.5" to 2.938" | Cast Iron | Type J-2 Web | 9.495" | 9.549" | - | QD Bushed | €454.01 | |
| V1 | 120H300 E | 3 3/8" | 7/8" to 8 7/8" | Cast Iron | Spoked Type H-3 | - | 19.099" | - | QD Bushed | €983.13 | |
| W1 | 44H300 SK | 3 3/8" | 1/2" to 2 5/8" | Cast Iron | Solid Type JF-1 | 6.949" | 7.003" | 7.231" | QD Bushed | €390.27 |
