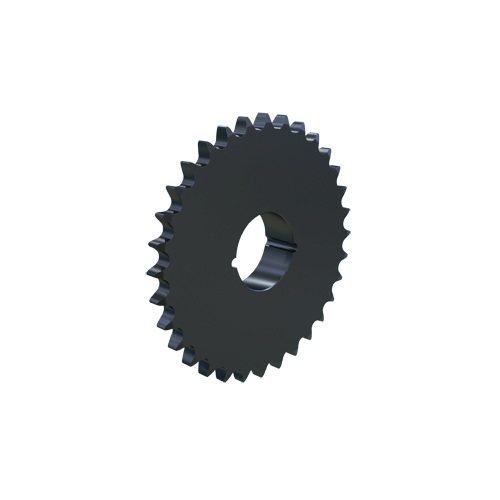

MARTIN SPROCKET 16BTB32 Sprocket, 16B-1 Chain, 32 Teeth, 259.140 mm Pitch Dia., 275.010 mm O.D., Steel
275.010 mm
Get it by Tuesday, Aug 25
€474.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 63.5 mm |
| Bushing Type | 2517 Taper |
| Chain Size | #16B-1 |
| Hub Dia. | 108 mm |
| Length Through Bore | 44.45 mm |
| Material | Steel |
| No. Of Teeth | 32 |
| Outside Dia. | 275.01 mm |
| Pitch | 25.4 mm |
| Pitch Dia. | 259.14 mm |
| Type | Type B Single Strand Stock Bore Welded |
Shipping Info:
| Ship weight (kg) | 6.36 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 27.51 |
| Ship width (cm) | 27.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bushing Type | Bore Dia. | Material | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
16BTB38 | 307.58 mm | 38 | 44.45 mm | 108 mm | 2517 Taper Lock | - | Steel | 25.4 mm | €629.32 | |
 |
16BTB57 | 461.08 mm | 57 | 44.45 mm | 107 mm | 2517 Taper | 63.5 mm | Steel | 25.4 mm | €835.62 | |
 |
16BTB76 | 614.64 mm | 76 | 50.8 mm | 133 mm | 3020 Taper | 76.2 mm | Steel | 25.4 mm | €1,284.53 | |
 |
16BTB11H | 90.16 mm | 11 | 38.1 mm | 63 mm | 1215 Taper | 31.75 mm | Steel | 25.4 mm | €204.90 | |
 |
16BTB12H | 98.14 mm | 12 | 38.1 mm | 76 mm | 1615 Taper | 41.28 mm | Steel | 25.4 mm | €217.58 | |
 |
16BTB13H | 106.14 mm | 13 | 38.1 mm | 76 mm | 1615 Taper | 41.28 mm | Steel | 25.4 mm | €228.77 | |
|
16BTB14H | 114.15 mm | 14 | 38.1 mm | 83 mm | 1615 Taper | 41.28 mm | Steel | 25.4 mm | €244.71 |
