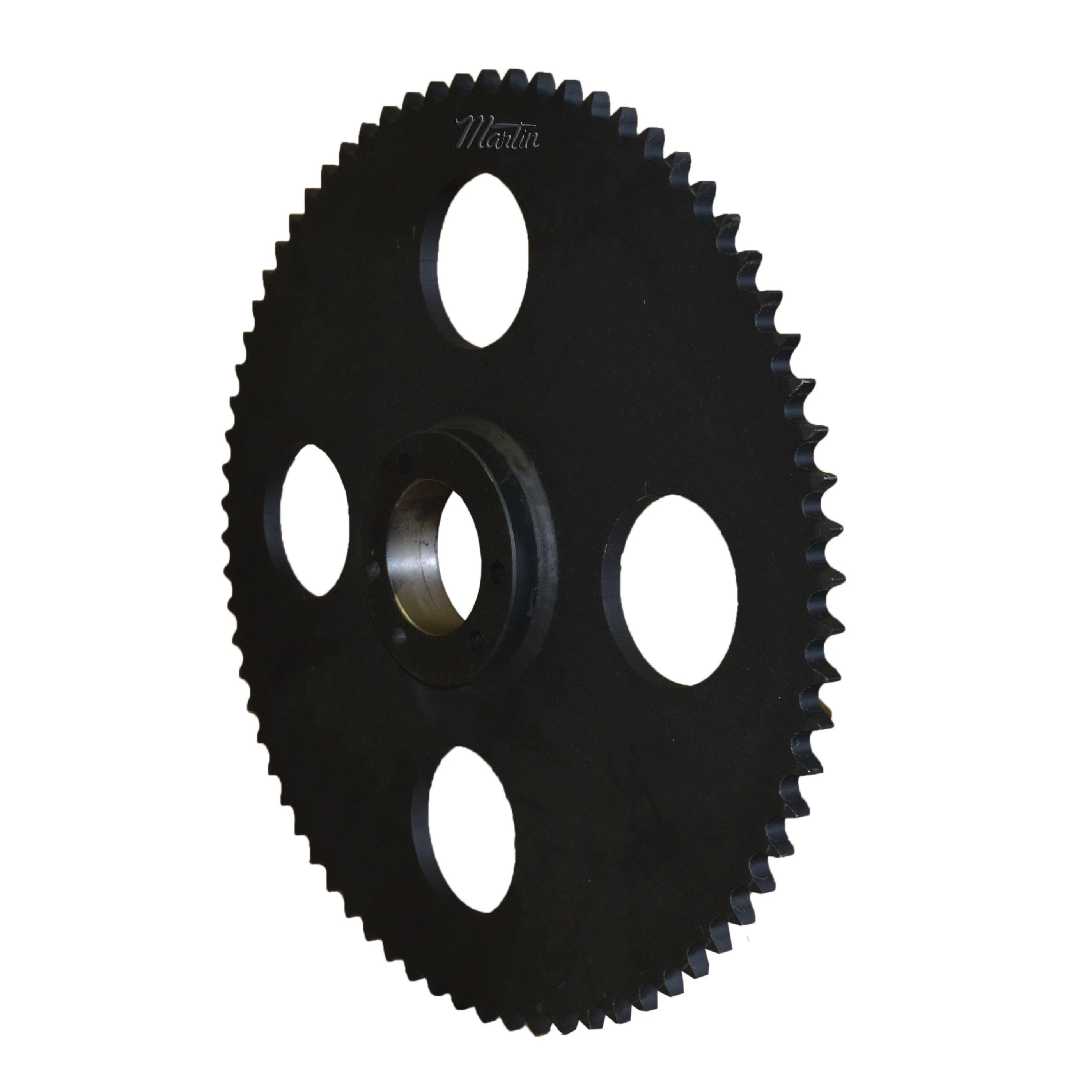

MARTIN SPROCKET 160M80 Sprocket, 160 Chain, 80 Teeth, 50.943 Inch Pitch Dia., 52.103 Inch O.D., Steel
52.103"
Get it by Tuesday, Aug 25
€5,135.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 2" to 5 1/2" |
| Bore Type | Bushed |
| Bushing Part Number | M |
| Bushing Size | M |
| Bushing Type | QD M |
| Chain Number | 160 |
| Chain Pitch | 2" |
| Chain Size | #160 |
| Construction | Welded With Lightening Holes |
| Construction Type | Welded With Lightening Holes |
| For Chain Number | 160 |
| For Chain Pitch | 2" |
| Hub Configuration | C |
| Hub Dia. | 9 1/2" |
| Hub Outside Dia. | 9 1/2" |
| Individually Packaged | No |
| Length Through Bore | 5 3/16" |
| Material | Steel |
| Max. Bore Size | 5 1/2" |
| Min. Bore Size | 2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 80 |
| Outside Dia. | 52.103" |
| Pitch | 2" |
| Pitch Dia. | 50.9427" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 1.156" |
| Storage Dimension Height | 5.19" |
| Storage Dimension Length | 52.103" |
| Storage Dimension Width | 52.103" |
| Type | Type C Single Strand Welded Bushed |
Shipping Info:
| Ship weight (kg) | 238.5 |
| Ship height (cm) | 13.18 |
| Ship length (cm) | 132.33 |
| Ship width (cm) | 132.33 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Hub Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 160E12 | - | - | - | - | - | - | - | - | €674.19 | |
| 160E13 | - | - | - | - | - | - | - | - | €736.41 | |
| 160E14 | - | - | - | - | - | - | - | - | €694.54 | |
| 160F15 | 9.62" | 15 | 3 5/8" | 7" | 10.609" | 10.609" | 2 1/2" | 7" | €671.87 | |
| 160F16 | 10.252" | 16 | 3 5/8" | 7" | 11.255" | 11.255" | 2 1/2" | 7" | €752.63 | |
| 160F17 | 10.8844" | 17 | 3 5/8" | 7" | 11.899" | 11.899" | 2 1/2" | 7" | €806.19 | |
| 160F18 | 11.518" | 18 | 3 5/8" | 7" | 12.543" | 12.543" | 2 1/2" | 7" | €772.03 |
