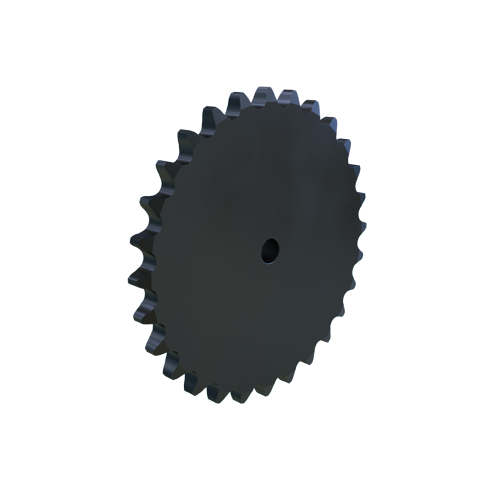

MARTIN SPROCKET 160B28 Sprocket, 160 Chain, 28 Teeth, 17.863 Inch Pitch Dia., 18.950 Inch O.D., Steel
Get it by Monday, Aug 24
€1,188.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/2" to 5 1/4" |
| Bore Type | Finished Bore |
| Chain Number | 160 |
| Chain Pitch | 2" |
| Chain Size | #160 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 160 |
| For Chain Pitch | 2" |
| Hub Configuration | B |
| Hub Dia. | 7" |
| Hub Outside Dia. | 7" |
| Individually Packaged | No |
| Length Through Bore | 3" |
| Length Thru Bore | 3" |
| Material | Steel |
| Max. Bore Size | 5 1/4" |
| Min. Bore Size | 1 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 28 |
| Outside Dia. | 18.95" |
| Pitch | 2" |
| Pitch Dia. | 17.8628" , 17.863" |
| Product Datasheet | martin-sprocket-06a15.pdf |
| Single Strand Tooth Thickness | 1.156" |
| Storage Dimension Height | 3" |
| Storage Dimension Length | 18.95" |
| Storage Dimension Width | 18.95" |
| Type | Type B Single Strand Stock Bore Welded |
Shipping Info:
| Ship weight (kg) | 43.78 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 48.13 |
| Ship width (cm) | 48.13 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
160B8 | 5.2263" | 8 | 2 1/4" | 3 1/4" | 1 1/2" | 6.03" | 6.03" | 2 1/4" | €391.00 | |
 |
160B9 | 5.8476" | 9 | 2 1/4" | 3 5/8" | 1 1/2" to 2 1/8" | 6.69" | 6.69" | 2 1/4" | €411.46 | |
 |
160B10 | 6.4721" | 10 | 2 1/4" | 4 1/8" | 1 1/2" | 7 9/25" | 7 9/25" | 2 1/4" | €370.23 | |
 |
160B11 | 7.0989" | 11 | 2 1/2" | 4 3/4" | 1 1/2" to 3 1/4" | 8.01" | 8.01" | 2 1/2" | €445.76 | |
 |
160B12 | 7.7274" | 12 | 2 1/2" | 5 1/2" | 1 1/2" | 8.665" | 8.665" | 2 1/2" | €500.55 | |
 |
160B13 | 8.357" | 13 | 2 3/4" | 6" | 1 1/2" to 4" | 9.31" | 9.31" | 2 3/4" | €559.08 | |
 |
160B14 | 8.988" | 14 | 2 3/4" | 6 1/2" | 1 1/2" to 4 1/2" | 9 24/25" | 9 24/25" | 2 3/4" | €606.15 |
