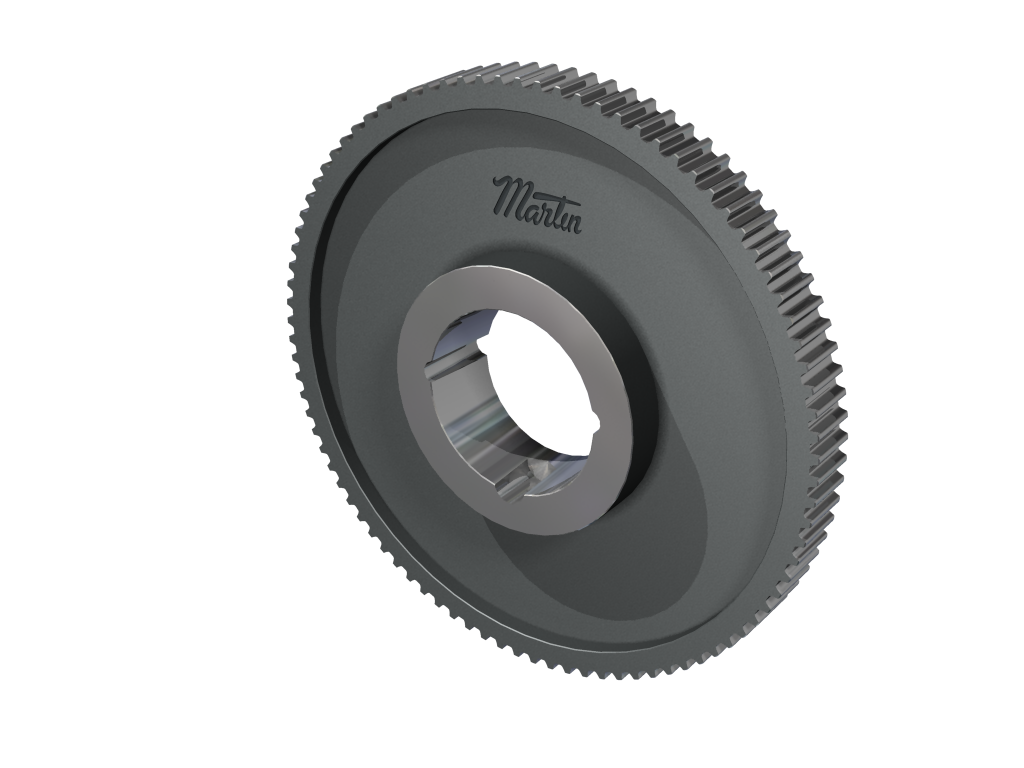

MARTIN SPROCKET 14MX90S90-4030 Sprocket, 4030 Bushing, 15.790 Inch Max Bore, 90 Teeth, 15.790 Inch Pitch Dia., Steel
Get it by Monday, Mar 2
€1,423.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Belt Pitch | 14 mm |
| Belt Width | 3.543" |
| Bore Type | Bushed |
| Bushing Part No. | 4030 |
| Construction Type | Web |
| Face Width | 4 1/5" |
| Material | Steel |
| Max. Bore Size | 4" |
| Min. Bore Size | 1.438" |
| No. Of Teeth | 90 |
| Outside Dia. | 15.79" |
| Pitch Dia. | 15.79" |
| Product Datasheet | martin-sprocket-14mx112s90-4535.pdf |
Shipping Info:
| Ship weight (kg) | 40.07 |
| Ship height (cm) | 10.64 |
| Ship length (cm) | 40.11 |
| Ship width (cm) | 40.11 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Outside Dia. | Pitch Dia. | Bore Type | Belt Width | Face Width | Type | Bushing Type | Flange Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 14MX140S20-3525 | 24.452" | 24.562" | Bushed | 0.787" | 1 9/25" | - | - | - | €1,269.67 | |
| 14MX140S90-5040 | 24.452" | 24.562" | TB Bushed | 3.543" | 4 1/5" | Spoked Type D-3 Arm | 5040 | - | €2,274.98 | |
| 14MX28S37-2012 | 4.802" | 4.912" | TB Bushed | 1.457" | 2.06" | Solid Type AF-1 | 2012 | 5.4" | €330.00 | |
| 14MX29S68-2517 | 4.978" | 5.088" | Bushed | 2.677" | 3.33" | - | - | - | €486.05 | |
| 14MX30S68-2517 | 5.153" | 5.263" | TB Bushed | 2.677" | 3.33" | Solid Type AF-1 | 2517 | 5.76" | €502.81 | |
| 14MX31S68-2517 | 5.329" | 5.439" | Bushed | 2.677" | 3.33" | - | - | - | €528.56 | |
| 14MX32S68-2517 | 5.504" | 5.614" | Bushed | 2.677" | 3.33" | - | - | - | €553.11 |
