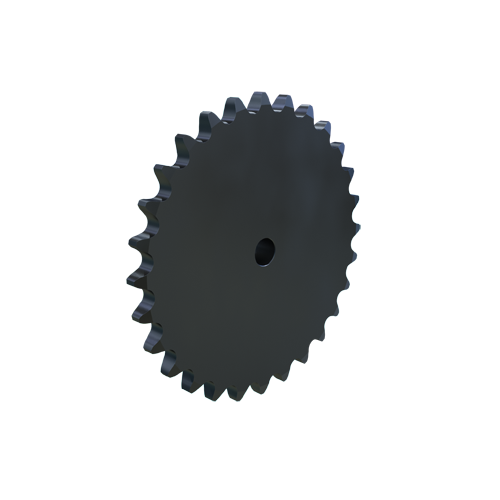

MARTIN SPROCKET 140B28 Sprocket, 140 Chain, 28 Teeth, 15.630 Inch Pitch Dia., 16.582 Inch O.D., Steel
16.582"
Get it by Friday, Aug 21
€778.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/2" to 4 1/4" |
| Bore Type | Finished Bore |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Chain Size | #140 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hub Configuration | B |
| Hub Dia. | 6 1/4" |
| Hub Outside Dia. | 6 1/4" |
| Individually Packaged | No |
| Length Through Bore | 3" |
| Length Thru Bore | 3" |
| Material | Steel |
| Max. Bore Size | 4 1/4" |
| Min. Bore Size | 1 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 28 |
| Outside Dia. | 16.582" |
| Pitch | 1 3/4" |
| Pitch Dia. | 15.63" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 3" |
| Storage Dimension Length | 16.58" |
| Storage Dimension Width | 16.58" |
| Type | Type B Single Strand Stock Bore Welded |
Shipping Info:
| Ship weight (kg) | 27.99 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 42.11 |
| Ship width (cm) | 42.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
140B11 | 6.2116" | 11 | 2 1/4" | 4 1/4" | 1 1/2" | 7.01" | 7.01" | 2 1/4" | €333.52 | |
 |
140B14 | 7.864" | 14 | 2 3/8" | 5 1/2" | 1 1/2" | 8 18/25" | 8 18/25" | 2 3/8" | €468.74 | |
 |
140B15 | 8.417" | 15 | 2 3/8" | 6 1/4" | 1 1/2" | 9 7/25" | 9 7/25" | 2 3/8" | €506.44 | |
 |
140B17 | 9.524" | 17 | 2 1/2" | 6 1/4" | 1 1/2" to 4 1/4" | 10.41" | 10.41" | 2 1/2" | €549.31 | |
 |
140B18 | 10.078" | 18 | 2 1/2" | 6 1/4" | 1 1/2" to 4 1/4" | 10.97" | 10.97" | 2 1/2" | €568.23 | |
 |
140B19 | 10.6322" | 19 | 2 1/2" | 6 1/4" | 1 1/2" to 4 1/4" | 11.54" | 11.54" | 2 1/2" | €604.70 | |
 |
140B20 | 11.1868" | 20 | 2 1/2" | 6 1/4" | 1 1/2" | 12.1" | 12.1" | 2 1/2" | €632.24 |
