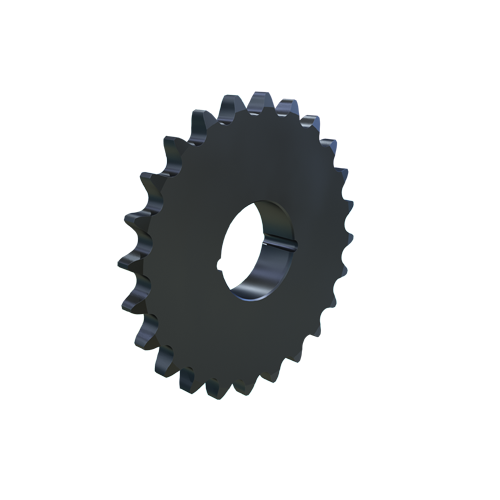

MARTIN SPROCKET 120BTB24 Sprocket, 120 Chain, 24 Teeth, 11.492 Inch Pitch Dia., 12.294 Inch O.D., Steel
12.294"
Get it by Wednesday, Aug 26
€595.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 3020 |
| Bushing Type | 3020 Taper Lock |
| Chain Number | 120 |
| Chain Pitch | 1 1/2" |
| Chain Size | #120 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 120 |
| For Chain Pitch | 1 1/2" |
| Hub Configuration | B |
| Hub Dia. | 5 1/4" |
| Hub Outside Dia. | 5 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2" |
| Length Thru Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3" |
| Min. Bore Size | 15/16" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 24 |
| Outside Dia. | 12.294" |
| Pitch | 1 1/2" |
| Pitch Dia. | 11.4919" , 11.492" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 12.294" |
| Storage Dimension Width | 12.294" |
| Type | Taper Bushed Type B |
Shipping Info:
| Ship weight (kg) | 10.58 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 31.22 |
| Ship width (cm) | 31.22 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
120BTB13 | 6.2679" | 13 | 1 3/4" | 4 1/4" | 6.986" | 6.986" | 1 3/4" | 1 3/4" | €384.47 | |
 |
120BTB14 | 6.7409" | 14 | 1 3/4" | 4 1/4" | 7.472" | 7.472" | 1 3/4" | 1 3/4" | €418.11 | |
 |
120BTB15 | 7.215" | 15 | 1 3/4" | 4 1/4" | 7.957" | 7.957" | 1 3/4" | 1 3/4" | €495.56 | |
|
120BTB16 | 7.689" | 16 | 2" | 5 1/4" | 8.441" | 8.441" | 2" | 2" | €509.33 | |
|
120BTB17 | 8.163" | 17 | 2" | 5 1/4" | 8.924" | 8.924" | 2" | 2" | €536.31 | |
|
120BTB18 | 8.6382" | 18 | 2" | 5 1/4" | 9.407" | 9.407" | 2" | 2" | €482.53 | |
|
120BTB19 | 9.1133" | 19 | 2" | 5 1/4" | 9.889" | 9.889" | 2" | 2" | €512.55 |
