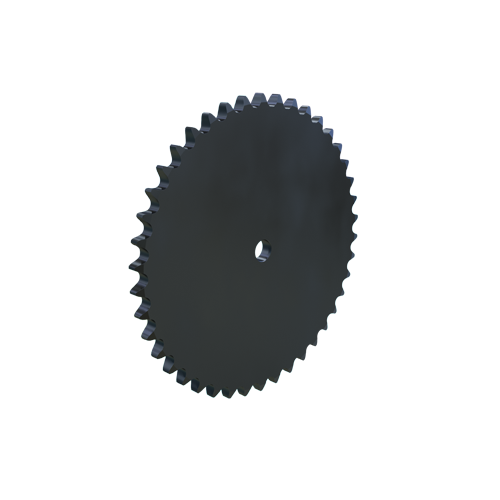

MARTIN SPROCKET 120A42 Sprocket, 120 Chain, 42 Teeth, 20.072 Inch Pitch Dia., 20.916 Inch O.D., Steel
20.916"
Get it by Monday, Aug 24
€824.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1.5" to 18.486" |
| Bore Type | Finished Bore |
| Chain Number | 120 |
| Chain Pitch | 1 1/2" |
| Chain Size | #120 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 120 |
| For Chain Pitch | 1 1/2" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.924" , 7/8" |
| Material | Steel |
| Min. Bore Size | 1 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 42 |
| Outside Dia. | 20.916" |
| Pitch | 1 1/2" |
| Pitch Dia. | 20.0722" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 0.924" |
| Storage Dimension Length | 20.916" |
| Storage Dimension Width | 20.916" |
| Type | Type A Single Strand Solid Reboreable |
Shipping Info:
| Ship weight (kg) | 33.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 53.14 |
| Ship width (cm) | 53.14 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Min. Bore Size | Finished Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
120A8 | 3.9197" | 8 | 0.924" | 1.25" to 2.091" | 4.521" | 4.521" | 1 1/4" | 1 1/4" | €161.91 | |
 |
120A9 | 4.3857" | 9 | 0.924" | 1.25" to 2.591" | 5.022" | 5.022" | 1 1/4" | 1 1/4" | €162.95 | |
 |
120A10 | 4.8541" | 10 | 0.924" | 1.25" to 3.087" | 5.517" | 5.517" | 1 1/4" | 1 1/4" | €170.00 | |
 |
120A11 | 5.3242" | 11 | 0.924" | 1 1/4" | 6.009" | 6.009" | 1 1/4" | 1 1/4" | €183.32 | |
 |
120A12 | 5.796" | 12 | 0.924" | 1 1/4" | 6.498" | 6.498" | 1 1/4" | 1 1/4" | €205.26 | |
 |
120A13 | 6.2679" | 13 | 0.924" | 1.25" to 4.556" | 6.986" | 6.986" | 1 1/4" | 1 1/4" | €217.14 | |
 |
120A14 | 6.7409" | 14 | 0.924" | 1.25" to 5.042" | 7.472" | 7.472" | 1 1/4" | 1 1/4" | €229.93 |
