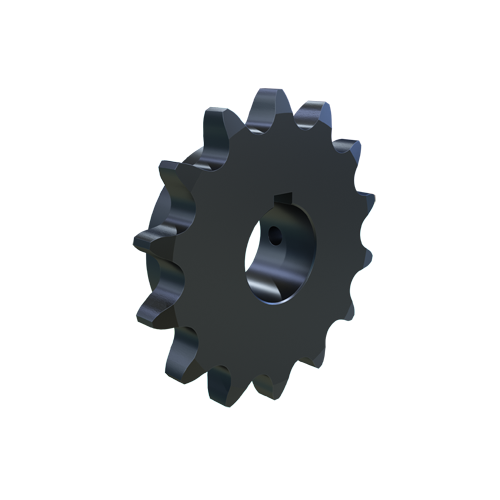

MARTIN SPROCKET 100BS14 1 15/16 Roller Chain Sprocket, Bore To Size, 1.938 Inch Bore, 6.227 Inch Outside Dia. Steel
Item: AJ9KHZModel: 100BS14 1 15/16
7 In Stock
6.227"
1.938"
Ships within 2 days via
€277.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 15/16" |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | #100 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 15/16" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Diameter | 4.188" |
| Hub Outside Dia. | 4 3/16" |
| Individually Packaged | No |
| Keyway Size | 1/2" x 1/4" |
| Length Through Bore | 1 5/8" |
| Length Thru Bore | 1 5/8" |
| Material | Steel |
| No. Of Teeth | 14 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 14 |
| O.d. | 6.227" |
| Outside Dia. | 6.227" |
| Pitch | 1 1/4" |
| Pitch Dia. | 5.6174" |
| Pitch Diameter | 5.617" |
| Screw Size | 1/2"-13 x 1/2" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/2"-13 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 1.63" |
| Storage Dimension Length | 6.227" |
| Storage Dimension Width | 6.227" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 2.88 |
| Ship height (cm) | 4.14 |
| Ship length (cm) | 15.82 |
| Ship width (cm) | 15.82 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100BS8 1 | 8 | 3.2664" | 3.768" | 1 7/8" | 5/16"-18 | 100 | 1 1/4" | Finished Bore | €147.83 | |
|
100BS9 1 | 9 | 3.6548" | 4.184" | 1 7/8" | 5/16"-18 | 100 | 1 1/4" | Finished Bore | €188.30 | |
 |
100BS10 1 | 10 | 4.0451" | 4.597" | 1 7/8" | 5/16"-18 | 100 | 1 1/4" | Finished Bore | €204.75 | |
|
100BS11 1 | 11 | 4.4368" | 5.007" | 1 7/8" | 5/16"-18 | 100 | 1 1/4" | Finished Bore | €230.34 | |
 |
100BS12 1 | 12 | 4.8296" | 5.415" | 1 7/8" | 5/16"-18 | 100 | 1 1/4" | Finished Bore | €247.30 | |
|
100BS13 1 | 13 | 5.2232" | 5.821" | 1 5/8" | 5/16"-18 | 100 | 1 1/4" | Finished Bore | €264.56 | |
|
100BS8 1 3/16 | 8 | 3.2664" | 3.768" | 1 7/8" | 5/16"-18 | 100 | 1 1/4" | Finished Bore | €147.83 |
