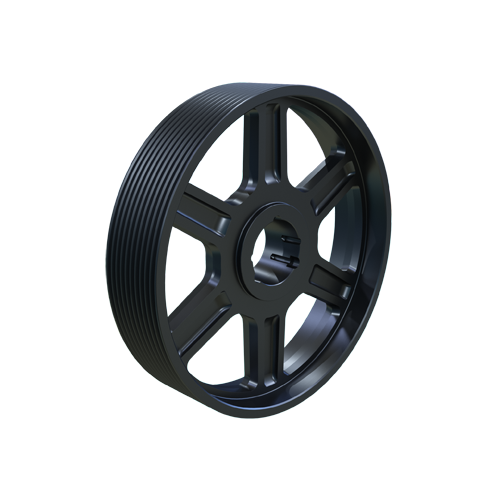

MARTIN SPROCKET 10 5V 3150 TB Sheave, TB Bushing, 31.5 Inch Outside Dia., 10 Groove, 31.4 Inch Pitch Dia., Cast Iron
31.5"
Get it by Tuesday, Sep 1
€3,847.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Bore Dia. | 1 15/16" to 4 1/4" |
| Bore Type | TB Bushed |
| Bushing Type | 4545 |
| Color | Gray |
| Face Width | 7 3/16" |
| Length | 7 3/16" |
| Material | Cast Iron |
| No. Of Grooves | 10 |
| Pitch Dia. | 31 2/5" |
| Suitable For Use With | 5V Cross Section V Belts |
| Type | Arm, Spoke Type A-3 |
Shipping Info:
| Ship weight (kg) | 28.8 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 80.01 |
| Ship width (cm) | 80.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Type | Outside Dia. | Face Width | Bore Dia. | Pitch Dia. | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
10 5V 1180 TB | Solid Type A-1 | 11 4/5" | 7 3/16" | 1 1/2" to 3 5/8" | 11.7" | Cast Iron | Gray | €1,134.54 | |
 |
10 5V 1250 TB | Solid Type A-1 | 12 1/2" | 7 3/16" | 1 1/2" to 3 5/8" | 12 2/5" | Cast Iron | Gray | €1,229.09 | |
 |
10 5V 1320 TB | Solid Type A-1 | 13 1/5" | 7 3/16" | 1 1/2" to 3 5/8" | 13.1" | Cast Iron | Gray | €1,370.91 | |
 |
10 5V 1400 TB | Solid Type A-1 | 14" | 7 3/16" | 1 15/16" to 4 1/4" | 13.9" | Cast Iron | Gray | €1,512.72 | |
 |
10 5V 1500 TB | Type A-2 Web | 15" | 7.188" | 1.938" to 4.5" | 14.9" | Cast Iron | - | €1,701.81 | |
 |
10 5V 1600 TB | Type A-2 Web | 16" | 7 3/16" | 1 15/16" to 4 1/4" | 15.9" | Cast Iron | Gray | €1,843.62 | |
 |
10 5V 2120 TB | Arm, Spoke Type A-3 | - | 7 3/16" | 1 15/16" to 4 1/4" | 21.1" | Cast Iron | Gray | €2,316.34 |
