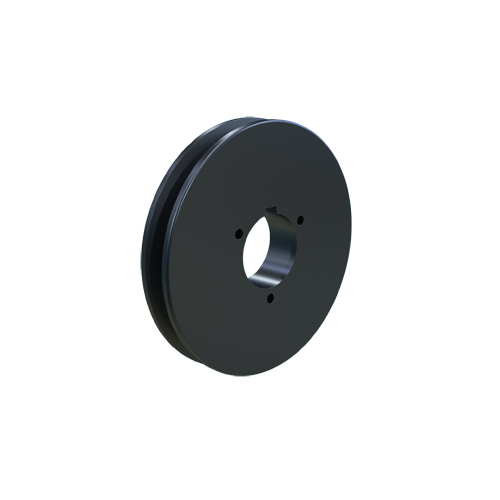

MARTIN SPROCKET 1 B 60 P Sheave, MST Bushing, 6.350 Inch Outside Dia., 1 Groove, 6 Inch Pitch Dia., Steel
6.350"
Get it by Friday, Aug 28
€144.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Belt Cross Section | B |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Bushed |
| Bushing Size | P1 |
| Bushing Style | Mst |
| Bushing Type | MST P1 |
| Face Width | 1" |
| Length | 1.94" |
| Material | Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 1/2" |
| No. Of Grooves | 1 |
| Sheave Construction | Web |
| Suitable For Use With | A, B Cross Section Belts |
| Type | Type M Web |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 16.13 |
| Ship width (cm) | 16.13 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Type | Material | Pitch Dia. | Face Width | Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
1 B 34 P | 3 3/4" | - | Steel | 3 2/5" | 1" | - | €92.95 | |
 |
1 B 300 Q | 30.35" | - | Cast Iron | 30" | 1" | - | €1,389.99 | |
 |
1 B 66 P | 6.95" | - | Steel | 6 3/5" | 1" | - | €169.15 | |
 |
1 B 36 P | 3.95" | - | Steel | 3 3/5" | 1" | - | €96.10 | |
 |
1 B 56 P | 5.95" | - | Steel | 5 3/5" | 1" | - | €135.49 | |
 |
1 B 80 P | 8.35" | - | Cast Iron | 8" | 1" | - | €199.91 | |
 |
1 B 94 P | 9 3/4" | Type L Arm, Spoke | Cast Iron | 9 2/5" | 1" | 1/2" to 1 3/4" | €218.40 |
