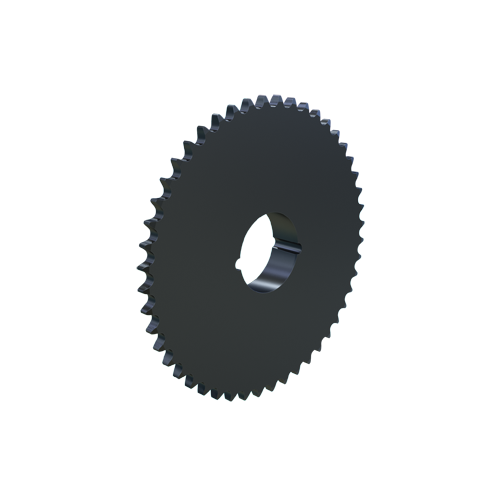

MARTIN SPROCKET 08BTB48 Roller Chain Sprocket, 48 Teeth, 194.180 mm Pitch Dia., 201.550 mm O.D., Steel
Item: BA7ELRModel: 08BTB48
7 In Stock
201.550 mm
Ships within 2 days via
€263.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 41.28 mm |
| Bushing Type | 1610 Taper |
| Chain Size | #08B-1 |
| Hub Dia. | 75 mm |
| Length Through Bore | 25.4 mm |
| Material | Steel |
| No. Of Teeth | 48 |
| Outside Dia. | 201.55 mm |
| Pitch | 12.7 mm |
| Pitch Dia. | 194.18 mm |
| Type | Type B Single Strand Stock Bore Welded |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 20.17 |
| Ship width (cm) | 20.17 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bushing Type | Bore Dia. | Material | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
08BTB76 | 307.32 mm | 76 | 50.8 mm | 90 mm | 2012 Taper | 50.8 mm | Steel | 12.7 mm | €363.94 | |
 |
08BTB40 | 161.87 mm | 40 | 25.4 mm | 75 mm | 1610 Taper | 41.28 mm | Steel | 12.7 mm | €246.00 | |
|
08BTB38 | 153.79 mm | 38 | 25.4 mm | 75 mm | 1610 Taper | 41.28 mm | Steel | 12.7 mm | €237.82 | |
 |
08BTB14H | 57.07 mm | 14 | 22.23 mm | 46 mm | 1008 Taper | 25.4 mm | Steel | 12.7 mm | €112.29 | |
 |
08BTB15H | 61.08 mm | 15 | 22.23 mm | 46 mm | 1008 Taper Lock | - | Steel | 12.7 mm | €114.57 | |
 |
08BTB21H | 85.21 mm | 21 | 25.4 mm | 70 mm | 1610 Taper | 41.28 mm | Steel | 12.7 mm | €154.98 | |
 |
08BTB22H | 89.24 mm | 22 | 25.4 mm | 70 mm | 1610 Taper | 41.28 mm | Steel | 12.7 mm | €167.68 |
