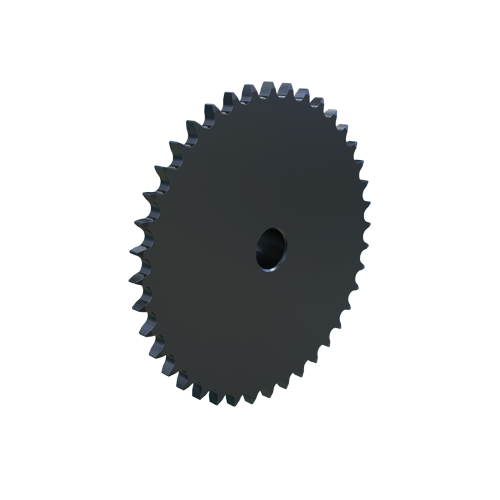

MARTIN SPROCKET 06B40 Roller Chain Sprocket, 06B-1 Chain, Stock Bore, 40 Teeth, 121.401 mm Pitch Dia., Steel
Item: AL6AHBModel: 06B40
7 In Stock
121.401"
Ships within 2 days via
€114.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 16 mm to 45 mm |
| Chain Size | #06B-1 |
| Hub Dia. | 70.002 mm |
| Length Through Bore | 30 mm |
| Material | Steel |
| No. Of Teeth | 40 |
| Outside Dia. | 126.957 mm |
| Pitch | 9.525 mm |
| Pitch Dia. | 121.401 mm |
| Product Datasheet | martin-sprocket-06a15.pdf |
| Type | Type B Single Strand Solid Stock Bore |
Shipping Info:
| Ship weight (kg) | 1.14 |
| Ship height (cm) | 3 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Material | Pitch | Chain Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
06B10 | 30.824 mm | 10 | 22 mm | 19.964 mm | 8 mm to 12.303 mm | Steel | 9.525 mm | #06B-1 | €43.63 | |
 |
06B14 | 42.805 mm | 14 | 25 mm | 30.988 mm | 10 mm to 16.272 mm | Steel | 9.525 mm | #06B-1 | €51.08 | |
 |
06B15 | 45.813 mm | 15 | 25 mm | 34.011 mm | 10 mm to 20.241 mm | Steel | 9.525 mm | #06B-1 | €62.29 | |
 |
06B25 | 75.997 mm | 25 | 27.991 mm | 56.998 mm | 12 mm | Steel | 9.525 mm | #06B-1 | €89.84 | |
 |
06B21 | 63.908 mm | 21 | 27.991 mm | 50.013 mm | 12 mm | Steel | 9.525 mm | #06B-1 | €69.45 | |
 |
06B8 | 24.89 mm | 8 | 22 mm | 13.005 mm | 8 mm to 9 mm | Steel | 9.525 mm | #06B-1 | €39.63 | |
 |
06B9 | 27.849 mm | 9 | 22 mm | 16.002 mm | 8 mm to 11 mm | Steel | 9.525 mm | #06B-1 | €40.99 |
