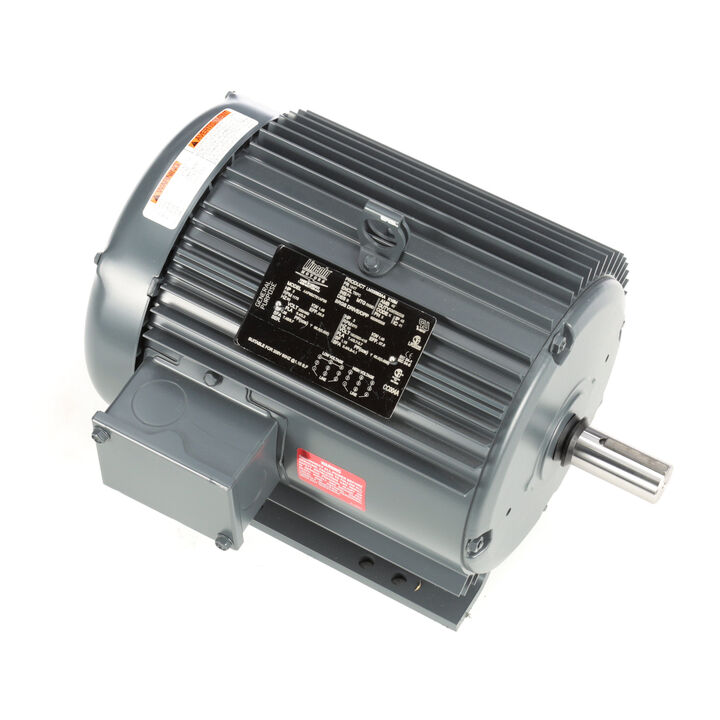

MARATHON MOTORS LM33563 AAF6B2T61AP26 General Purpose Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460/190/380-415V, 1200 and 1000 RPM
Get it by Thursday, Feb 26
€1,021.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 20.5A |
| Amps Rating | 3.2/6.4A |
| Application Type | General Purpose Ac Motors |
| Assembly/box Mounting | F1 Only |
| Code | K |
| Curvepoint | Locked Rotor |
| Design Code | B |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 88.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 184T |
| Frame Length | 9 1/2" |
| Frame Material | Aluminum |
| Frame Size | 184T |
| Frame Suffix | T |
| Frequency | 50/60 Hz |
| Full Load Amps | 6.4/3.2A |
| Height | 10.41" |
| Hp | 2 hp |
| Insulation Class | Class F |
| Ip Code | 43 |
| Kva Code | K |
| Kw | 1.5 kW |
| Length | 14 24/25" |
| Load | 1 |
| Material | Aluminum |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1200/1000 RPM |
| Nema Design | B, K |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.5 kW |
| Packaging | F |
| Phase | 3 |
| Power Factor | 66.5 |
| Resistance Main | 5.4 ohms |
| Rotation Type | Reversible |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Synchronous Rpm | 1200/1000 RPM |
| Thermal Protection | No Protection |
| Torque | 16.8 lbs.-ft. |
| Torque Rating | 9 lbs.-ft. |
| Torquepct | 187 |
| Type | Continuous Duty |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V AC |
| Voltage Rating | 230/460V AC |
| Width | 11.51" |
Shipping Info:
| Ship weight (kg) | 36 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - LM15651 / AAF6B2T61
- Eff 75%: 88
- Bearing OPE: 6205
- CC Number: CC004A
- Bearing PE: 6206
- Nameplate: 92117
- Winding: T8638
- GROUP: 3
- Paint: GRAY - GE
- S. F Amps: 7.45 / 3.7
- Eff 100%: 88.5 / 87.5
