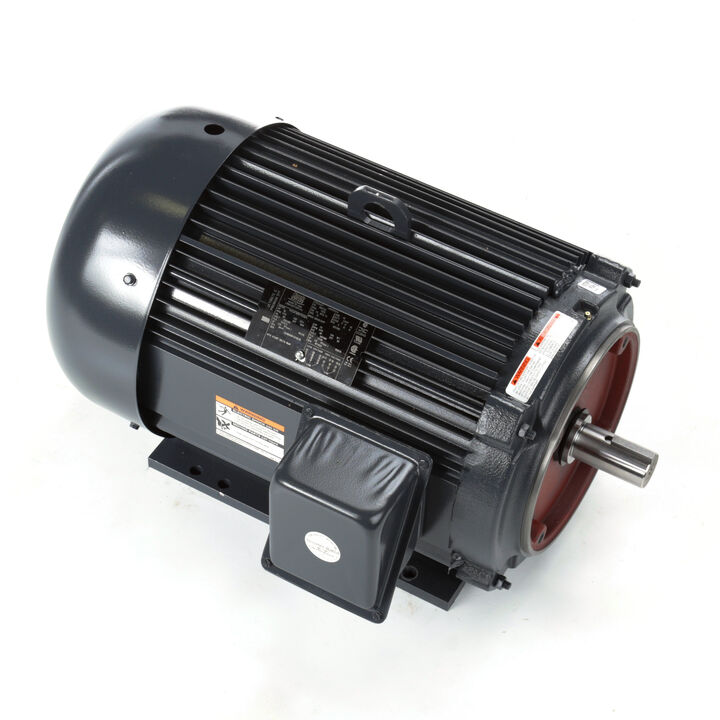

MARATHON MOTORS LM32842 AF4B30TSC61Y General Purpose Motor, 25 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Thursday, Feb 26
€5,404.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 75/37.5A |
| Assembly/box Mounting | F1, F2 Capable |
| Cc Number | CC004A |
| Code | G |
| Curvepoint | Full Load |
| Design Code | B |
| Drive End Bearing Size | 312 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 93.6% |
| Efficiency @ 100% | 93.6% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 286TSC |
| Frame Length | 15 1/4" |
| Frame Material | Aluminum |
| Frame Size | 286TSC |
| Frame Suffix | Tsc |
| Frequency | 50/60 Hz |
| Full Load Amps | 38/76A |
| Hazardous Location | Not Available |
| Hp | 30 hp |
| Insulation Class | Class F |
| Ip Code | 43 |
| Kw | 22.4 kW |
| Load | 0.5 |
| Lubrication | Standard |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B, G |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 209 |
| Opp. Drive End Bearing Type | Ball |
| Outline | XF5F1SC2-1525 |
| Output Kw | 18.7/22.4 kW |
| Overall Length | 26.63" |
| Packaging | B |
| Paint | Standard |
| Phase | 3 |
| Power Factor | 80 |
| Resistance Main | 0.2 ohms |
| Rotation Type | Reversible |
| Rpm | 1770/1470 RPM |
| Service Factor | 1.25 |
| Service Factor Amps | 43.5/87A |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 3 1/4" |
| Shaft Type | TS |
| Speed Range | Not Available |
| Starting Method | Wye Start Delta Run |
| Synchronous Rpm | 1800/1500 RPM |
| Thermal Protection | No Protection |
| Torque | 88.5 lbs.-ft. |
| Torquepct | 100 |
| Type | TFL |
| Voltage | 230/460V |
| Winding | L2864020 |
Shipping Info:
| Ship weight (kg) | 194.4 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| Country of Origin | US |
Product Details:
- Eff 75%: 94.1
- Bearing OPE: 209
- CC Number: CC004A
- Bearing PE: 312
- Nameplate: 3B451
- Winding: L2864020
- GROUP: 1
- Paint: VERIFY
- S. F Amps: 94 / 47
- Eff 100%: 93.6 / 93
