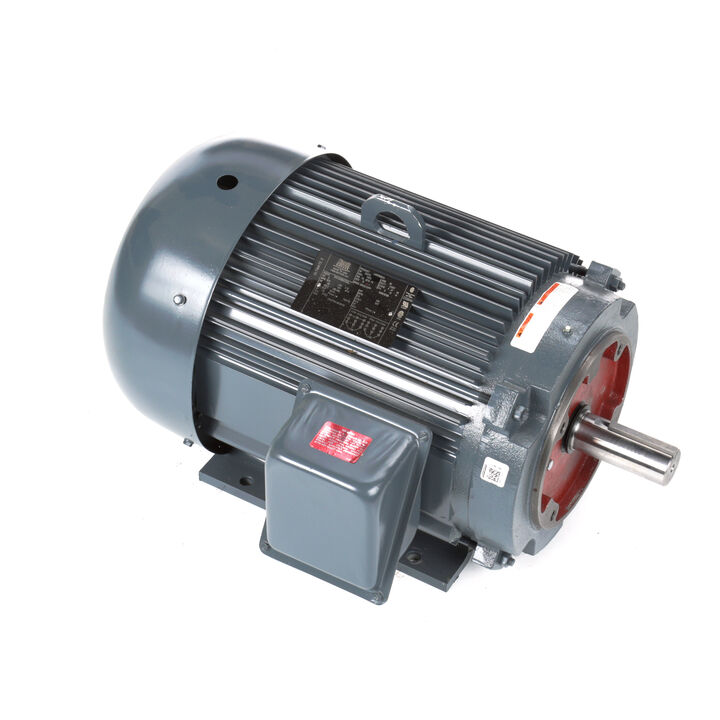

MARATHON MOTORS LM32836 AF8B5TC61 General Purpose Motor, 5 HP, 3 Phase, 60 Hz, 230/460V, 900 RPM
Get it by Tuesday, Sep 1
€2,518.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 7.5A |
| Assembly/box Mounting | F1 Only |
| Code | F |
| Curvepoint | Full Load |
| Design Code | B |
| Drive End Bearing Size | 6309 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 0% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Footnotes | A, US |
| Frame | 254TC |
| Frame Length | 12" |
| Frame Material | Aluminum |
| Frame Size | 254TC |
| Frame Suffix | Tc |
| Frequency | 60 Hz |
| Full Load Amps | 15/7.5A |
| Hp | 5 hp |
| Insulation Class | Class F |
| Inverter Load Ratio | 10:1 |
| Inverter Load Type | Variable |
| Ip Code | 43 |
| Kva Code | F |
| Kw | 3.7 kW |
| Load | 0 |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Speed | 900 RPM |
| Nema Design | B, F |
| No. Of Poles | 8 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6208 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 3.7 kW |
| Overall Length | 24" |
| Packaging | B |
| Phase | 3 |
| Power Factor | 73 |
| Resistance Main | 2.65 ohms |
| Rotation Type | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4" |
| Shaft Type | T |
| Speed | 875 RPM |
| Starting Method | Line Or Inverter |
| Synchronous Speed | 900 RPM |
| Thermal Protection | No Protection |
| Torque | 30 lbs.-ft. |
| Torquepct | 100 |
| Type | TFL |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 109.8 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| Country of Origin | US |
Product Details:
- Eff 100%: 87.5
- Eff 75%: 87.5
- Bearing OPE: 6208
- CC Number: CC004A
- Bearing PE: 6309
- Nameplate: 92117-A-X-BCDLM-A-A-X
- Winding: K254828
- GROUP: 1
- Paint: GRAY - LINCOLN
- S. F Amps: 17 / 8.5
