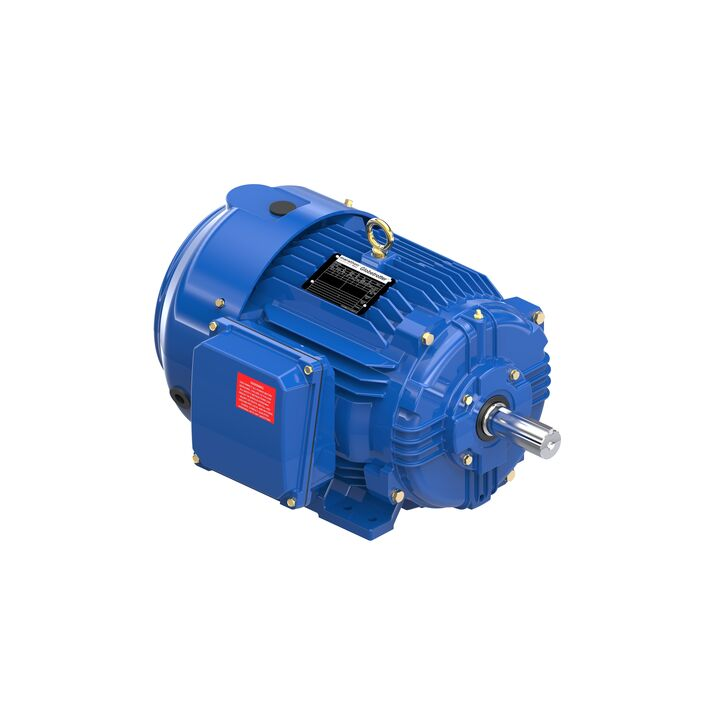

MARATHON MOTORS 213TTFCD6531 General Purpose Motor, Totally Enclosed Fan-Cooled, Rigid Base Mount, 7 1/2 HP, Ball | CT2FTC 491J81

MARATHON MOTORS 213TTFCD6531 E476B / 213TTFCD6531CC Severe Duty Motor, 7.50 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Item: CT2FTCModel: 213TTFCD6531Cross Ref: 491J81 / E476B / 213TTFCD6531CC
Check Availability
In Stock

Get it by Friday, Dec 26

€2,083.46 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 40°C
Amps 9.5/19A
Bearing Type Ball
Duty Continuous
Duty Cycle Continuous
Efficiency 91.7%
Enclosure Type Tefc
Frame 213T
Frame Material Cast Iron
Frequency 60 Hz
Full Load Amps 19/9.5A
Height 12.73"
Hp 7 1/2 hp
Insulation Class Class H
Inverter Rated Yes
Ip Rating IP55
Length 18.53"
Length Less Shaft 15 1/8"
Material Cast Iron
Motor Application General Application
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Cast Iron
Motor Mounting Position Horizontal
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Type Three Phase
Mounting Type Rigid Base
Nema Design B
No. Of Poles 4
No. Of Speeds 1
Nominal Efficiency 91.7%
Number Of Speeds 1
Overall Length 18 1/2"
Phase 3
Rotation Reversible
Rpm 1768 RPM
Rpm Range 1700-1800 RPM
Service Factor 1.15
Shaft Dia. 1 3/8"
Shaft Length 3 3/8"
Special Features Severe Duty Motors
Temperature Rating 40°C
Thermal Protection None
Type Squirrel Cage Inverter Rated
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V
Width 15.27"

Shipping Info:

Ship weight (kg) 88.65
Ship height (cm)36.53
Ship length (cm)67.31
Ship width (cm)45.72
Country of OriginMX

Product Variants

ProductModelHpFull Load AmpsService FactorVoltageMounting TypeNameplate RpmFrequencyFramePrice
MARATHON MOTORS 056T34D15599 General Purpose Motor, Open Dripproof, Rigid Base Mount, 1 1/2 HP, 230/460 VAC, Ball | CT2FQK 40LM08 056T34D155991 1/2 hp4.2/2.1A1.15230/460V ACRigid Base3450 RPM-56€571.04
MARATHON MOTORS 184TTDBD6101 General Purpose Motor, Open Dripproof, Rigid Base Mount, 1 1/2 HP, 865 Nameplate RPM | CT2FQL 61KJ17 184TTDBD61011 1/2 hp, 1 hp2.8A1.15190/230/380/460VRigid Base865 RPM50/60 Hz184T€1,616.73
MARATHON MOTORS 056T17DRR70021A1 General Purpose Motor, Open Dripproof, Rigid Base Mount, 1/2 HP, 1725 Nameplate RPM | CT2FQR 54JH48 056T17DRR70021A11/2 hp1.7-1.8/0.9A1.25208-230/460V ACRigid Base1725 RPM-56€632.15
MARATHON MOTORS 256TTDBD6076 General Purpose Motor, Open Dripproof, Rigid Base Mount, 10 HP, 1182 Nameplate RPM | CT2FQW 454X52 256TTDBD607610 hp25.6/12.8A1.15230/460V ACRigid Base1182 RPM-256T€3,605.92
MARATHON MOTORS 365TSTDBD6001 General Purpose Motor, Open Dripproof, Rigid Base Mount, 100 HP, 3568 Nameplate RPM | CT2FQX 454X75 365TSTDBD6001100 hp228/114A1.15230/460V ACRigid Base3568 RPM-365TS€7,605.33
MARATHON MOTORS 286TTDBD6076 General Purpose Motor, Open Dripproof, Rigid Base Mount, 20 HP, 1182 Nameplate RPM | CT2FQZ 454X56 286TTDBD607620 hp52.5/26.3A1.15230/460V ACRigid Base1182 RPM-286T€4,530.75
MARATHON MOTORS 254TTDBD6001 General Purpose Motor, Open Dripproof, Rigid Base Mount, 20 HP, 3552 Nameplate RPM | CT2FRA 454X54 254TTDBD600120 hp48/24A1.15230/460V ACRigid Base3552 RPM-254T€3,211.89
