MARATHON MOTORS 286TTDBD6076 GT0063 / 286TTDBD6076BB General Purpose Motor, 20/15 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1200 RPM
Item: CT2FQZModel: 286TTDBD6076Cross Ref: 454X56 / GT0063 / 286TTDBD6076BB
In Stock
Get it by Wednesday, Jul 8
€3,624.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 92.5% |
| Frame | 286T |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 52.5/26.3A |
| Hp | 20 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 22 5/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1182 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 92.5% |
| Overall Length | 27 1/16" |
| Service Factor | 1.15 |
| Shaft Dia. | 1 7/8" |
| Shaft Length | 4 13/16" |
| Speed | 1101-1200 RPM |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 162.73 |
| Ship height (cm) | 71.48 |
| Ship length (cm) | 80.7 |
| Ship width (cm) | 71.2 |
| HS code | 8501528040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Full Load Amps | Voltage | Hp | Service Factor | Frequency | Mounting Type | Frame | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
184TTDBD6101 | 2.8A | 190/230/380/460V | 1 1/2 hp, 1 hp | 1.15 | 60 Hz | Rigid Base | 184T | Rolled Steel | €1,616.73 | |
 |
256TTDBD6076 | 25.6/12.8A | 230/460V AC | 10 hp | 1.15 | 60 Hz | Rigid Base | 256T | Steel | €2,884.73 | |
 |
365TSTDBD6001 | 228/114A | 230/460V AC | 100 hp | 1.15 | 60 Hz | Rigid Base | 365TS | Steel | €6,084.26 | |
 |
254TTDBD6001 | 48/24A | 230/460V AC | 20 hp | 1.15 | 60 Hz | Rigid Base | 254T | Steel | €3,211.89 | |
 |
324TTDBD6076 | 65/32.5A | 230/460V AC | 25 hp | 1.15 | 60 Hz | Rigid Base | 324T | Steel | €4,053.38 | |
|
256TTDBD6001 | 59.5/29.7A | 230/460V AC | 25 hp | 1.15 | 60 Hz | Rigid Base | 256T | Steel | €2,268.70 | |
 |

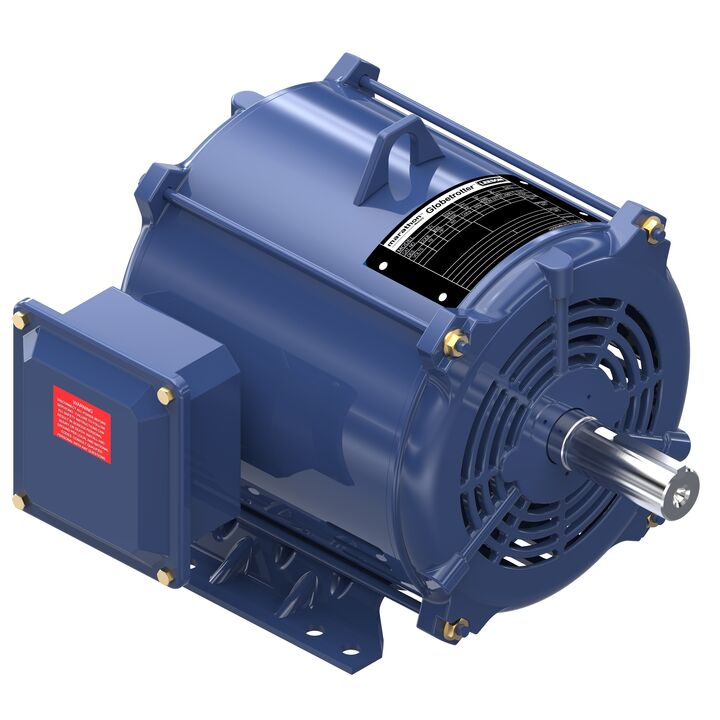

184TTDBD6039 | 6.6A | 200V | 5 hp | 1.15 | 60 Hz | Rigid Base | 184T | Steel | €971.43 |
