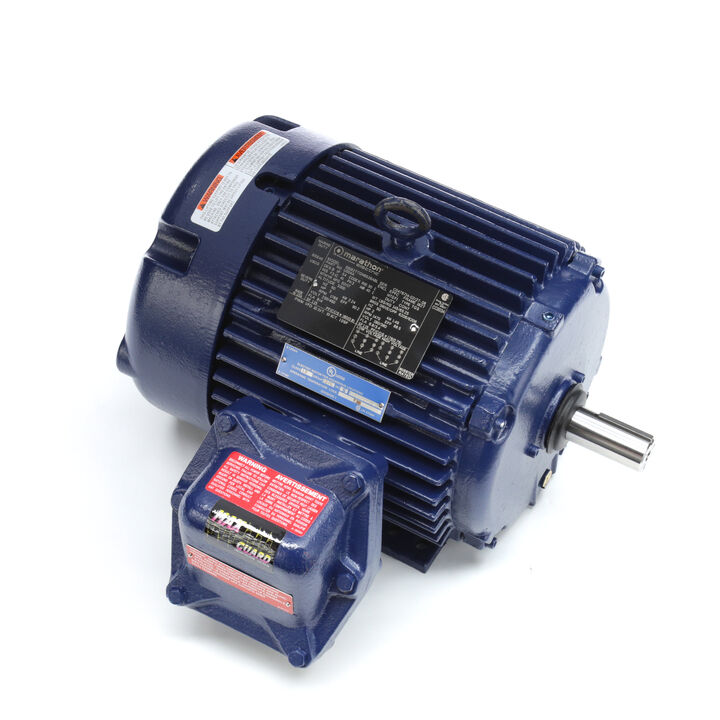

MARATHON MOTORS 182TTGCD6541 U004B-P / 182TTGCD6541AA Explosion Proof Motor, 3/2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380 V, 1800 and 1500 RPM
Item: CT2FVRModel: 182TTGCD6541Cross Ref: 39W948 / U004B-P / 182TTGCD6541AA
In Stock
Get it by Friday, Aug 28
€1,708.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient Temp. | 104°F , 50°C |
| Amps | 3.4/4/6.8/8A |
| Assembly/box Mounting | F1 |
| Bearing Type | Ball |
| Bearings | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Design Code | B |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty | Continuous Duty |
| Duty Cycle | Continuous |
| Efficiency | 89.5%, 85.5% |
| Electrical Type | Squirrel Cage Inverter Rated |
| Enclosure Type | EPFC |
| Frame | 182T |
| Frame Material | Cast Iron |
| Frame Size | 182T |
| Frequency | 50/60 Hz , 60 Hz |
| Full Load Amps | 8/4A |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 3 hp, 3 hp, 2 hp |
| Included | (11) 8" Leads Through 3/4" NPT Nipple |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Load | 1 |
| Ip Rating | IP54 |
| Kva Code | K |
| Length Less Shaft | 13" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1765 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 90.2% |
| Opp Drive End Bearing | Ball |
| Opp Drive End Bearing Size | 6206 |
| Output Kw | 2.2/1.5 kW |
| Overall Length | 15 7/8" |
| Phase | 3 |
| Power Factor | 78 |
| Resistance | 4.15 ohms |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 1.125" |
| Shaft Length | 2 7/8" |
| Shaft Type | T |
| Speed | 1762/1468 RPM |
| Starting Method | Line, Inverter |
| Temp. Code | T3B |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 190/230/380/460V |
Shipping Info:
| Ship weight (kg) | 66.6 |
| Ship height (cm) | 40.64 |
| Ship length (cm) | 66.04 |
| Ship width (cm) | 50.8 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Phase | Hp | Frequency | Full Load Amps | Mounting Type | Service Factor | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
286TTGCD16577 | - | - | - | - | - | - | - | - | €7,338.25 | |
 |

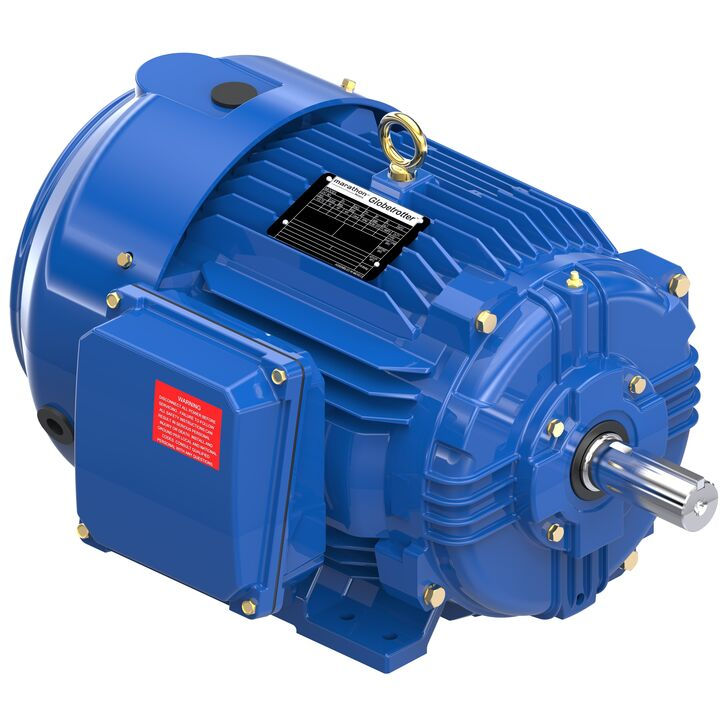

215TTFCD6527 | 230/460V AC | 3 | 10 hp | 60 Hz | 25/12.5A | Rigid Base | 1.15 | Three Phase | €2,477.71 | |
 |

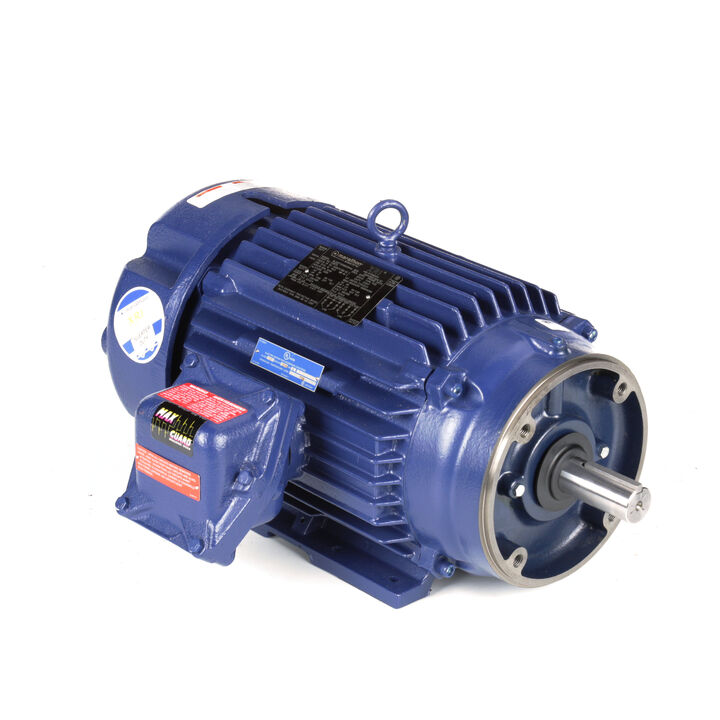

215TTGCD6528 | 190/230/380/460V | 3 | 10 hp, 10 hp, 7 1/2 hp | 60 Hz | 26.6/13.3A | Rigid Base | 1 | Three Phase | €2,674.84 | |
 |

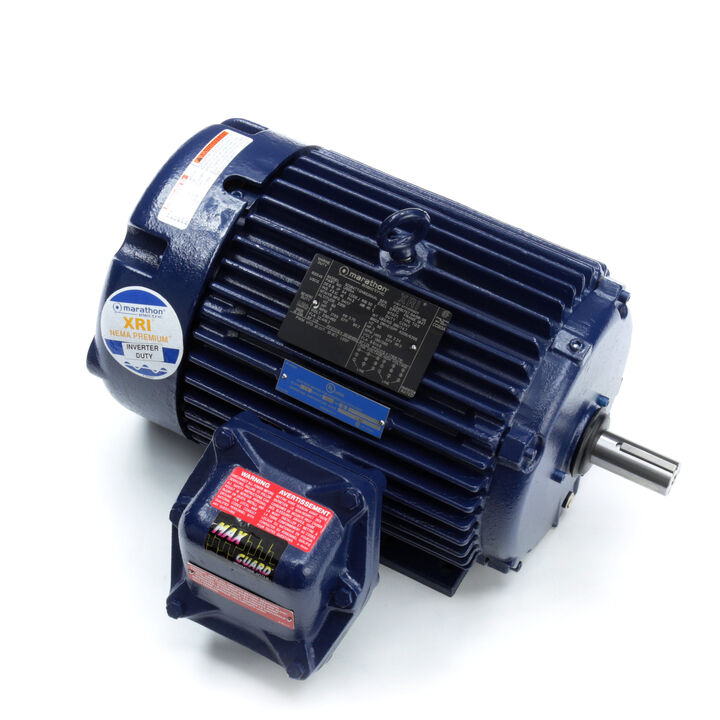

184TTGCD6544 | 230/460V AC | 3 | 5 hp | 60 Hz | 12.4/6.2A | Rigid Base | 1.15 | Three Phase | €1,832.29 | |
 |

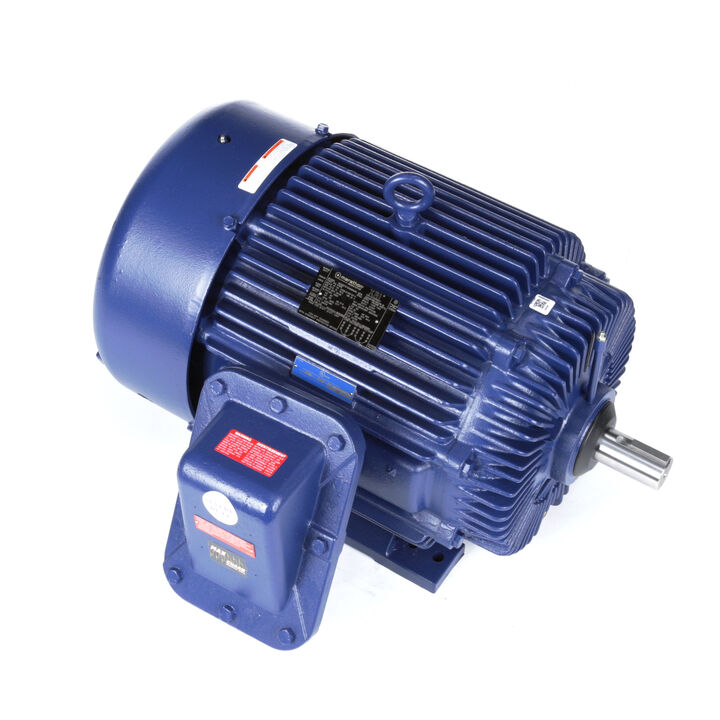

326TSTGS6501 | 230/460V AC | 3 | 50 hp | 60 Hz | 118/59A | Rigid Base | 1.15 | Three Phase | €9,379.29 | |
 |

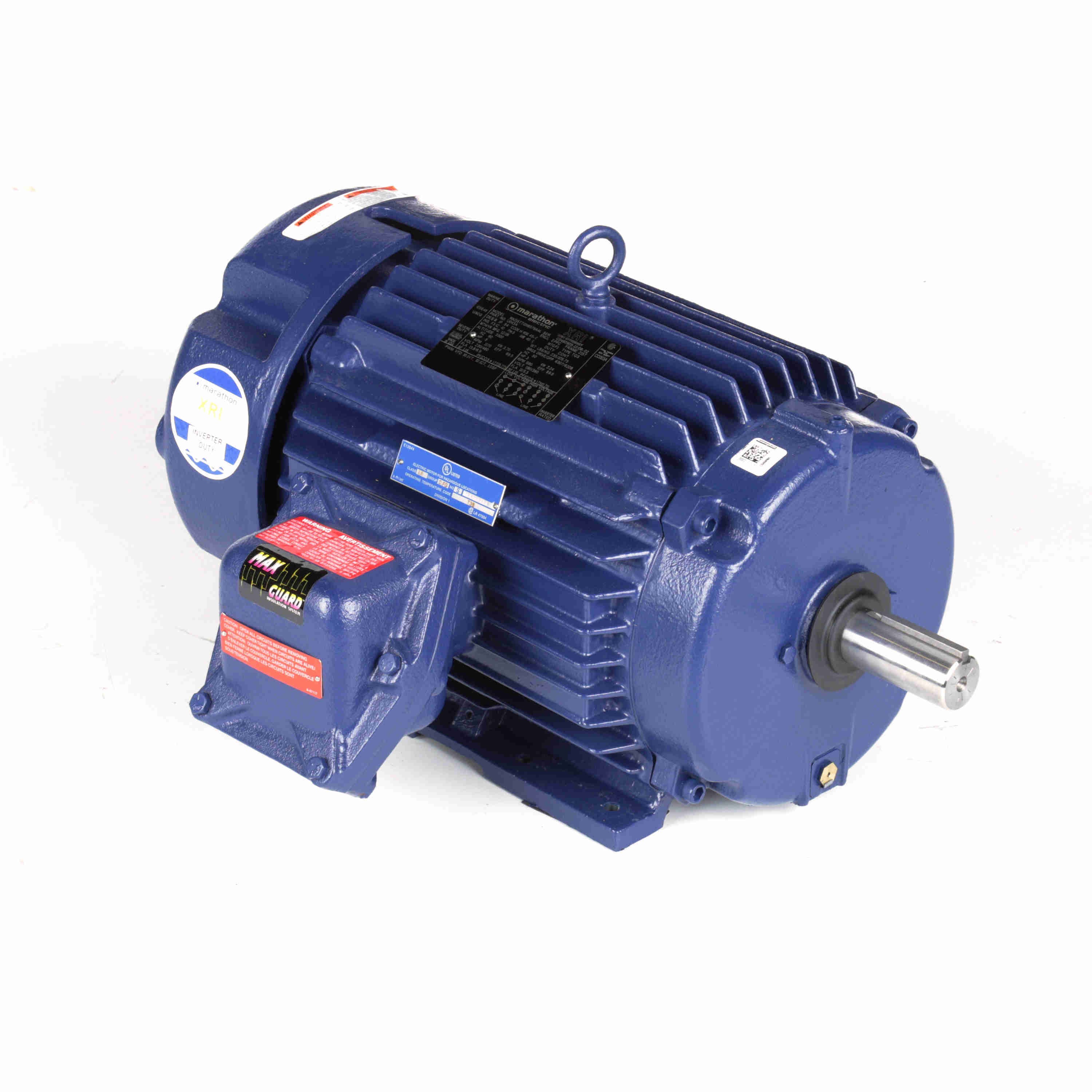

215TTGND6576 | 230/460V AC | 3 | 5 hp | 60 Hz | 13.8/6.9A | Rigid Base | 1.15 | Three Phase | €2,519.34 | |
 |

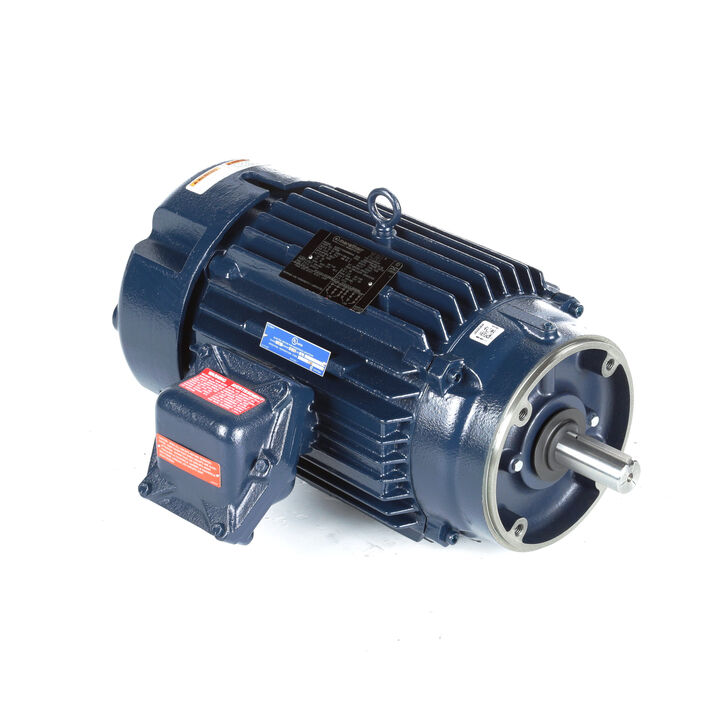

254TTGCD16034 | 190/230/380/460V | 3 | 15 hp, 10 hp | 50/60 Hz | - | Round | 1 | Three Phase | €4,843.53 |
