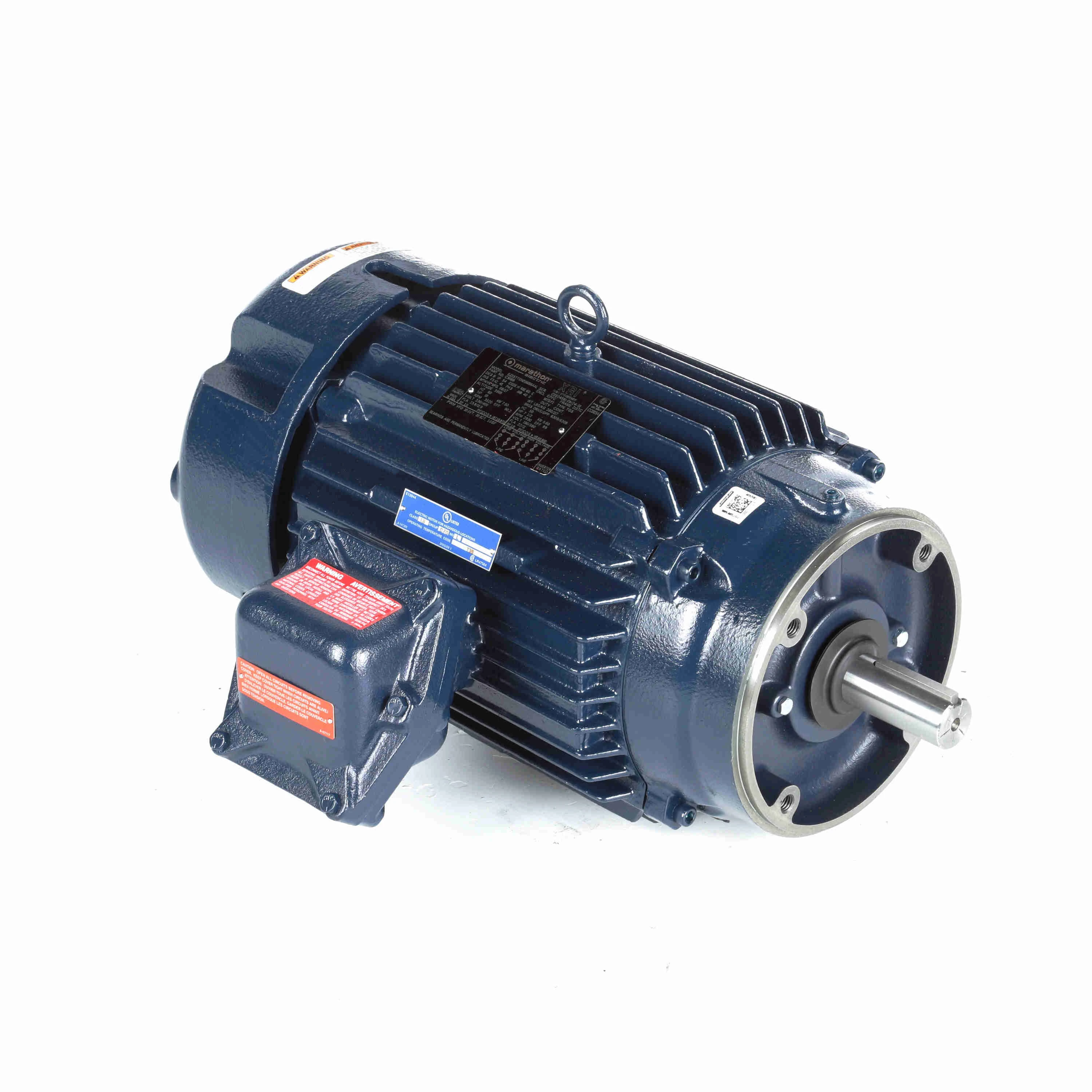

MARATHON MOTORS 254TTGCD16034 C327C / 254TTGCD16034AA Explosion Proof Motor, 15/10 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380 V, 1800 RPM
Item: CT2FVYModel: 254TTGCD16034Cross Ref: 61KJ23 / C327C / 254TTGCD16034AA
In Stock
Get it by Wednesday, Dec 24
10.00% off
€5,210.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient Temp. | 140°F |
| Ambient Temperature | 50°C |
| Amps | 15.4/18.8/31/37.5A |
| Assembly/box Mounting | F1 |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Design Code | B |
| Drive End Bearing Size | 6309 |
| Drive End Bearing Type | Ball |
| Duty | Continuous Duty |
| Duty Cycle | Continuous |
| Efficiency | 92.4%, 92.5% |
| Electrical Type | Squirrel Cage Inverter Rated |
| Enclosure Type | EPFC |
| Frame | 254TC |
| Frame Material | Cast Iron |
| Frame Size | 254TC |
| Frequency | 50/60 Hz |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1C, D/2F, G |
| Hp | 15 hp, 10 hp |
| Insulation Class | Class F |
| Inverter Load | 1 |
| Ip Rating | IP54 |
| Kva Code | G |
| Motor Application | Hazardous Location |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Vertical |
| Motor Orientation | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Round |
| Nameplate Rpm | 1772 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing | Ball |
| Opp Drive End Bearing Size | 6210 |
| Output Kw | 11.2/7.5 kW |
| Overall Length | 25 3/4" |
| Phase | 3 |
| Power Factor | 82 |
| Resistance | 0.61 ohms |
| Rotation | Reversible |
| Rpm | 1772/1475 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1.625" |
| Shaft Type | T |
| Starting Method | Line, Inverter |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 190/230/380/460V |
Shipping Info:
| Ship weight (kg) | 190.8 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 88.9 |
| Ship width (cm) | 76.2 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Phase | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Service Factor | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

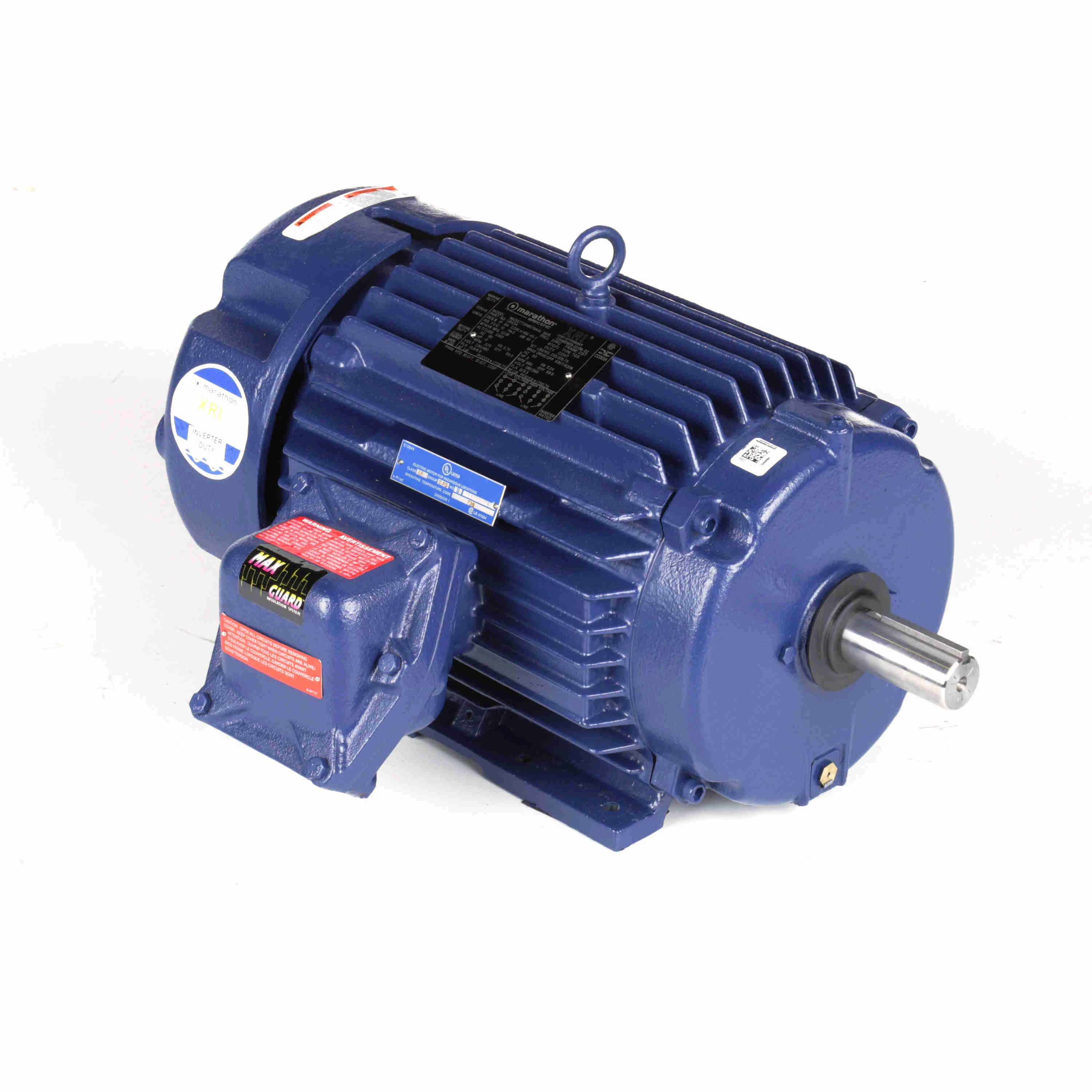

286TTGCD16577 | - | - | - | - | - | - | - | - | €7,338.25 | |
 |

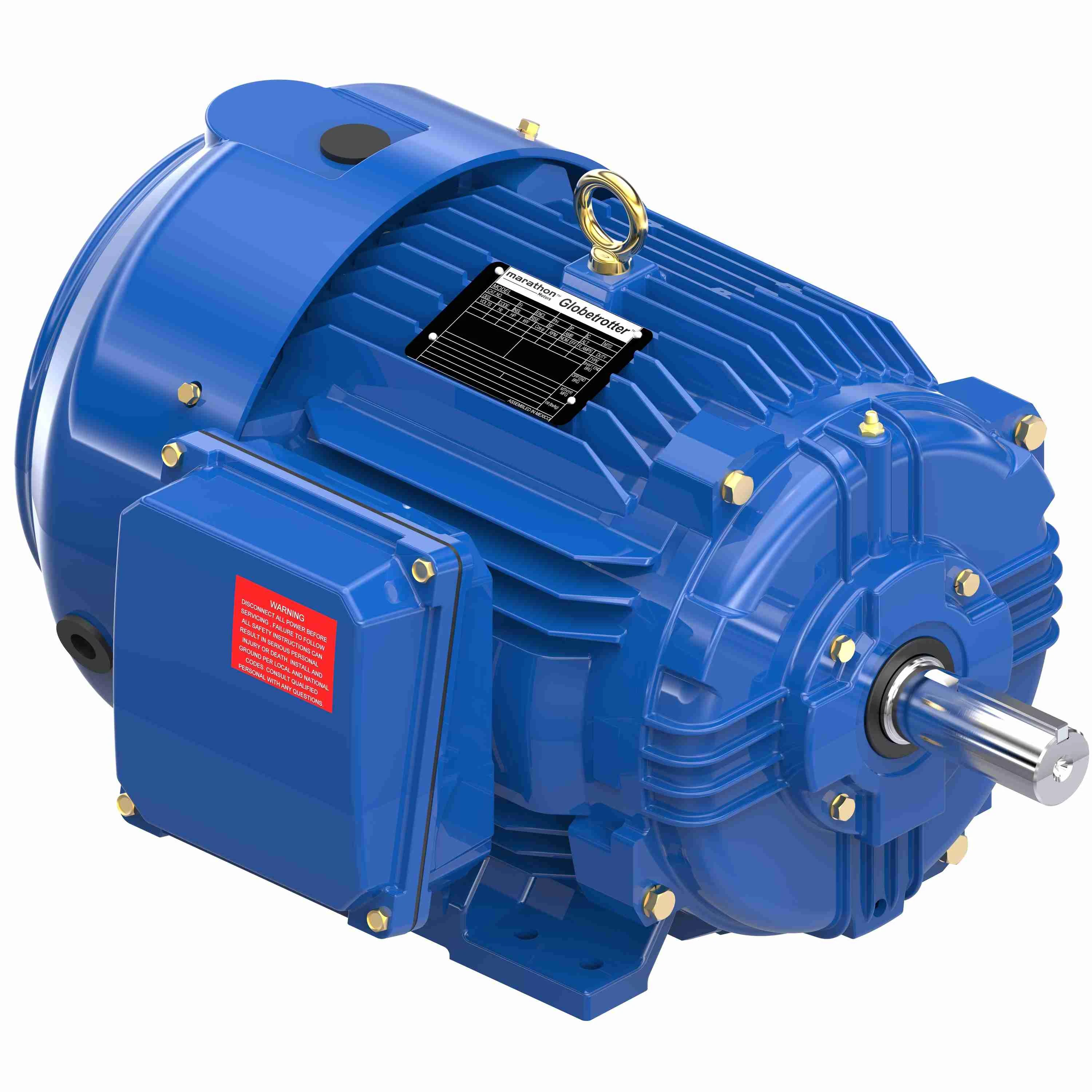

215TTFCD6527 | 230/460V AC | 3 | 1762 RPM | 10 hp | 25/12.5A | Rigid Base | 1.15 | Three Phase | €2,477.71 | |
 |
056T17G15612 | 230/460V AC | 3 | 1725 RPM | 1 hp | 3.2/1.6A | Face/Base | 1 | Three Phase | €1,148.28 | |
 |

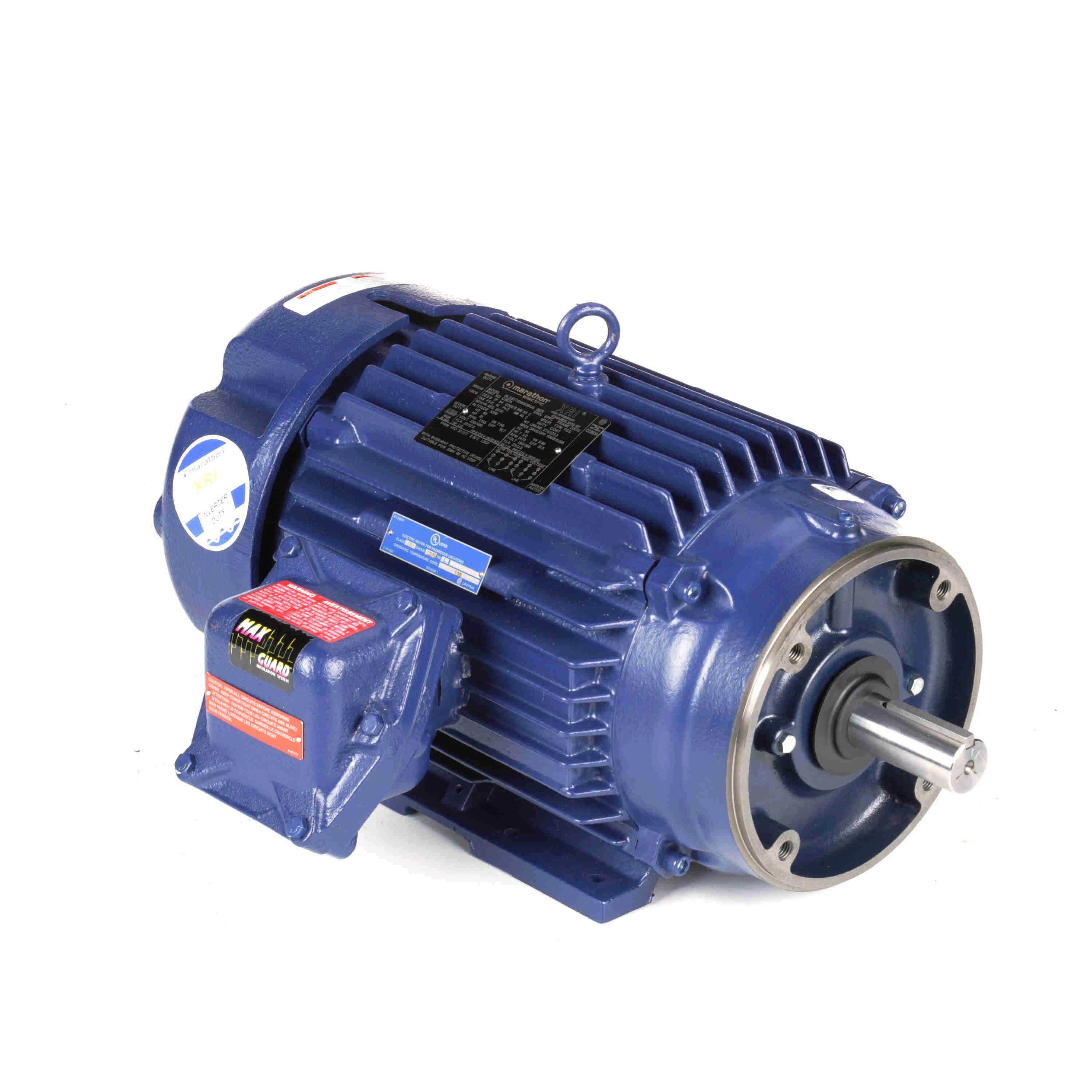

215TTGCD6528 | 190/230/380/460V | 3 | 1765 RPM | 10 hp, 10 hp, 7 1/2 hp | 26.6/13.3A | Rigid Base | 1 | Three Phase | €2,909.41 | |
 |

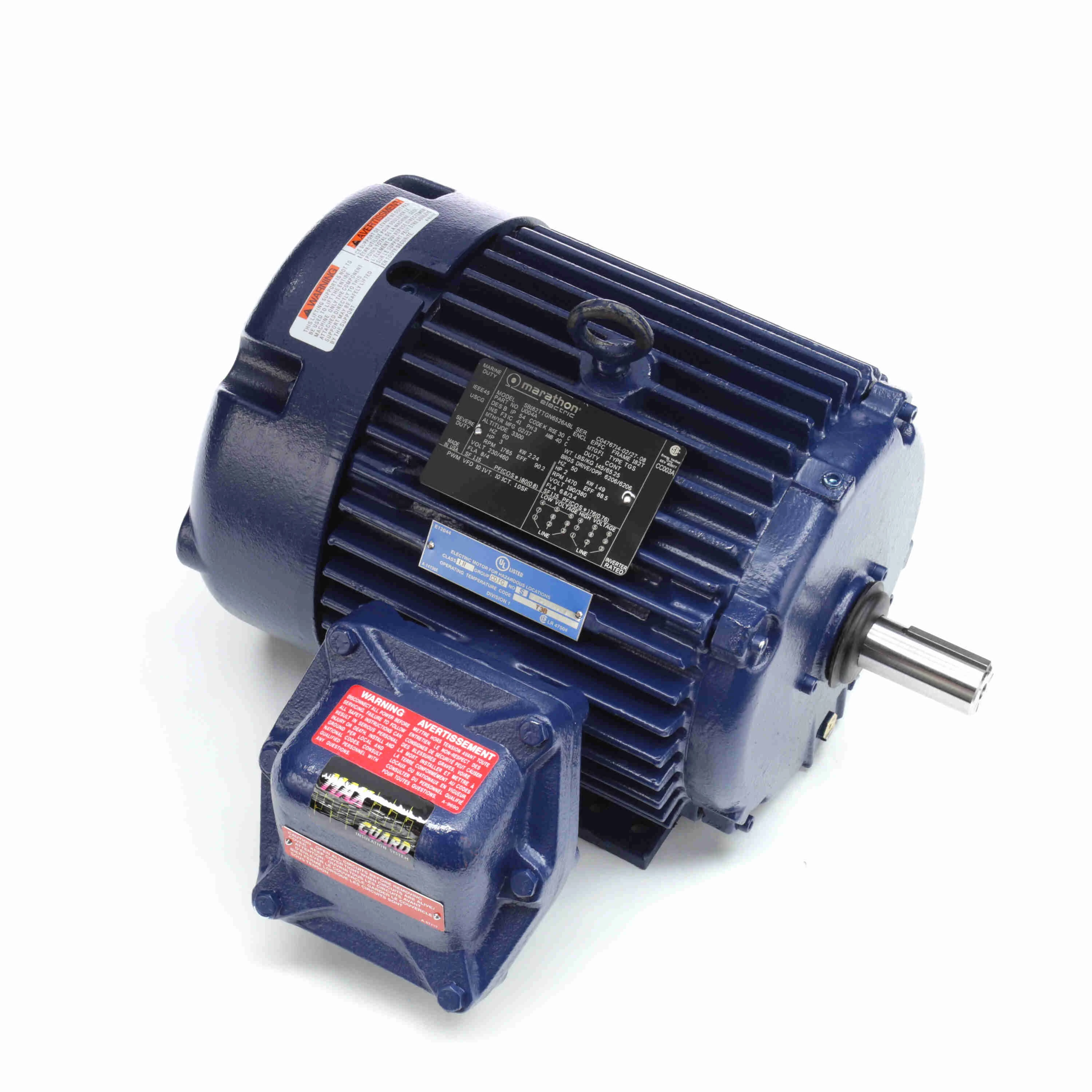

182TTGCD6541 | 190/230/380/460V | 3 | 1765 RPM | 3 hp, 3 hp, 2 hp | 8/4A | Rigid Base | 1 | Three Phase | €1,781.17 | |
 |

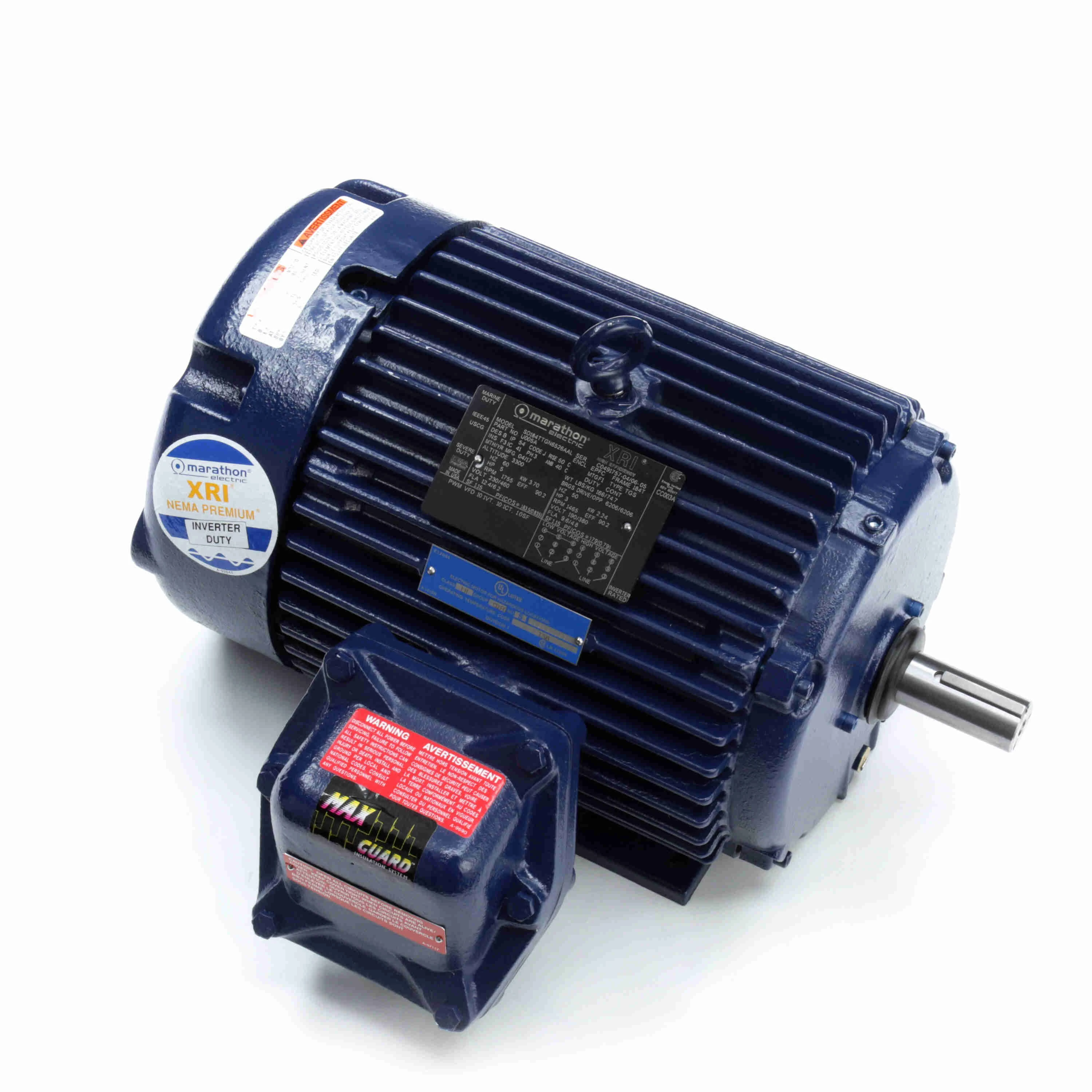

184TTGCD6544 | 230/460V AC | 3 | 1755 RPM | 5 hp | 12.4/6.2A | Rigid Base | 1.15 | Three Phase | €1,832.29 | |
 |

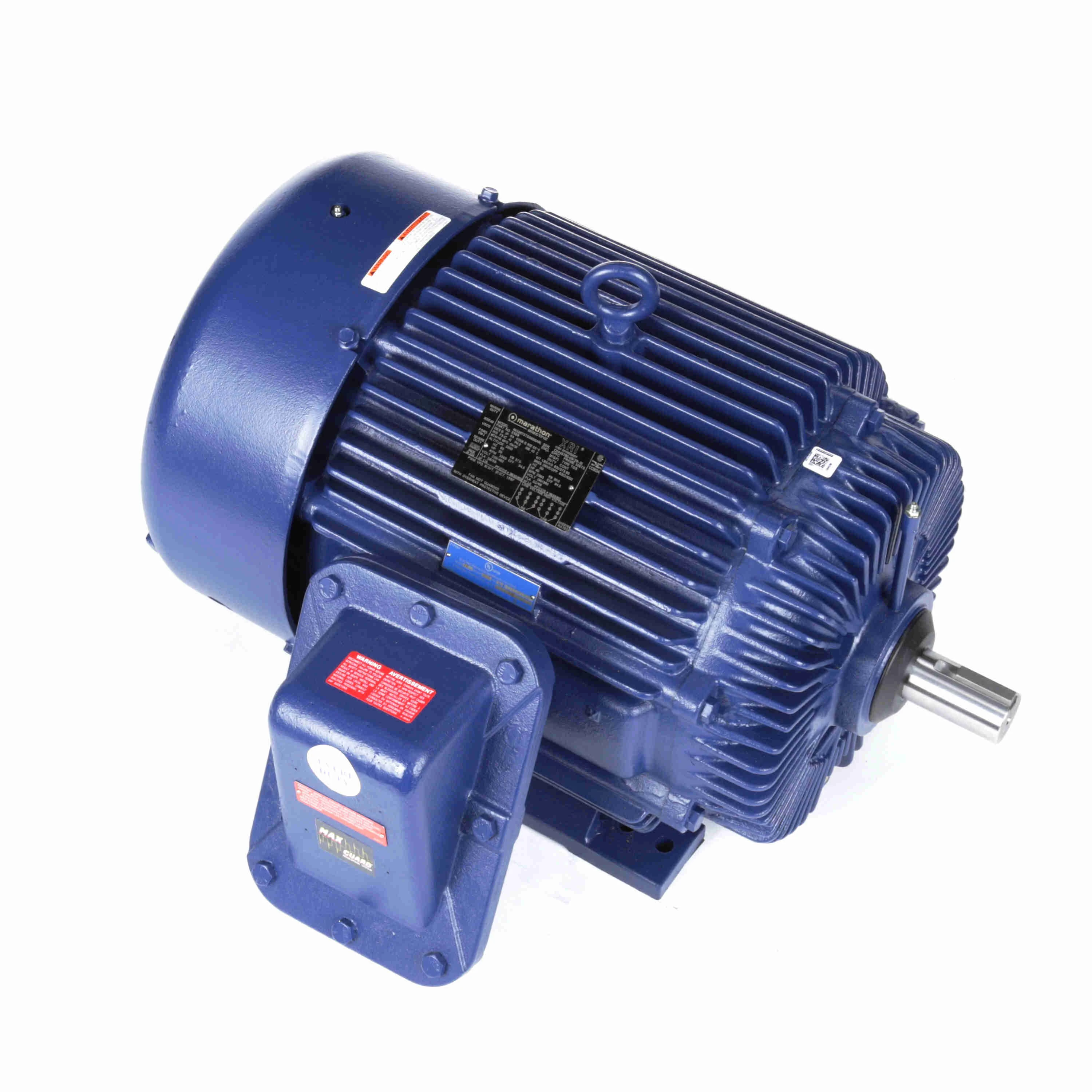

326TSTGS6501 | 230/460V AC | 3 | 3555 RPM | 50 hp | 118/59A | Rigid Base | 1.15 | Three Phase | €12,134.84 |
