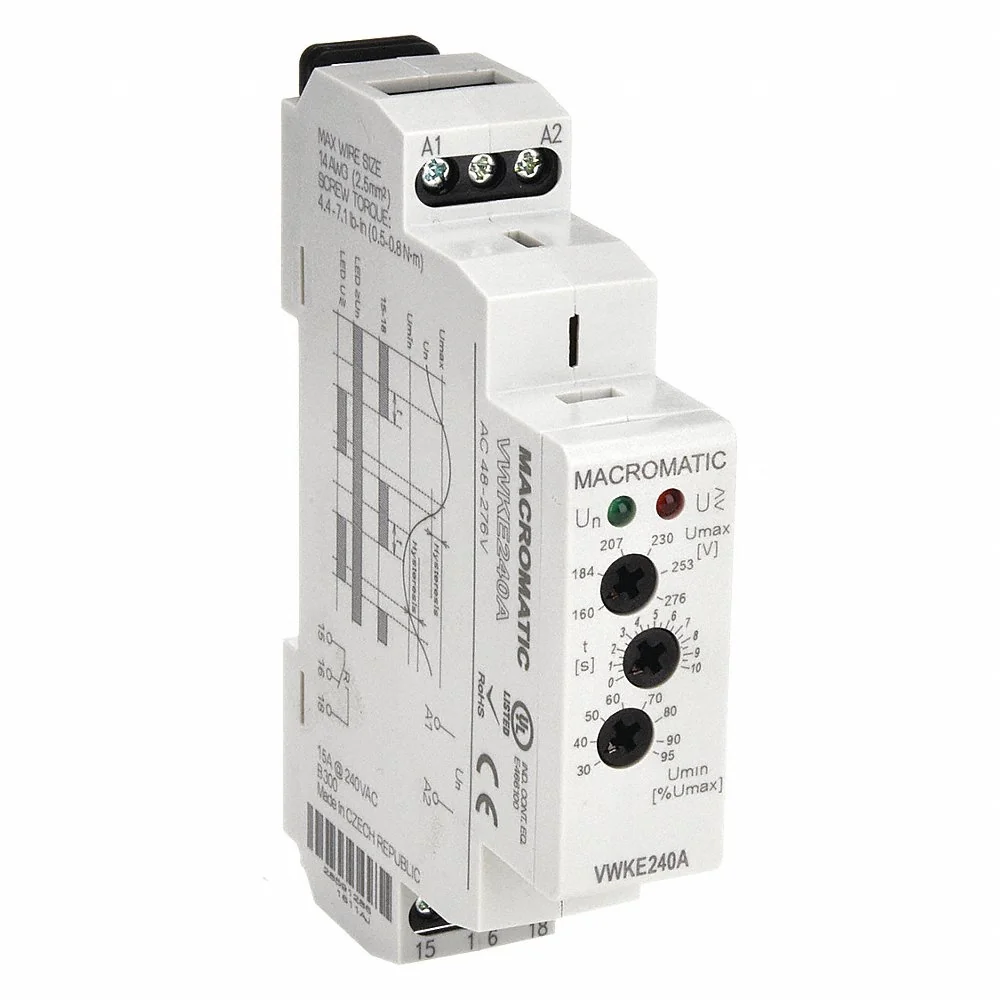

MACROMATIC VWKE240A Voltage Sensing Relay, 3VA, 1.7 Watt, -40 to 85 Deg C
Item: AF7YULModel: VWKE240ACross Ref: 23NV47
7 In Stock
Ships within 2 days via
5.00% off
€102.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Voltage Monitor Relay |
| Amps | 15A |
| Amps Supported | 15A |
| Amps Unbalance Detect | No |
| Base Shape | Square |
| Base Type | DIN Rail |
| Body Depth | 2 13/25" |
| Body Height | 3.55" |
| Body Width | 0.69" |
| Body Width-relay | 3.54" |
| Configuration/contact Rating | SPDT. 15A @ 240V AC, B300 |
| Contact Failure Detect | No |
| Contact Form | SPDT |
| Contact Rating (ac) | 15A @ 240V |
| Contact Rating (dc) | 15A @ 24V |
| Drop Out Voltage Setting | Adjustable % Of Pick-Up Voltage Setting |
| Drop-out Range | 30% to 95% |
| Electrical Connection Type | Screw |
| Electrical Operating Durability | 70000 |
| Flat Pin Width | Not Applicable |
| Frequency | 50/60 Hz |
| Function | Voltage Band Relay |
| Gross Weight | 0.165 lbs. |
| High Power Over Voltage Trip | Yes |
| Input Voltage | 240V AC |
| Ip Rating | IP40 |
| Lo Hp Trip Detect | No |
| Lo Kw Trip Detect | No |
| Lo Pwr (under Vltg) Trip | Yes |
| Manual Reset | No |
| Max. Operating Temp. | 158°F |
| Mechanical Operating Durability | 10000000 |
| Monitored Parameters | Voltage Band |
| Mounting | DIN Rail |
| Mounting Style | DIN Rail |
| Mounting-relay | DIN Rail |
| No. Of Contacts | 1 |
| No. Of Pins | 5 |
| No. Of Pins-relay | 5 |
| No. Of Pins/terminals | 5 |
| Number Of Contacts | 1 |
| Output Contacts | 15A @ 240V AC, B300 |
| Output Relay | SPDT |
| Over Amps | No |
| Overall Depth | 3.55" |
| Overall Height-relay | 2 13/25" |
| Phase | 1 |
| Phase Loss Detect | No |
| Phase Rvrse/rotatn Detect | No |
| Pick Up | 160-276V AC |
| Power | 2 VA |
| Power Consumption | 1.7 W/3 VA |
| Rapid Cycling Detect | No |
| Relay Mounting Style | DIN Rail |
| Resistive Contact Amp Rating | 16A |
| Trip Delay | 0.1 sec. to 10 sec. |
| Trip Delay (sec.) | 0.1 a 10 |
| Type Of Display | LED Status Indicator |
| Under Amps Detect | No |
| Var Restart Delay | No |
| Variable Point Trip | No |
| Voltage Supported | 240V |
| Voltage Unbalance Detect | No |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 9.02 |
| Ship length (cm) | 6.4 |
| Ship width (cm) | 1.75 |
| HS code | 8536490075 |
| Country of Origin | CZ |
Product Details:
- Drop-Out Range (30 to 99%)
- Pick Up Range (160-276VCA)
