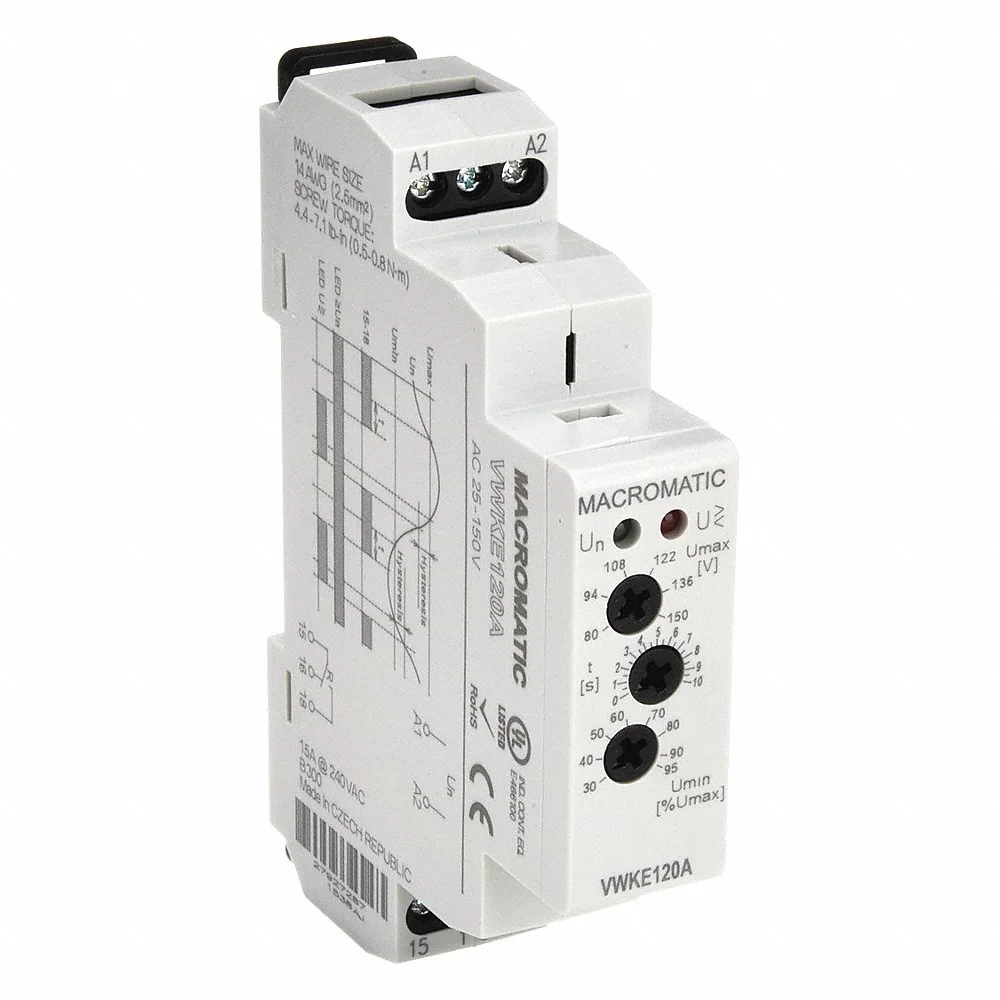

MACROMATIC VWKE120A Voltage Sensing Relay, 3VA, 1.7 Watt, -40 to 85 Deg C
Item: AF7YUKModel: VWKE120ACross Ref: 23NV46
7 In Stock
Ships within 2 days via
10.00% off
€65.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Voltage Sensing Relay |
| Amps Rating | 15A |
| Base Shape | Square |
| Base Type | DIN Rail |
| Body Depth | 2 13/25" |
| Body Height | 3.55" |
| Body Width | 0.69" |
| Body Width - Relay | 3.54" |
| Contact Form | SPDT |
| Contact Rating (ac) | 15A @ 240V |
| Contact Rating (dc) | 15A @ 24V |
| Current Rating | 15A |
| Drop Out Voltage Setting | Adjustable % Of Pick-Up Voltage Setting |
| Drop-out Range | 30% to 95% |
| Electrical Connection Type | Screw |
| Electrical Operating Durability | 70000 |
| Flat Pin Width | Not Applicable |
| Frequency | 50/60 Hz |
| Function | Voltage Band Relay |
| Input Voltage | 120V AC |
| Ip Rating | IP40 |
| Mechanical Operating Durability | 10000000 |
| Monitored Parameters | Voltage Band |
| Number Of Contacts | 1 |
| Number Of Pins | 5 |
| Number Of Pins - Relay | 5 |
| Number Of Pins/terminals | 5 |
| Overall Depth | 3.55" |
| Overall Height - Relay | 2 13/25" |
| Phase | 1 |
| Pick Up Range | 80-150V AC |
| Power Consumption | 1.7 W/3 VA |
| Power Rating | 2 VA |
| Promotion Restriction | Not Eligible For Promotion |
| Relay Mounting Style | Din-Rail |
| Resistive Contact Amp Rating | 16A |
| Trip Delay | 0.1 sec. to 10 sec. |
| Trip Delay (sec.) | 0.1 a 10 |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 9.02 |
| Ship length (cm) | 6.4 |
| Ship width (cm) | 1.75 |
| HS code | 8536490075 |
| Country of Origin | CZ |
Product Details:
- Drop-Out Range (30 to 99%)
- Pick Up Range (80-150VAC)
Product Variants
| Product | Model | Contact Form | Number Of Pins | Input Voltage | Number Of Contacts | Current Rating | Amps Rating | Phase | Ac Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PMPU | SPDT | 8 | 190-500V AC | 1 | 10A | 10A | 3 | - | €164.34 | |
 |
PAP208 | SPDT | 8 | 208V AC | 1 | 10A | 10A | 3 | - | €104.05 | |
 |
PAP240 | SPDT | 8 | 240V AC | 1 | 10A | 10A | 3 | - | €97.18 | |
 |
PAP480 | SPDT | 8 | 480V AC | 1 | 10A | 10A | 3 | - | €96.23 | |
 |
PMPU-FA8 | SPDT | 8 | 208-480V AC | 1 | - | 10A | 3 | - | €121.46 | |
 |
VWKE240A | SPDT | 5 | 240V AC | 1 | 15A | 15A | 1 | - | €107.48 | |
 |
PMDU | DPDT | - | 190-500V AC | 2 | 10A | - | 3 | - | €227.36 |
