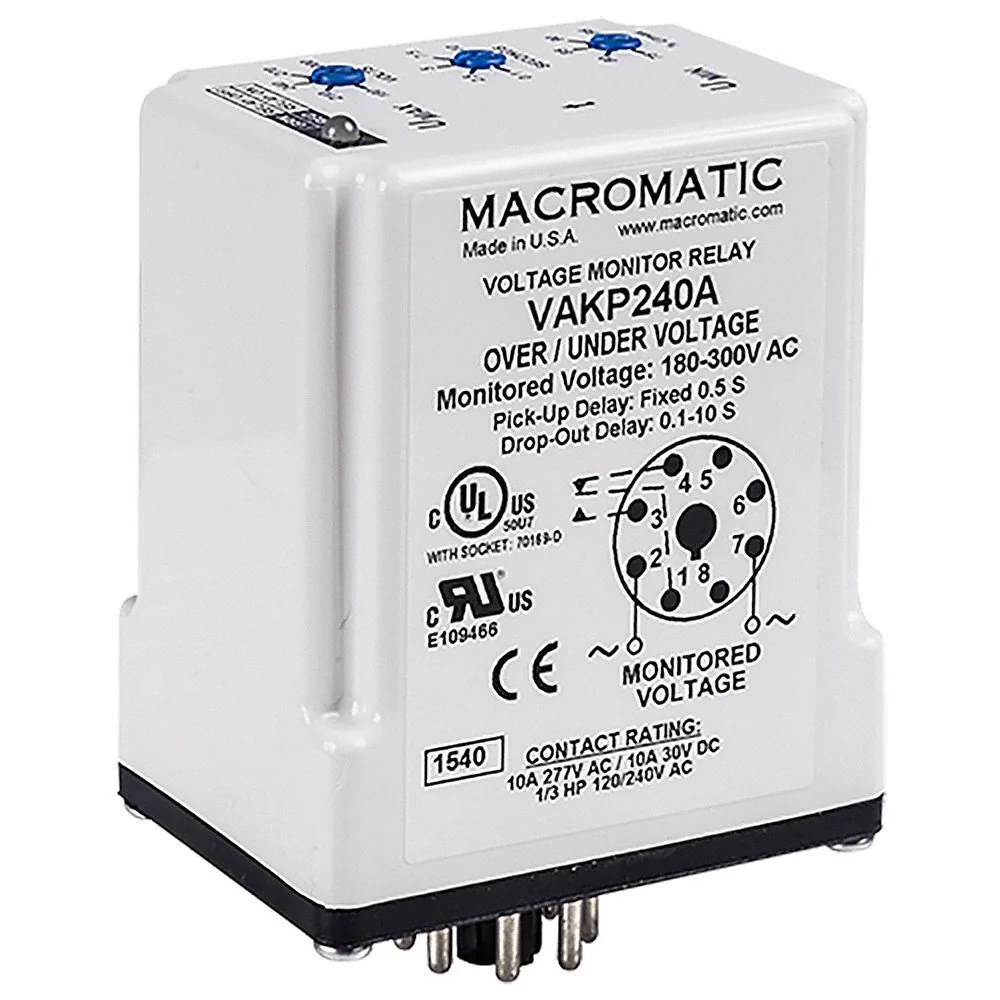

MACROMATIC VAKP240A Voltage Sensing Relay, -40 to 85 Deg C, 30VA, Indicator Style LED
Item: CD3ZHYModel: VAKP240ACross Ref: 45LV09
7 In Stock
Ships within 2 days via
10.00% off
€127.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Voltage Sensing Relay |
| Amps Rating | 10A |
| Base Shape | Octal |
| Base Type | Octal |
| Body Depth | 2.9" |
| Body Height | 2.4" |
| Body Width | 1.7" |
| Body Width - Relay | 2 2/5" |
| Contact Form | SPDT |
| Contact Rating (ac) | 10A @ 240V |
| Contact Rating (dc) | 7A @ 30V |
| Current Rating | 10A |
| Drop Out Voltage Setting | Adjustable % Of Pick-Up Voltage Setting |
| Drop-out Range | 75% to 95% |
| Electrical Connection Type | Pin |
| Electrical Operating Durability | 100000 |
| Frequency | 50/60 Hz |
| Input Voltage | 240V AC |
| Mechanical Operating Durability | 10000000 |
| Monitored Parameters | Overvoltage, Undervoltage |
| Mounting - Relay | Plug In |
| Number Of Contacts | 1 |
| Number Of Pins | 8 |
| Number Of Pins - Relay | 8 |
| Number Of Pins/terminals | 8 |
| Overall Depth | 3" |
| Overall Height - Relay | 4" |
| Phase | 1 |
| Pick Up Range | 180-300V AC |
| Pick-up | Adjustable Across Full Range As Shown On The Product Nameplate |
| Power Consumption | 2 VA |
| Relay Mounting Style | Socket |
| Socket Code | A |
| Trip Delay | 0.1 sec. to 10 sec. |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 4.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Contact Form | Number Of Pins | Input Voltage | Number Of Contacts | Current Rating | Amps Rating | Phase | Ac Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PMPU | SPDT | 8 | 190-500V AC | 1 | 10A | 10A | 3 | - | €164.34 | |
 |
PAP208 | SPDT | 8 | 208V AC | 1 | 10A | 10A | 3 | - | €104.05 | |
 |
PAP240 | SPDT | 8 | 240V AC | 1 | 10A | 10A | 3 | - | €97.18 | |
 |
PAP480 | SPDT | 8 | 480V AC | 1 | 10A | 10A | 3 | - | €96.23 | |
 |
PMPU-FA8 | SPDT | 8 | 208-480V AC | 1 | - | 10A | 3 | - | €121.46 | |
 |
VWKE120A | SPDT | 5 | 120V AC | 1 | 15A | 15A | 1 | - | €72.63 | |
 |
VWKE240A | SPDT | 5 | 240V AC | 1 | 15A | 15A | 1 | - | €107.48 |
