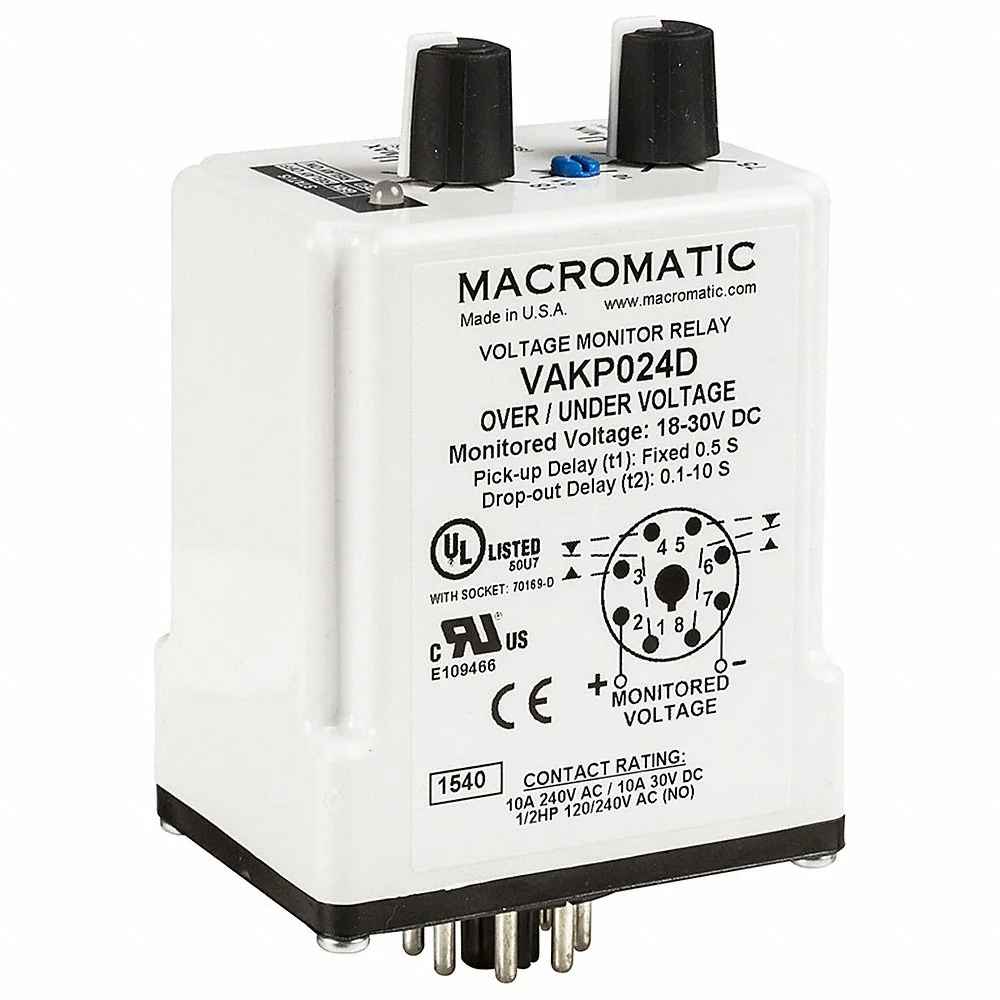

MACROMATIC VAKP024D Voltage Sensing Relay, 30VA, Indicator Style LED, -40 to 85 Deg C
Item: CD6ZXRModel: VAKP024DCross Ref: 45LV07
7 In Stock
Ships within 2 days via
5.00% off
€116.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Voltage Monitor Relay |
| Amps | 10A |
| Amps Supported | 10A |
| Amps Unbalance Detect | No |
| Base Shape | Octal |
| Base Type | Octal |
| Body Depth | 2.9" |
| Body Height | 2.4" |
| Body Width | 1.7" |
| Body Width-relay | 2 2/5" |
| Contact Failure Detect | No |
| Contact Form | DPDT |
| Contact Rating (ac) | 10A @ 240V |
| Contact Rating (dc) | 7A @ 30V |
| Drop Out Voltage Setting | Adjustable % Of Pick-Up Voltage Setting |
| Drop-out Range | 75% to 95% |
| Electrical Connection Type | Pin |
| Electrical Operating Durability | 100000 |
| Frequency | 50/60 Hz |
| Gross Weight | 0.265 lbs. |
| High Power Over Voltage Trip | No |
| Indicator Style | LED |
| Input Or Control Voltage | 24V DC |
| Input Voltage | 24V DC |
| Lo Hp Trip Detect | No |
| Lo Kw Trip Detect | No |
| Lo Pwr (under Vltg) Trip | No |
| Manual Reset | No |
| Max. Operating Temp. | 149°F |
| Max. Pick Up | Adjustable Across Full Range As Shown On The Product Nameplate |
| Mechanical Operating Durability | 10000000 |
| Monitored Parameters | Overvoltage, Undervoltage |
| Mounting | Plug-In |
| Mounting Style | Plug-In |
| Mounting-relay | Plug In |
| No. Of Contacts | 2 |
| No. Of Pins | 8 |
| No. Of Pins-relay | 8 |
| No. Of Pins/terminals | 8 |
| Operating Life | 10000000 Operations |
| Operation | 10000000 |
| Output Relay | DPDT |
| Over Amps | No |
| Overall Depth | 3 1/2" |
| Overall Height-relay | 4" |
| Phase | 1 |
| Phase Loss Detect | No |
| Phase Rvrse/rotatn Detect | No |
| Pick Up | 18-30V DC , Adjustable Across Full Range As Shown On The Product Nameplate |
| Power Consumption | 2 VA |
| Rapid Cycling Detect | No |
| Relay Mounting Style | Socket |
| Restart Delay | 1 sec. |
| Socket Code | A |
| Temp. | -40°C to +85°C |
| Trip Delay | 0.1 sec. to 10 sec. |
| Type Of Display | LED Status Indicator |
| Under Amps Detect | No |
| Var Restart Delay | No |
| Variable Point Trip | No |
| Voltage Unbalance Detect | No |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 4.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Input Voltage | Overall Depth | No. Of Contacts | Contact Form | Input Or Control Voltage | Amps Supported | Temp. | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VAKP240A | 240V AC | 3" | 1 | SPDT | - | 10A | - | Plug-In | €141.41 | |
|
VAKP012D | 12V DC | 3 1/2" | 2 | DPDT | 12V DC | 10A | -40°C to +85°C | Plug-In | €106.42 | |
 |
VAKP048D | - | - | - | - | - | 10A | -40°C to +85°C | Plug-In | €119.99 | |
 |
VAKP480A | - | - | - | - | - | 10A | -40°C to +85°C | Plug-In | €138.96 | |
|
VAKP120A | 120V AC | 3 1/2" | 2 | DPDT | - | 10A | -40°C to +85°C | Plug-In | €125.89 | |
 |
VAKP110D | - | - | - | - | - | 10A | -40°C to +85°C | Plug-In | €119.99 |
