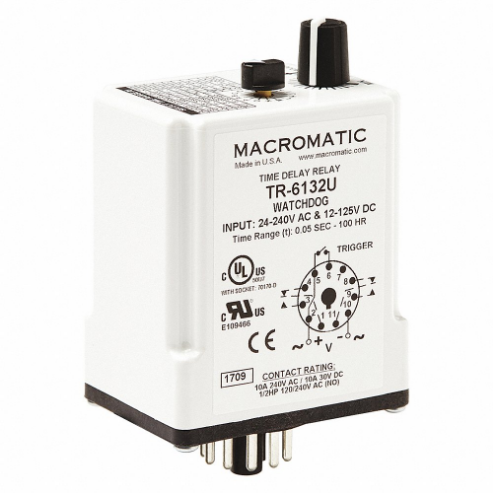

MACROMATIC TR-6132U Watchdog Time Delay Relay, 0 to 100 Hour Timing Range, Universal AC DC Coil Voltage, DPDT Contact, 10 A Rating
Item: CD6EJPModel: TR-6132UCross Ref: 425Z12
7 In Stock
Ships within 2 days via
5.00% off
€87.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Relay |
| Adjustment Interface | Analog |
| Adjustment Method | Rotary Switch |
| Amps | 10A |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type-plug In Relay | Octal |
| Body Depth | 2.9" |
| Body Height | 1.7" |
| Body Width | 2 2/5" |
| Coil Rating | 2 VA |
| Compatible With Grainger Part No | 20XG08, 5B585, 6CVD7, 6X156 |
| Contact Amps Rating | 10A |
| Contact Form | DPDT |
| Contact Material | Silver Nickel |
| Contact Rating (ac) | 10A @ 240V |
| Contact Rating (dc) | 10A @ 30V |
| Delay Function | Watchdog |
| Delay Function Type | Watchdog |
| Electrical Connection | Socket |
| Electrical Connection Type | Pin |
| Environmental Protection | Enclosed |
| Flat Pin Width | Not Applicable |
| Frequency | 50/60 Hz |
| Function | Watchdog (Switch Trigger) |
| Input Voltage | 12-125V DC/24-240V AC |
| Ip Rating | IP20 |
| Max. Operating Temp. | 149°F |
| Max. Time Setting | 100 hrs. |
| Mechanical Operating Durability | 10000000 |
| Min. Operating Temp. | -18°F |
| Min. Time Setting | 0.05 sec. |
| Min. Time Setting-timer | 0.05 sec. |
| Mounting | Plug In |
| Mounting-relay | Plug In |
| No. Of Delay Functions | 1 |
| No. Of Pins | 8 |
| No. Of Pins-relay | 11 |
| No. Of Pins/terminals | 11 |
| Output Amps | 10A |
| Overall Depth | 3 1/2" |
| Overall Height | 3.1" |
| Pins | 11 |
| Power Consumption | 3 VA |
| Relay Mounting Style | Socket |
| Reset Method | Time Limit Reset |
| Sealing | Enclosed |
| Socket Code | B |
| Timing Adjustment | Analog |
| Timing Range | 0.05 Seconds - 100 Hours |
| Timing Relay Functionality | One Shot |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 6.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Delay Function | Socket Code | Input Voltage | Max. Time Setting | Pins | Coil Rating | Body Width | Power Consumption | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TR-60622 | True Off Delay | A | 120V AC/DC | 30 min. | 8 | 2 VA | 2.3" | 2 VA | €135.60 | |
 |
TR-60628 | Off Delay | A | 24V AC/DC | 30 min. | 8 | 2 VA | 2.3" | 2 VA | €135.60 | |
 |
TR-60626 | Off Delay | A | 12V DC | 30 min. | 8 | 2 W | 2.3" | 2 VA | €135.60 | |
 |
TR-60621 | Off Delay | A | 240V AC | 30 min. | 8 | 2 VA | 2.3" | 2 VA | €135.60 | |
 |
TR-6022U | - | - | - | - | - | - | - | - | €79.09 | |
 |
TR-6052U | - | - | - | - | - | - | - | - | €79.09 | |
 |
TR-6152U | - | - | - | - | - | - | - | - | €85.76 |
