MACROMATIC TR-60622 Timer Relay, 30 Min., 8 Pin, 10A, 120V AC/DC
Item: AE7BKKModel: TR-60622Cross Ref: 5WMJ9
7 In Stock
Ships within 2 days via
10.00% off
€122.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Relay |
| Adjustment Interface | Analog |
| Adjustment Method | Rotary Switch |
| Adjustment Method | Potentiometer |
| Amps Rating | 10A |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type - Plug In Relay | Octal |
| Body Depth | 2.9" |
| Body Height | 1.7" |
| Body Width | 2.3" |
| Coil Rating | 2 VA |
| Coil Rating | 2VA |
| Coil Va Rating | 2 VA |
| Coil Volts | 120V AC/DC |
| Compatible With Grainger Part Number | 1EGP3, 1EGP5, 5X852 |
| Contact Amp Rating | 10A |
| Contact Form | DPDT |
| Contact Material | Silver Nickel |
| Contact Rating (ac) | 10A @ 240V |
| Contact Rating (dc) | 8A @ 28V |
| Current Rating | 10A |
| Delay Function | True Off Delay |
| Delay Function Type | Off Delay |
| Electrical Connection | Socket |
| Electrical Connection Type | Pin |
| Environmental Protection | Enclosed |
| Flat Pin Width | Not Applicable |
| Frequency | 50/60 Hz |
| Function | Power Off Delay (True Off Delay) |
| Input Voltage | 120V AC/DC |
| Ip Rating | IP20 |
| Load | 2 VA |
| Max. Time Setting | 30 min. |
| Max. Time Setting - Timer | 30 min. |
| Maximum Operating Temperature | 149°F |
| Mechanical Operating Durability | 2000000 |
| Min. Time Setting | 0.05 sec. |
| Min. Time Setting - Timer | 0.05 sec. |
| Minimum Operating Temperature | -18°F |
| Minimum Time Setting | 0.05 sec. |
| Mounting | Plug In |
| Mounting - Relay | Plug In |
| No. Of Pins | 8 |
| No. Of Pins - Relay | 8 |
| Number Of Delay Functions | 1 |
| Number Of Functions | 1 |
| Number Of Pins | 8 |
| Number Of Pins/terminals | 8 |
| Operating Functions | 10 |
| Overall Depth | 3 1/2" |
| Overall Height | 3.1" |
| Pins | 8 |
| Power Consumption | 2 VA |
| Relay Mounting Style | Socket |
| Reset Method | Time Limit Reset |
| Reset Time | 0.1 sec. |
| Resistive Contact Amp Rating | 10A |
| Sealing | Enclosed |
| Socket Code | A |
| Status Indicator | No |
| Status Indicator | None |
| Timing Adjustment | Analog |
| Timing Relay Functionality | Power Off Delay |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 5.84 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Variants
| Product | Model | Delay Function | Socket Code | Input Voltage | Pins | Coil Rating | Body Width | Number Of Pins/terminals | Power Consumption | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TR-60628 | Off Delay | A | 24V AC/DC | 8 | 2 VA | 2.3" | 8 | 2 VA | €135.60 | |
 |

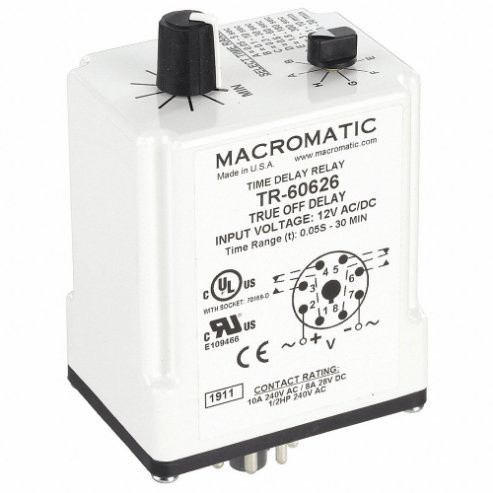

TR-60626 | Off Delay | A | 12V DC | 8 | 2 W | 2.3" | 8 | 2 VA | €135.60 | |
 |

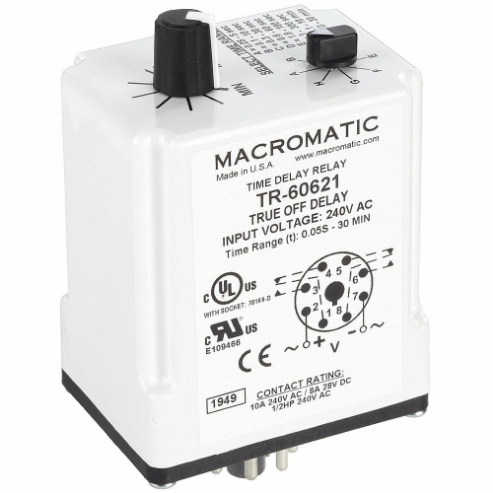

TR-60621 | Off Delay | A | 240V AC | 8 | 2 VA | 2.3" | 8 | 2 VA | €135.60 | |
 |
TR-6022U | - | - | - | - | - | - | - | - | €79.09 | |
 |
TR-6052U | - | - | - | - | - | - | - | - | €79.09 | |
 |
TR-6152U | - | - | - | - | - | - | - | - | €85.76 | |
 |
TR-6162U | - | - | - | - | - | - | - | - | €85.76 |
