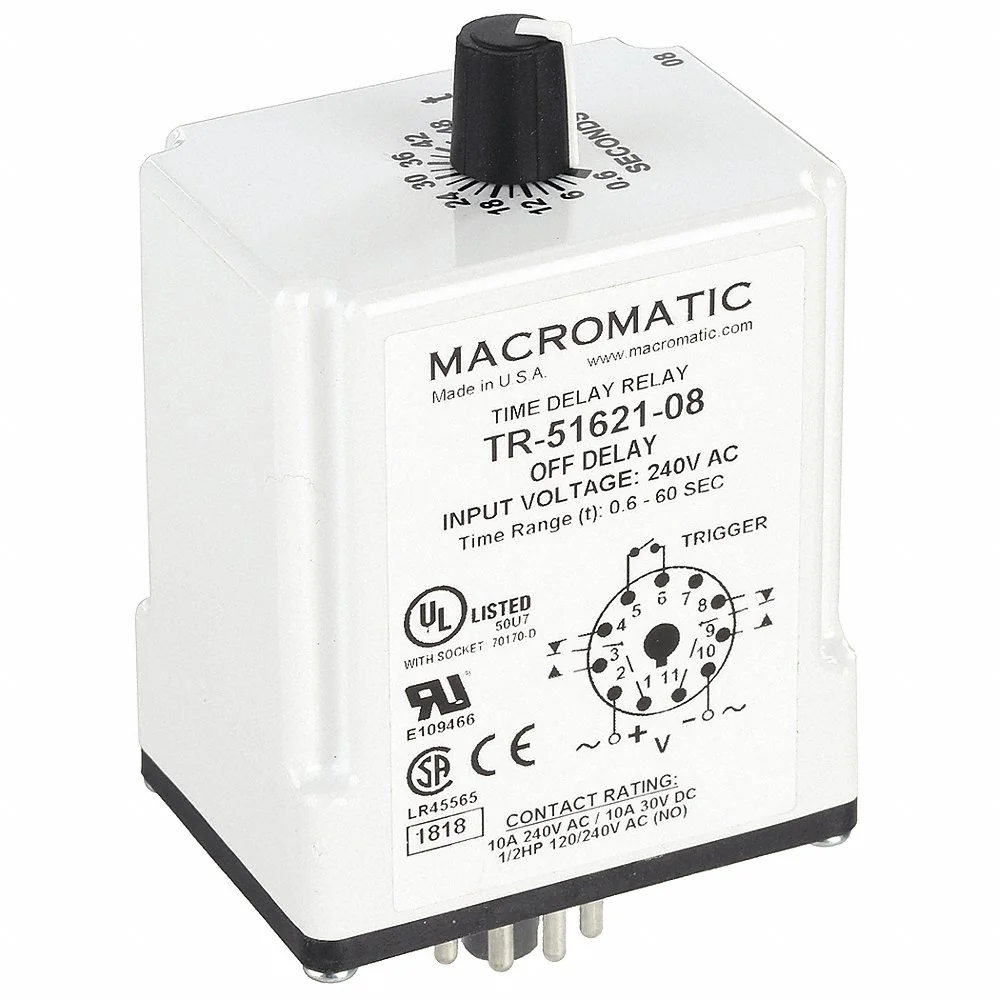

MACROMATIC TR-51621-08 Time Relay, Off Delay, 0.6 Sec, 240VAC | AG3UEZ 33VC16

MACROMATIC TR-51621-08 Time Relay, Off Delay, 0.6 Sec, 240VAC

Item: AG3UEZModel: TR-51621-08Cross Ref: 33VC16
7 In Stock

Ships within 2 days via

€51.95
10.00% off
€46.75 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Time Delay Relay
Adjustment Interface Analog
Adjustment Method Potentiometer
Amps Rating 10A
Base Shape Octal
Base Type Octal
Base Type - Plug In Relay Octal
Body Depth 2.9"
Body Height 1.7"
Body Width 2.3"
Coil Rating 2 VA
Coil Rating 2VA
Coil Volts 240V AC
Compatible With Grainger Part Number 1EGP2, 1EGP4, 6X156
Contact Amp Rating 10A
Contact Form DPDT
Contact Material Silver Nickel
Contact Rating (ac) 10A @ 240V
Contact Rating (dc) 10A @ 30V
Current Rating 10A
Delay Function Off Delay
Delay Function Type Off Delay
Electrical Connection Socket
Electrical Connection Type Pin
Electrical Operating Durability 100000
Environmental Protection Enclosed
Flat Pin Width Not Applicable
Frequency 50/60 Hz
Function Off Delay
Input Voltage 240V AC
Ip Rating IP20
Load 2 VA
Max. Time Setting 60 sec.
Max. Time Setting - Timer 1 min.
Maximum Operating Temperature 122°F
Mechanical Operating Durability 10000000
Min. Time Setting 0.6 sec.
Min. Time Setting - Timer 0.6 sec.
Minimum Operating Temperature -18°F
Minimum Time Setting 0.6 sec.
Mounting Plug In
Mounting - Relay Plug In
No. Of Pins 11
No. Of Pins - Relay 11
Number Of Delay Functions 1
Number Of Pins 11
Number Of Pins/terminals 11
Operating Functions 2
Operating Time Accuracy +0% -50% (Minimum Setting (Adjustable)), +2% 50Ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Overall Depth 3 1/2"
Overall Height 3.1"
Pins 11
Power Consumption 2 VA
Relay Mounting Style Socket
Reset Method Time Limit Reset
Reset Time 0.1 sec.
Resistive Contact Amp Rating 10A
Sealing Enclosed
Socket Code B
Status Indicator No
Status Indicator None
Timing Adjustment Analog
Timing Relay Functionality Off Delay

Shipping Info:

Ship weight (kg) 0.11
Ship height (cm)4.32
Ship length (cm)7.37
Ship width (cm)5.84
HS code8536490075
Country of OriginUS

Product Variants

ProductModelMax. Time SettingMin. Time SettingSocket CodeDelay FunctionInput VoltageNumber Of PinsAdjustment MethodCoil RatingPrice
MACROMATIC TR-50222-04 Timer Relay, 5 Sec, 8 Pin, 10A, 120V AC/DC | AB7KJV 23NU78 TR-50222-045 sec.0.05 sec.AOn Delay120V AC/DC8Potentiometer2 VA€46.19
MACROMATIC TR-50222-10 Timer Relay, 180 Sec, 8 Pin, 10A, 120V AC/DC | AB7KJW 23NU82 TR-50222-10180 sec.1.8 sec.AOn Delay120V AC/DC8Potentiometer2 VA€51.98
MACROMATIC TR-50222-12 Timer Relay, 5 Min., 8 Pin, 10A, 120V AC/DC | AB7KJX 23NU83 TR-50222-125 min.3 sec.AOn Delay120V AC/DC8Potentiometer2 VA€46.93
MACROMATIC TR-50222 Timer Relay 15 Min. 8 Pin 10a Dpdt 120v | AB7KJY 23NU84 TR-5022215 min.9 sec.AOn Delay120V AC/DC-Potentiometer2 VA€46.86
MACROMATIC TR-50522-05 Timer Relay, 10 Sec, 8 Pin, 10A, 120V AC/DC | AB7KJZ 23NU91 TR-50522-0510 sec.0.1 sec.AInterval On120V AC/DC8Potentiometer2 VA€48.42
MACROMATIC TR-50522-10 Timer Relay, 180 Sec, 8 Pin, 10A, 120V AC/DC | AB7KKA 23NU94 TR-50522-10180 sec.1.8 sec.A--8Potentiometer2 VA€47.08
MACROMATIC TR-50522-12 Timer Relay, 5 Min., 8 Pin, 10A, 120V AC/DC | AB7KKB 23NU95 TR-50522-125 min.3 sec.AInterval On120V AC/DC8Potentiometer2 VA€46.23
