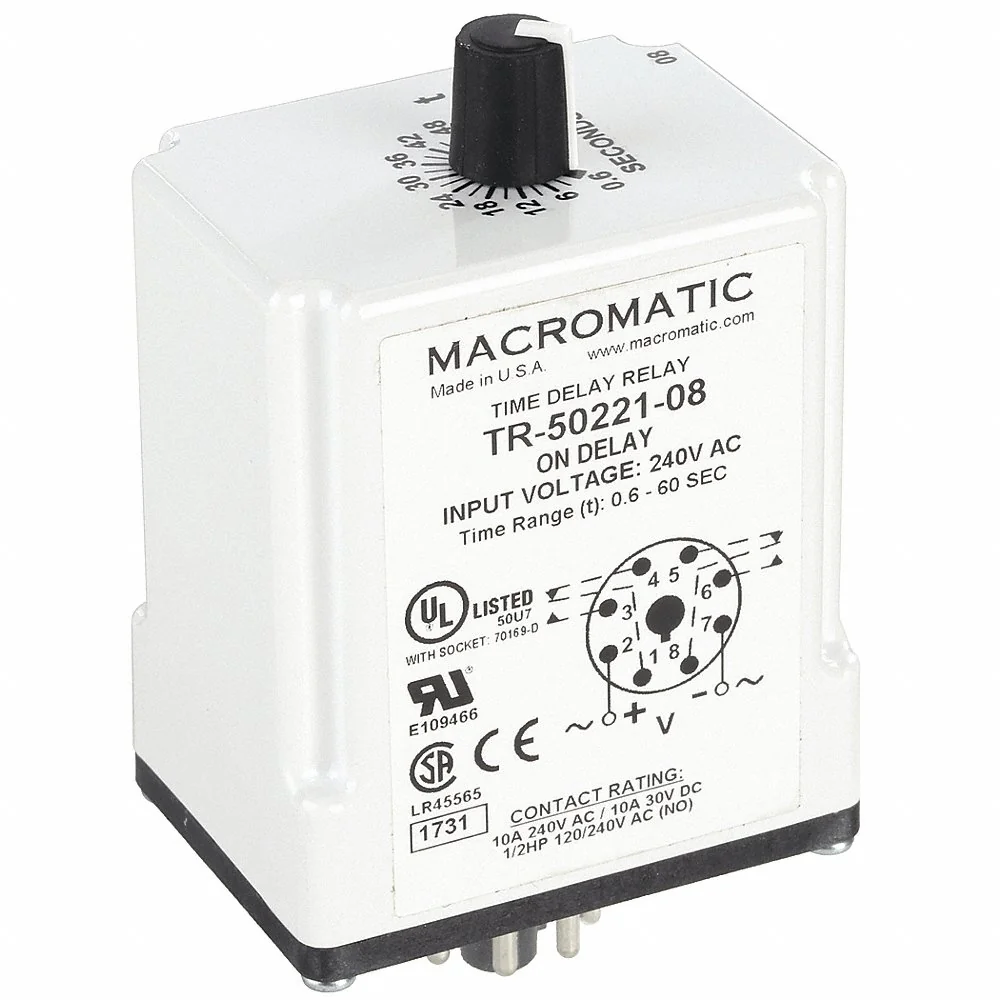

MACROMATIC TR-50221-08 Time Relay, On Delay, 0.6 Sec, 240VAC

Item: AG3UEDModel: TR-50221-08Cross Ref: 33VA96

7 In Stock

Time Delay Range

Input Voltage

Ships within 2 days via

~~€53.02~~

5.00% off

€50.37 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Time Delay Relay
Ac Voltage	240V AC
Adjustment Interface	Analog
Adjustment Method	Potentiometer
Adjustment Operator	Knob
Amps	10A
Base Shape	Octal
Base Type	Octal
Base Type-plug In Relay	Octal
Body Depth	2.9"
Body Height	1.7"
Body Width	2.3"
Coil Rating	2VA
Coil Rating	2 VA
Coil Voltage	240V AC
Compatible With Grainger Part No	1EGP3, 1EGP5, 5X852
Contact Amps Rating	10A
Contact Form	DPDT
Contact Material	Silver Nickel
Contact Rating (a)	10A
Contact Rating (ac)	10A @ 240V
Contact Rating (dc)	10A @ 30V
Contacts	DPDT
Delay Function	On Delay
Delay Function Type	On Delay
Electrical Connection	Socket
Electrical Connection Type	Pin
Electrical Operating Durability	100000
Environmental Protection	Enclosed
Environmental Protection Combo	Enclosed/IP20
Eu Rohs Indicator	Yes
Flat Pin Width	Not Applicable
Frequency	50/60 Hz
Function	On Delay
Function - Timing Relay	On Delay
Gross Weight	0.255 lbs.
Input Voltage	240V AC
Ip Rating	IP20
Load	2 VA
Max. Operating Temp.	122°F
Max. Time	60 sec.
Max. Time Setting	60 sec.
Max. Time Setting-timer	1 min.
Mechanical Operating Durability	10000000
Min. Operating Temp.	-18°F
Min. Time Setting	0.6 sec.
Min. Time Setting-timer	0.6 sec.
Mount	Plug-In
Mounting	Plug In
Mounting Style	Plug-In
Mounting Type	Socket
Mounting-relay	Plug In
Multi-function	No
No. Of Delay Functions	1
No. Of Pins	8
No. Of Pins-relay	8
No. Of Pins/terminals	8
Operating Functions	1
Operating Time Accuracy	+0% -50% (Minimum Setting (Adjustable)), +2% 50Ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Overall Depth	3 1/2"
Overall Height	3.1"
Pins	8
Power Consumption	2 VA
Relay Mounting Style	Socket
Reset Method	Time Limit Reset
Reset Time	0.1 sec.
Resistive Contact Amp Rating	10A
Resistive Contact Amps Rating	10A
Sealing	Enclosed
Socket Code	A
Status Indicator	No
Status Indicator	None
Termination	8 Pin
Time Range Adjustment	Onboard
Timing Adjustment	Analog
Timing Relay Functionality	On Delay

Shipping Info:

Ship weight (kg)	0.12
Ship height (cm)	4.32
Ship length (cm)	7.37
Ship width (cm)	5.84
HS code	8536490075
Country of Origin	US

Product Variants

Model	Min. Time Setting	Max. Time Setting	Socket Code	Delay Function	Input Voltage	Ac Voltage	Adjustment Method	Coil Rating	Price
TR-50222-04	0.05 sec.	5 sec.	A	On Delay	120V AC/DC	-	Potentiometer	2 VA	€46.19
TR-50222-10	1.8 sec.	180 sec.	A	On Delay	120V AC/DC	-	Potentiometer	2 VA	€51.98
TR-50222-12	3 sec.	5 min.	A	On Delay	120V AC/DC	-	Potentiometer	2 VA	€46.93
TR-50222	9 sec.	15 min.	A	On Delay	120V AC/DC	-	Potentiometer	2 VA	€46.86
TR-50522-05	0.1 sec.	10 sec.	A	Interval On	120V AC/DC	-	Potentiometer	2 VA	€48.42
TR-50522-10	1.8 sec.	180 sec.	A	-	-	-	Potentiometer	2 VA	€47.08
TR-50522-12	3 sec.	5 min.	A	Interval On	120V AC/DC	-	Potentiometer	2 VA	€46.23
