MACROMATIC TR-50221-04 Time Relay, On Delay, 0.05 Sec, 240VAC | AG3UEB 33VA94

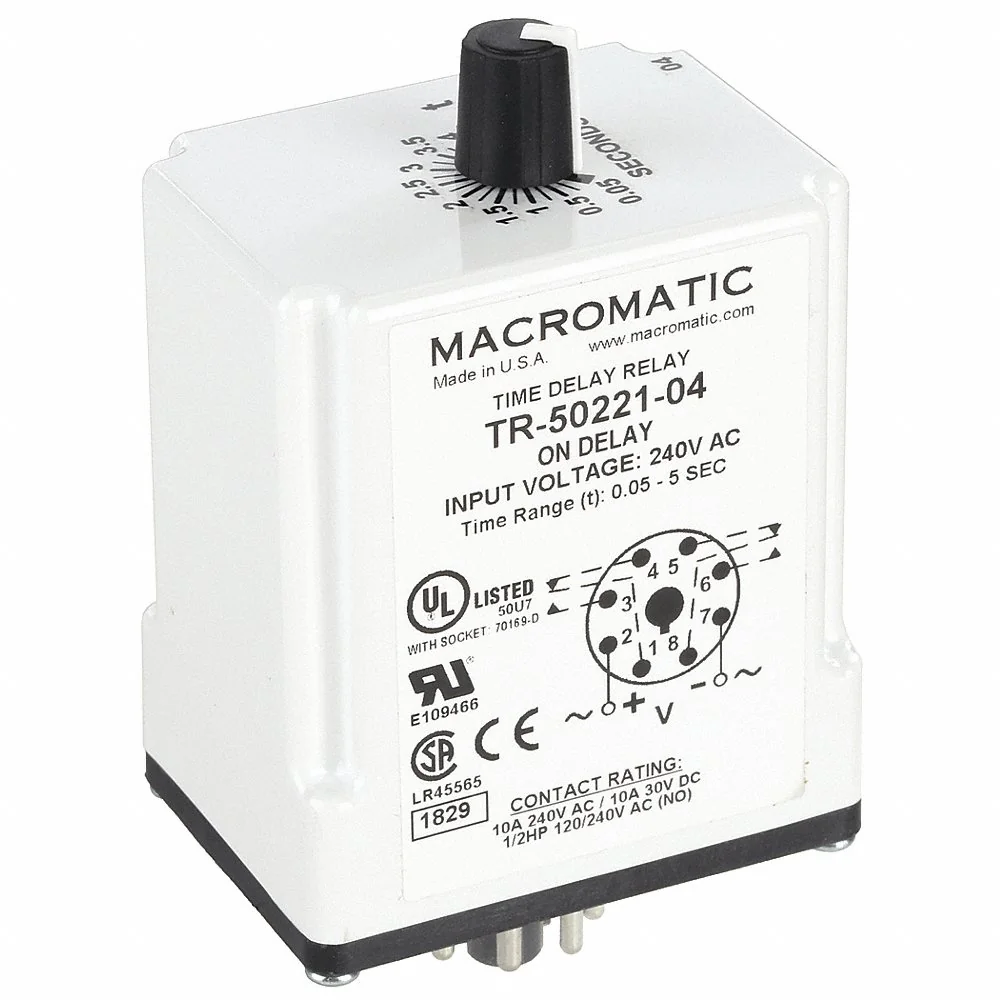

MACROMATIC TR-50221-04 Time Relay, On Delay, 0.05 Sec, 240VAC

Item: AG3UEBModel: TR-50221-04Cross Ref: 33VA94
7 In Stock
Time Delay Range
Input Voltage

Ships within 2 days via

€46.19
5.00% off
€43.89 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Time Delay Relay
Ac Voltage 240V AC
Adjustment Interface Analog
Adjustment Method Potentiometer
Adjustment Operator Knob
Amps 10A
Base Shape Octal
Base Type Octal
Base Type-plug In Relay Octal
Body Depth 2.9"
Body Height 1.7"
Body Width 2.3"
Coil Rating 2VA
Coil Rating 2 VA
Coil Voltage 240V AC
Compatible With Grainger Part No 1EGP3, 1EGP5, 5X852
Configuration/contact Rating DPDT & SPDT. 10A @ 240V AC/30V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.), B300 & R300
Contact Amps Rating 10A
Contact Form DPDT
Contact Material Silver Nickel
Contact Rating (a) 10A
Contact Rating (ac) 10A @ 240V
Contact Rating (dc) 10A @ 30V
Contacts DPDT
Delay Function On Delay
Delay Function Type On Delay
Electrical Connection Socket
Electrical Connection Type Pin
Electrical Operating Durability 100000
Environmental Protection Enclosed
Environmental Protection Combo Enclosed/IP20
Eu Rohs Indicator Yes
Flat Pin Width Not Applicable
Frequency 50/60 Hz
Function On Delay
Function - Timing Relay On Delay
Gross Weight 0 lbs.
Input Voltage 240V AC
Ip Rating IP20
Load 2 VA
Max. Operating Temp. 122°F
Max. Time 5 sec.
Max. Time Setting 5 sec.
Max. Time Setting-timer 5 sec.
Mechanical Operating Durability 10000000
Min. Operating Temp. -18°F
Min. Time Setting 0.05 sec.
Min. Time Setting-timer 0.05 sec.
Mount Plug-In
Mounting Plug In
Mounting Style Plug-In
Mounting Type Socket
Mounting-relay Plug In
Multi-function No
No. Of Delay Functions 1
No. Of Pins 8
No. Of Pins-relay 8
No. Of Pins/terminals 8
Operating Functions 1
Operating Time Accuracy +0% -50% (Minimum Setting (Adjustable)), +2% 50Ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Overall Depth 3 1/2"
Overall Height 3.1"
Pins 8
Power Consumption 2 VA
Relay Mounting Style Socket
Reset Method Time Limit Reset
Reset Time 0.1 sec.
Resistive Contact Amp Rating 10A
Resistive Contact Amps Rating 10A
Sealing Enclosed
Socket Code A
Status Indicator No
Status Indicator None
Termination 8 Pin
Time Range Adjustment Onboard
Timing Adjustment Analog
Timing Relay Functionality On Delay

Shipping Info:

Ship weight (kg) 0.11
Ship height (cm)4.32
Ship length (cm)7.37
Ship width (cm)5.84
HS code8536490075
Country of OriginUS

Product Variants

ProductModelAc VoltageDc VoltageCoil VoltageInput VoltageMax. TimeTimerNo. Of PinsCoil RatingPrice
MACROMATIC TR-50222-04 Timer Relay, 5 Sec, 8 Pin, 10A, 120V AC/DC | AB7KJV 23NU78 TR-50222-04120V AC120V DC120V AC120V AC/DC5 sec.-82 VA€46.19
MACROMATIC TR-50222-10 Timer Relay, 180 Sec, 8 Pin, 10A, 120V AC/DC | AB7KJW 23NU82 TR-50222-10120V AC120V DC120V AC120V AC/DC180 sec.-82 VA€51.98
MACROMATIC TR-50222-12 Timer Relay, 5 Min., 8 Pin, 10A, 120V AC/DC | AB7KJX 23NU83 TR-50222-12120V AC120V DC120V AC120V AC/DC300 sec.-82 VA€46.93
MACROMATIC TR-50222 Timer Relay 15 Min. 8 Pin 10a Dpdt 120v | AB7KJY 23NU84 TR-50222--120V AC120V AC/DC---2 VA€46.86
MACROMATIC TR-50522-05 Timer Relay, 10 Sec, 8 Pin, 10A, 120V AC/DC | AB7KJZ 23NU91 TR-50522-05120V AC120V DC120V AC120V AC/DC10 sec.-82 VA€48.42
MACROMATIC TR-50522-10 Timer Relay, 180 Sec, 8 Pin, 10A, 120V AC/DC | AB7KKA 23NU94 TR-50522-10120V AC120V DC120V AC-180 sec.-82 VA€47.08
MACROMATIC TR-50522-12 Timer Relay, 5 Min., 8 Pin, 10A, 120V AC/DC | AB7KKB 23NU95 TR-50522-12120V AC120V DC120V AC120V AC/DC300 sec.-82 VA€46.23
