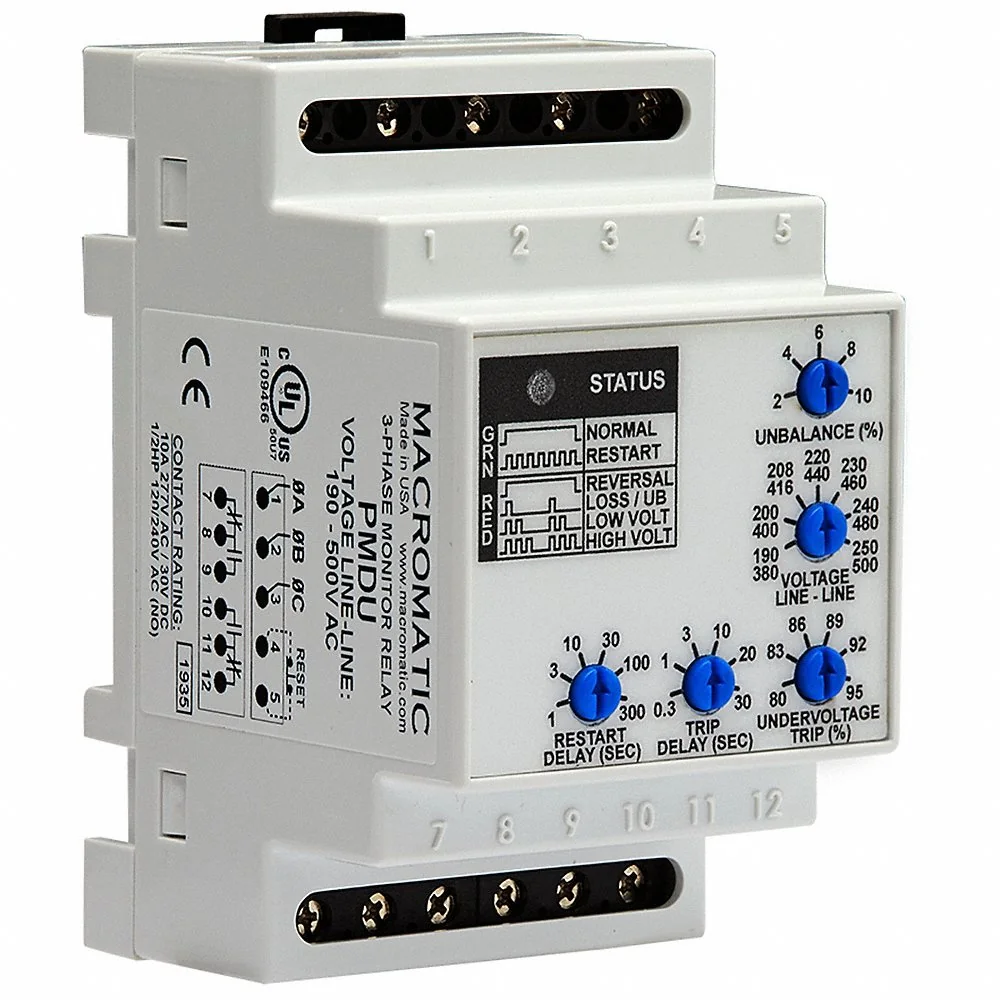

MACROMATIC PMDU Line Monitor Relay DPDT, 3-Phase, 12 Pin, 190-500VAC
Item: CD3ZHKModel: PMDUCross Ref: 45LU85
7 In Stock
Ships within 2 days via
5.00% off
€250.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Amps | 10A |
| Amps Supported | 10A |
| Amps Unbalance Detect | No |
| Base Type | DIN Rail |
| Body Depth | 2 2/5" |
| Body Height | 3 1/2" |
| Body Width | 2.1" |
| Contact Failure Detect | No |
| Contact Form | DPDT |
| Contact Rating (ac) | 10A @ 277V |
| Contact Rating (dc) | 10A @ 30V |
| Drop-out Range | 80% to 95% |
| Electrical Connection | Screw |
| Electrical Connection Type | Screw |
| Electrical Operating Durability | 100000 |
| For Use With | Sensors |
| Frequency | 50/60 Hz |
| Gross Weight | 0.34 lbs. |
| High Power Over Voltage Trip | Yes |
| Input Voltage | 190-500V AC |
| Lo Hp Trip Detect | No |
| Lo Kw Trip Detect | No |
| Lo Pwr (under Vltg) Trip | Yes |
| Manual Reset | Yes |
| Max. Operating Temp. | 149°F |
| Max. Switching Capacity | 40 VA |
| Max. Switching Voltage | 550V |
| Mechanical Operating Durability | 10000000 |
| Min./max. Voltage | 156-550V (PMDU) |
| Monitored Parameters | Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage |
| Mounting | DIN Rail |
| Mounting Style | DIN Rail |
| Mounting-relay | DIN Rail |
| No. Of Contacts | 2 |
| No. Of Pins | 0 , 12 |
| No. Of Pins-relay | 12 |
| No. Of Pins/terminals | 12 |
| Output Relay | DPDT |
| Over Amps | No |
| Over Voltage | Fixed 110% Of Line Voltage Setting |
| Overall Depth | 2 2/5" |
| Overall Height | 2 2/5" |
| Phase | 3 |
| Phase Loss Detect | Yes |
| Phase Loss Sensitivity | Yes |
| Phase Loss Time Delay | 0.1 sec. |
| Phase Reversal | Yes |
| Phase Reversal Time Delay | 0.1 sec. |
| Phase Rvrse/rotatn Detect | Yes |
| Phase Unbalance | 2% to 10% |
| Phase Unbalance Time Delay | 0.3 sec. to 30 sec. |
| Pick Up | 190-500V AC |
| Power Consumption | 40 VA |
| Protection | Phase Loss, Phase Reversal, Undervoltage, Overvoltage, Voltage Unbalance |
| Rapid Cycling Detect | Yes |
| Relay Mounting Style | DIN Rail |
| Restart | Auto, Manual |
| Restart Delay | 1 sec. to 300 sec. |
| Restart Time Delay | 1 sec. to 300 sec. |
| Type Of Display | LED Status Indicator |
| Under Amps Detect | No |
| Under Voltage | 190-500V AC |
| Var Restart Delay | No |
| Variable Point Trip | No |
| Voltage Unbalance Detect | Yes |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 5.33 |
| Country of Origin | US |
