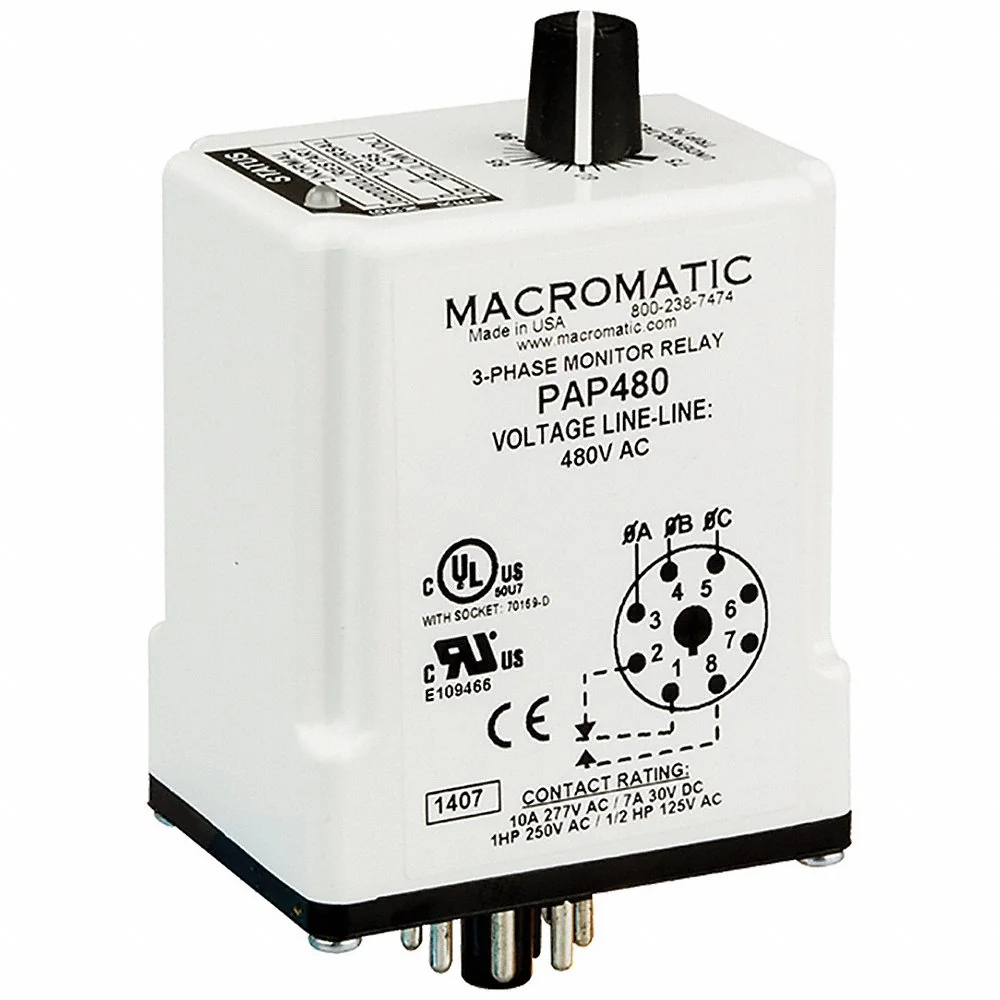

MACROMATIC PAP480 3-Phase Line Monitor SPDT, 8 Pin, 480VAC
Item: AE7BKGModel: PAP480Cross Ref: 5WMJ6
7 In Stock
Ships within 2 days via
5.00% off
€91.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Amps | 10A |
| Amps Supported | 10A |
| Amps Unbalance Detect | No |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type-plug In Relay | Octal |
| Body Depth | 2.9" |
| Body Height | 2.4" |
| Body Width | 1.7" |
| Configuration/contact Rating | SPDT/DPDT. 10A @ 277V AC / 7A @ 30V DC /5A@ 277V AC / 5A @ 30V DC |
| Contact Failure Detect | No |
| Contact Form | SPDT |
| Contact Rating (ac) | 10A @ 277V |
| Contact Rating (dc) | 7A @ 30V |
| Drop-out Range | 75% to 95% |
| Electrical Connection Type | Pin |
| Electrical Operating Durability | 100000 |
| For Use With | Sensors |
| Frequency | 50/60 Hz |
| Gross Weight | 0.265 lbs. |
| High Power Over Voltage Trip | No |
| Input Or Control Voltage | 480V AC |
| Input Voltage | 480V AC |
| Lo Hp Trip Detect | No |
| Lo Kw Trip Detect | No |
| Lo Pwr (under Vltg) Trip | Yes |
| Manual Reset | No |
| Max. Operating Temp. | 149°F |
| Max. Switching Capacity | 40 VA |
| Max. Switching Voltage | 460V |
| Mechanical Operating Durability | 10000000 |
| Min./max. Voltage | 156-198V (PAP208) |
| Monitored Parameters | Phase Loss, Phase Reversal, Undervoltage |
| Mounting | Plug-In |
| Mounting Style | Plug-In |
| Mounting-relay | Plug In |
| No. Of Contacts | 1 |
| No. Of Pins | 8 |
| No. Of Pins-relay | 8 |
| No. Of Pins/terminals | 8 |
| Number Of Contacts | 1 |
| Output Relay | SPDT |
| Over Amps | No |
| Over Voltage | Adjustable 75% to 95% Of The Line Voltage Setting , No |
| Overall Depth | 2 2/5" |
| Overall Height | 3 1/2" |
| Phase | 3 |
| Phase Loss Detect | Yes |
| Phase Loss Sensitivity | Yes |
| Phase Loss Time Delay | 0.1 sec. |
| Phase Reversal | Yes |
| Phase Reversal Time Delay | 0.1 sec. |
| Phase Rvrse/rotatn Detect | Yes |
| Phase Unbalance | No |
| Pick Up | 360-460V AC |
| Power | 3 VA |
| Power Consumption | 40 VA |
| Rapid Cycling Detect | No |
| Relay Mounting | Plug In |
| Relay Mounting Style | Socket |
| Reset | Automatic Upon Correction Of Fault. |
| Resistive Contact Amp Rating | 10A |
| Restart | Auto |
| Restart Delay | 1 sec. |
| Restart Time Delay | 1 sec. |
| Socket Code | A |
| Trip Delay (sec.) | Power Up and Restart After Fault Clear: 1 sec., Drop-Out Due to Fault: 100 msec., Phase Loss and Reversal: 4 sec., Undervoltage: 4 sec. |
| Type | Voltage Sensing |
| Type Of Display | LED Status Indicator |
| Under Amps Detect | No |
| Under Voltage | 360-460V AC |
| Var Restart Delay | No |
| Variable Point Trip | No |
| Voltage Unbalance Detect | No |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 4.32 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Details:
- Drop-Out Range (75-95% of Nominal Voltage)
Product Variants
| Product | Model | Input Voltage | Line Voltage | Under Voltage | Max. Switching Voltage | Input Or Control Voltage | Pick Up | Ac Voltage | Amps Supported | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PAP208 | 208V AC | - | 156-198V AC | 198V | 208V AC | 156-198V AC | - | 10A | €104.05 | |
 |
PAP240 | 240V AC | - | 180-230V AC | 230V | 240V AC | 180-230V AC | - | 10A | €96.53 | |
 |
PAP400 | - | 400V | - | - | - | - | 400V AC | 10A | €91.91 | |
 |
PAP575 | - | 460-600V | - | - | - | - | 460-600V AC | 10A | €104.43 |
