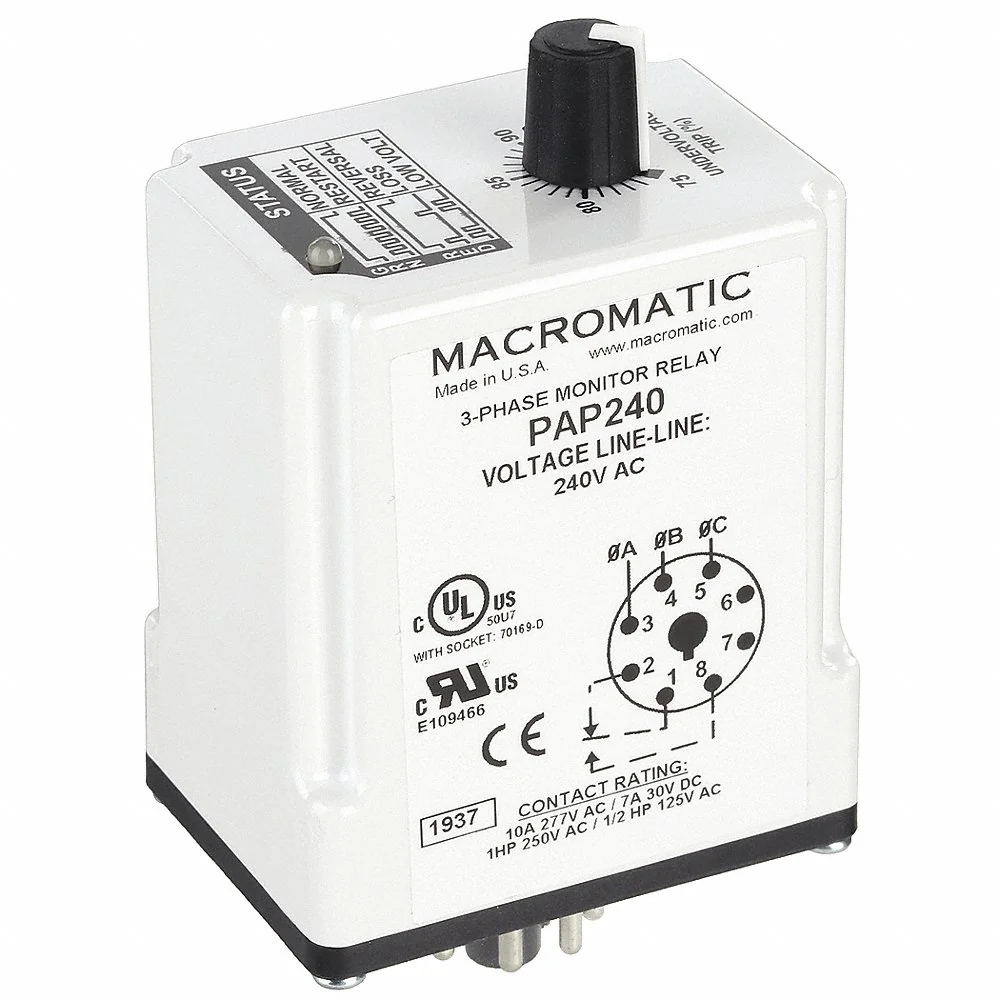

MACROMATIC PAP240 3-Phase Line Monitor SPDT, 8 Pin, 240VAC
Item: AE7BKFModel: PAP240Cross Ref: 5WMJ5
7 In Stock
Ships within 2 days via
10.00% off
€87.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 3-Phase Line Monitor |
| Amps Rating | 10A |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type - Plug In Relay | Octal |
| Body Depth | 2.9" |
| Body Height | 2.4" |
| Body Width | 1.7" |
| Contact Form | SPDT |
| Contact Rating (ac) | 10A @ 277V |
| Contact Rating (dc) | 7A @ 30V |
| Current Rating | 10A |
| Electrical Connection Type | Pin |
| Electrical Operating Durability | 100000 |
| For Use With | Sensors |
| Frequency | 50/60 Hz |
| Input Or Control Voltage Range | 240V AC |
| Input Voltage | 240V AC |
| Max. Switching Voltage | 230V |
| Maximum Switching Capacity | 40 VA |
| Mechanical Operating Durability | 10000000 |
| Monitored Parameters | Phase Loss, Phase Reversal, Undervoltage |
| Number Of Contacts | 1 |
| Number Of Pins | 8 |
| Number Of Pins - Relay | 8 |
| Number Of Pins/terminals | 8 |
| Over Voltage | No |
| Overall Depth | 2 2/5" |
| Overall Height | 3 1/2" |
| Overvoltage | Adjustable 75% to 95% Of The Line Voltage Setting |
| Phase | 3 |
| Phase Loss Sensitivity | Yes |
| Phase Loss Time Delay | 0.1 sec. |
| Phase Reversal | Yes |
| Phase Reversal Time Delay | 0.1 sec. |
| Phase Unbalance | No |
| Power Consumption | 40 VA |
| Power Rating | 3 VA |
| Relay Mounting | Plug In |
| Relay Mounting Style | Socket |
| Reset | Automatic Upon Correction Of Fault. |
| Resistive Contact Amp Rating | 10A |
| Restart | Auto |
| Restart Time Delay | 1 sec. |
| Socket Code | A |
| Trip Delay (sec.) | Power Up and Restart After Fault Clear: 1 sec., Drop-Out Due to Fault: 100 msec., Phase Loss and Reversal: 4 sec., Undervoltage: 4 sec. |
| Type | Voltage Sensing |
| Undervoltage | 180-230V AC |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 4.32 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Details:
- Drop-Out Range (75-95% of Nominal Voltage)
Product Variants
| Product | Model | Contact Form | Number Of Pins | Input Voltage | Number Of Contacts | Current Rating | Amps Rating | Phase | Ac Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PMPU | SPDT | 8 | 190-500V AC | 1 | 10A | 10A | 3 | - | €164.34 | |
 |
PAP208 | SPDT | 8 | 208V AC | 1 | 10A | 10A | 3 | - | €104.05 | |
 |
PAP480 | SPDT | 8 | 480V AC | 1 | 10A | 10A | 3 | - | €96.23 | |
 |
PMPU-FA8 | SPDT | 8 | 208-480V AC | 1 | - | 10A | 3 | - | €121.46 | |
 |
VWKE120A | SPDT | 5 | 120V AC | 1 | 15A | 15A | 1 | - | €72.63 | |
 |
VWKE240A | SPDT | 5 | 240V AC | 1 | 15A | 15A | 1 | - | €107.48 | |
 |
PMDU | DPDT | - | 190-500V AC | 2 | 10A | - | 3 | - | €227.36 |
