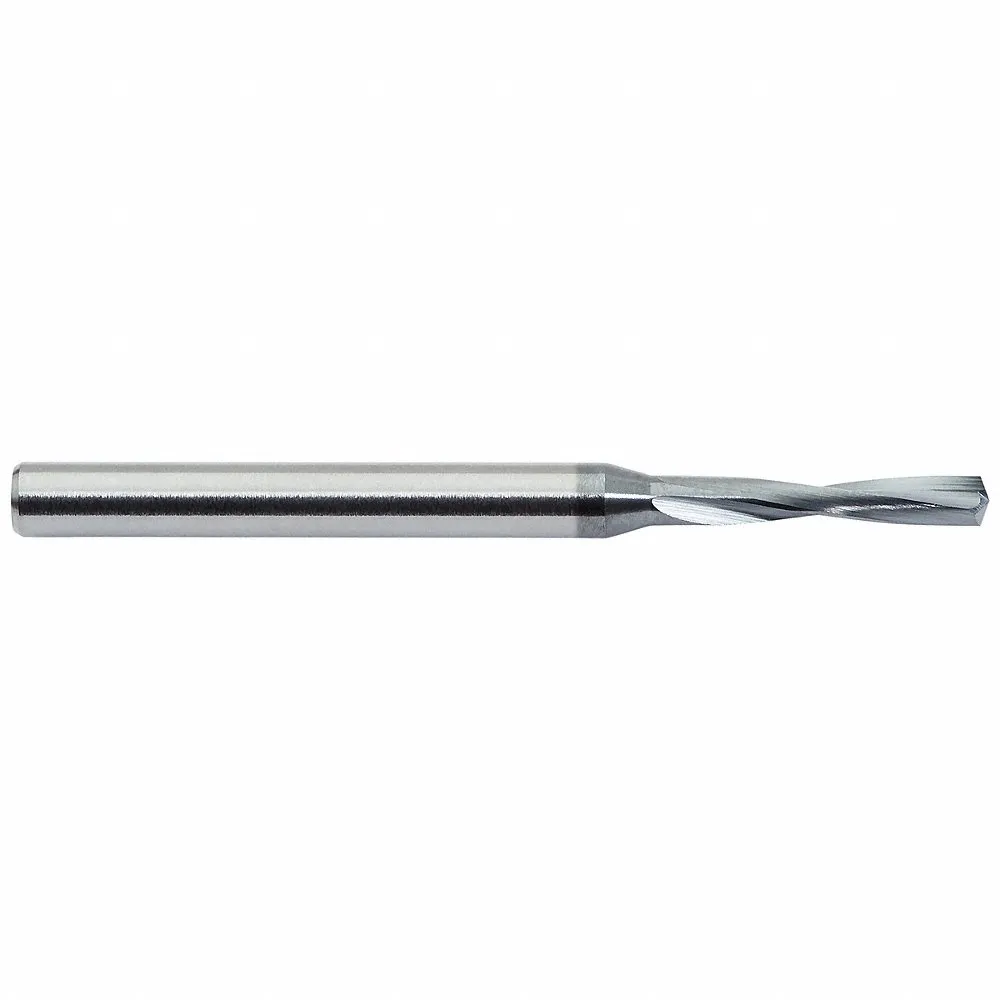

M A FORD 305M0100AM Micro Drill Bit, 1 mm Drill Bit Size, 10.16 mm Flute Length, 3 mm Shank Dia, Carbide
Item: CT2AJWModel: 305M0100AMCross Ref: 794NV1
7 In Stock
Ships within 2 days via
10.00% off
€23.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Micro Drill Bit |
| Circuit Board Drill | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0394 |
| Depth X Dia. Ratio | 8xd |
| Drill Bit Point Angle | 135° |
| Drill Bit Size | 1 mm |
| Drill Diameter Tolerance | -0.0003" to 0" |
| Finish | Aluminum Chromium Nitride |
| Finish - Machining | AlCrn |
| Flute Length | 10.16 mm |
| Flute Type | Helical |
| Grade | High Performance |
| Helix Angle | 12° |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 7.62 mm |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 38 mm |
| Primary Material Application | Cast Iron, Hardened Steel, Non Ferrous, Special Alloy, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Non Ferrous, Stainless Steel, Titanium |
| Secondary Material Application Iso Code | H, K, M, N, P, S |
| Shank Dia. | 3 mm |
| Shank Length | 1.0961" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
| Web Construction | Web Thinned |
| Web Thinning | Web Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Decimal Equivalent | Overall Length | Shank Dia. | Drill Bit Size | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|
| MXDCLM0100A | 0.0394 | 60 mm | 3 mm | 1 mm | 14.5 mm | €171.18 | |
| MXDCLM0110A | 0.0433 | 60 mm | 3 mm | 1.1 mm | 16.36 mm | €171.18 | |
| MXDCLM0120A | 0.0472 | 65 mm | 3 mm | 1.2 mm | 18.21 mm | €171.18 | |
| MXDCLM0130A | 0.0512 | 65 mm | 3 mm | 1.3 mm | 19.05 mm | €171.18 | |
| MXDCLM0140A | 0.0551 | 65 mm | 3 mm | 1.4 mm | 20.9 mm | €171.18 | |
| MXDCLM0150A | 0.0591 | 65 mm | 3 mm | 1.5 mm | 21.74 mm | €171.18 | |
| MXDCLM0160A | 0.063 | 70 mm | 3 mm | 1.6 mm | 23.6 mm | €171.18 |
