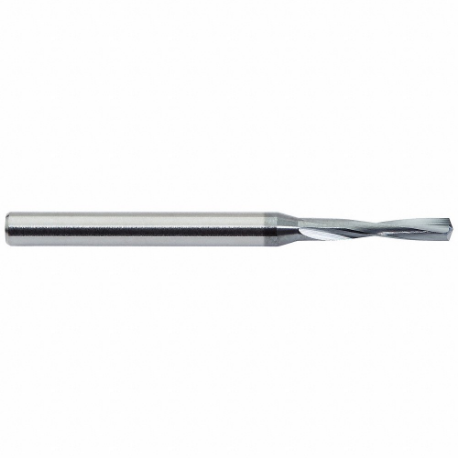

M A FORD Metalworking Micro Drill Bits
Filter
A
B
C
D
E| Style | Model | Overall Length | Decimal Equivalent | Shank Dia. | Drill Bit Size | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|
| A | 30204200A | - | 0.042 | 1/8" | #58 | 0.337" | €18.05 | |
| B | 30207810 | - | 0.0781 | - | - | - | €9.28 | |
| C | 30203900 | 1 1/2" | 0.039 | 1/8" | #61 | 0.342" | €9.28 | |
| A | 30203301A | 1 1/2" | 0.033 | 1/8" | #66 | 0.351" | €17.71 | |
| A | 30201250A | 1 1/2" | 0.0125 | 1/8" | #82 | 0.171" | €23.82 | |
| B | 30201000 | 1 1/2" | 0.01 | 1/8" | #87 | 0.135" | €28.27 | |
| D | 30204650A | 1 1/2" | 0.0465 | 1/8" | #56 | 0.33" | €18.05 | |
| B | 30201600 | 1 1/2" | 0.016 | 1/8" | #78 | 0.166" | €13.31 | |
| A | 30203101A | 1 1/2" | 0.031 | 1/8" | #68 | 0.354" | €17.71 | |
| E | 30204690 | 1 1/2" | 0.0469 | 1/8" | 3/64" | - | €10.04 | |
| A | 30203201A | 1 1/2" | 0.032 | 1/8" | - | 0.352" | €18.31 | |
| E | 30203200 | 1 1/2" | 0.032 | 1/8" | #67 | - | €9.17 | |
| A | 30209380A | 1 1/2" | 0.0938 | 1/8" | 3/32" | 0.339" | €18.05 | |
| E | 30203300 | 1 1/2" | 0.033 | 1/8" | #66 | - | €9.32 | |
| B | 30201200 | 1 1/2" | 0.012 | 1/8" | #83 | 0.172" | €18.61 | |
| B | 30209380 | 1 1/2" | 0.0938 | 1/8" | 3/32" | 0.339" | €8.80 | |
| B | 30206350 | 1 1/2" | 0.0635 | 1/8" | #52 | 0.385" | €9.25 | |
| A | 30201802A | 1 1/2" | 0.018 | 1/8" | #77 | 0.293" | €21.00 | |
| B | 30201802 | 1 1/2" | 0.018 | 1/8" | #77 | 0.293" | €14.13 | |
| E | 30202000 | 1 1/2" | 0.02 | 1/8" | #76 | - | €9.17 | |
| E | 30202400 | 1 1/2" | 0.024 | 1/8" | #73 | - | €9.17 | |
| A | 30201801A | 1 1/2" | 0.018 | 1/8" | #77 | 0.223" | €22.94 | |
| B | 30201250 | 1 1/2" | 0.0125 | 1/8" | #82 | 0.171" | €18.01 | |
| A | 30201200A | 1 1/2" | 0.012 | 1/8" | #83 | 0.172" | €25.50 | |
| B | 30201561 | 1 1/2" | 0.0156 | 1/8" | 1/64" | 0.227" | €14.13 | |
| B | 30200670 | 1 1/2" | 0.0067 | 1/8" | #95 | 0.09" | €64.72 | |
| B | 30212500 | 1 1/2" | 0.125 | 1/8" | 1/8" | 0.293" | €9.25 | |
| A | 30212500A | 1 1/2" | 0.125 | 1/8" | 1/8" | 0.293" | €18.05 | |
| E | 30212500 | 1 1/2" | 0.125 | 1/8" | 1/8" | - | €10.16 | |
| B | 30206250 | 1 1/2" | 0.0625 | 1/8" | 1/16" | 0.386" | €9.94 | |
| A | 30202802A | 1 1/2" | 0.028 | 1/8" | #70 | 0.358" | €17.93 | |
| B | 30202602 | 1 1/2" | 0.026 | 1/8" | #71 | 0.281" | €9.89 | |
| B | 30202502 | 1 1/2" | 0.025 | 1/8" | #72 | 0.283" | €9.74 | |
| B | 30202802 | 1 1/2" | 0.028 | 1/8" | #70 | 0.358" | €9.21 | |
| B | 30200630 | 1 1/2" | 0.0063 | 1/8" | #96 | 0.091" | €64.72 | |
| B | 30200710 | 1 1/2" | 0.0071 | 1/8" | #94 | 0.089" | €47.42 | |
| B | 30201150 | 1 1/2" | 0.0115 | 1/8" | #84 | 0.133" | €19.86 | |
| B | 30200750 | 1 1/2" | 0.0075 | 1/8" | #93 | 0.089" | €49.01 | |
| B | 30200790 | 1 1/2" | 0.0079 | 1/8" | #92 | 0.113" | €47.42 | |
| B | 30200830 | 1 1/2" | 0.0083 | 1/8" | #91 | 0.113" | €49.01 | |
| B | 30200870 | 1 1/2" | 0.0087 | 1/8" | #90 | 0.112" | €47.42 | |
| B | 30200910 | 1 1/2" | 0.0091 | 1/8" | #89 | 0.111" | €39.53 | |
| B | 30200950 | 1 1/2" | 0.0095 | 1/8" | #88 | 0.111" | €40.86 | |
| B | 30201050 | 1 1/2" | 0.0105 | 1/8" | #86 | 0.134" | €30.59 | |
| B | 30201100 | 1 1/2" | 0.011 | 1/8" | #85 | 0.134" | €30.59 | |
| A | 30212000A | 1 1/2" | 0.12 | 1/8" | #31 | 0.3" | €18.05 | |
| A | 30208900A | 1 1/2" | 0.089 | 1/8" | #43 | 0.347" | €18.05 | |
| A | 30207300A | 1 1/2" | 0.073 | 1/8" | #49 | 0.371" | €18.05 | |
| A | 30205500A | 1 1/2" | 0.055 | 1/8" | #54 | 0.318" | €18.05 | |
| A | 30201450A | 1 1/2" | 0.0145 | 1/8" | #79 | 0.168" | €20.59 | |
| A | 30203700A | 1 1/2" | 0.037 | 1/8" | #63 | 0.345" | €18.05 | |
| E | 30203800 | 1 1/2" | 0.038 | 1/8" | #62 | - | €10.16 | |
| A | 30204100A | 1 1/2" | 0.041 | 1/8" | #59 | 0.339" | €18.05 | |
| A | 30201601A | 1 1/2" | 0.016 | 1/8" | #78 | 0.226" | €20.59 | |
| E | 30205200 | 1 1/2" | 0.052 | 1/8" | #55 | - | €8.58 | |
| A | 30205200A | 1 1/2" | 0.052 | 1/8" | #55 | 0.322" | €18.05 | |
| B | 30205200 | 1 1/2" | 0.052 | 1/8" | #55 | 0.322" | €8.78 | |
| A | 30201600A | 1 1/2" | 0.016 | 1/8" | #78 | 0.166" | €19.96 | |
| B | 30201450 | 1 1/2" | 0.0145 | 1/8" | #79 | 0.168" | €14.13 | |
| A | 30203600A | 1 1/2" | 0.036 | 1/8" | #64 | 0.346" | €18.05 | |
| A | 30201451A | 1 1/2" | 0.0145 | 1/8" | #79 | 0.228" | €21.23 |
