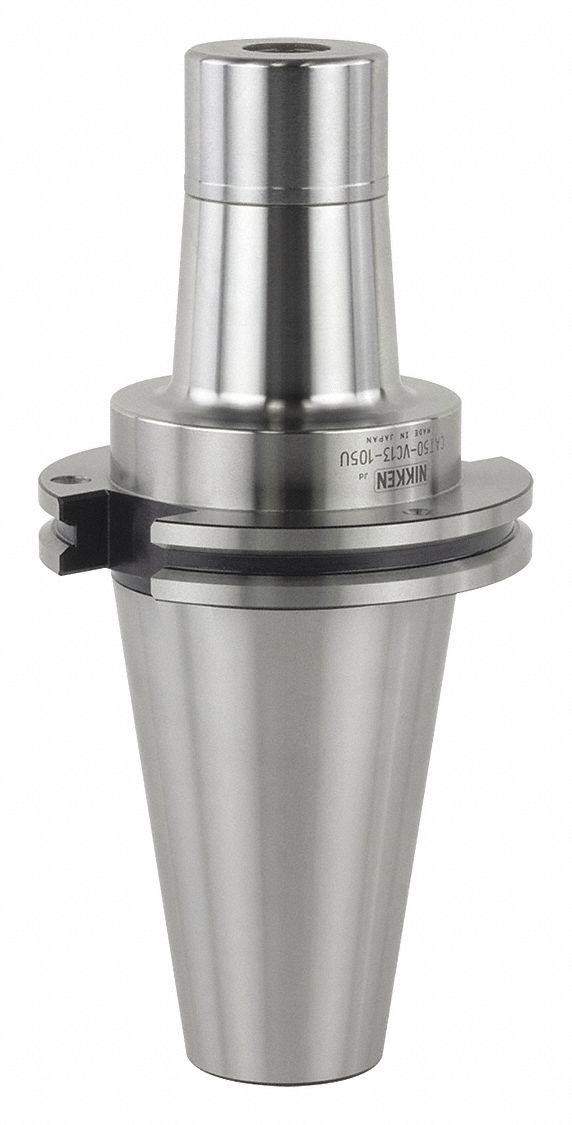

LYNDEX-NIKKEN CAT50-VC6-105U Collet Chuck HSK100 ER16 Projection 4 Inch
Item: AH8FCZModel: CAT50-VC6-105UCross Ref: 38PH08
7 In Stock
Ships within 2 days via
10.00% off
€802.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet Chuck |
| Balanceable | No |
| Collet Series | ER16 |
| Compatible Collet Wrench | GH10 |
| Coolant Fed | Coolant Through |
| Coolant Screws | Coolant Screws Included |
| Coolant Supply | Coolant Through |
| Coolant Through | Yes |
| Diameter | 1.26" |
| Features | Pre-Balanced |
| For Collet Series | VCK6 Series |
| For Max Collet Size | 1/4" |
| For Min Collet Size | 0.125" |
| Material | High Speed Steel |
| Max Speed | 40000 RPM |
| Max. Collet Capacity | 0.236" |
| Min. Collet Capacity | 0.079" |
| Nose Dia. | 1.083" |
| Nut | Nut Included |
| Nut Dia. | 1.26" |
| Nut Diameter | 1.083" |
| Overall Length | 8 9/64" |
| Pre-balanced | Yes |
| Product Type | Cat Collet Chuck |
| Projection | 4.134" |
| T.i.r. Tolerance | 0.0001" |
| Taper Size | CAT50 |
Shipping Info:
| Ship weight (kg) | 2.43 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 12.07 |
| Country of Origin | JP |
Product Details:
- Coolant Through : Yes
- Balanceable : No
- Pre-Balanced : Yes
Product Variants
| Model | Material | Projection | Taper Size | Nut Dia. | Min. Collet Capacity | Max. Collet Capacity | Nose Dia. | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| B3007-0016-2.36 | Molybdenum | 2 9/25" | BT30 | 1.26" | 0.019" | 0.406" | 1.26" | 4 17/64" | €281.78 | |
| B3007-0020-2.50 | Molybdenum | 2 1/2" | BT30 | 1.38" | 0.039" | 0.511" | 1.38" | 4 13/32" | €311.00 | |
| B3007-0500-2.00 | Molybdenum | 2" | BT30 | 2 1/2" | 1/8" | 1/2" | 1.34" | 3 29/32" | €544.06 | |
| B3007-0750-2.50 | Molybdenum | 2 1/2" | BT30 | 0.47" | 0.047" | 3/4" | 1.89" | 4 13/32" | €249.19 | |
| B3007-1000-3.94 | Molybdenum | 3.94" | BT30 | 3/4" | 0.047" | 1" | - | 5 27/32" | €249.19 | |
| B3017-0020-4.00 | Molybdenum | 4" | BT30 | 1.38" | 0.039" | 0.511" | 1.38" | 5 29/32" | €354.49 | |
| B3027-0016-5.00 | Molybdenum | 5" | BT30 | 1.26" | 0.019" | 0.406" | 1.26" | 6 29/32" | €314.12 |
