LYNDEX-NIKKEN Collet Chucks
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1| Style | Model | Material | Projection | Taper Size | Nut Dia. | Min. Collet Capacity | Max. Collet Capacity | Nose Dia. | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C50S7-0040-1.10 | - | 1.1" | CAT40 | 2 1/2" | 0.118" | 1.023" | 1 24/25" | - | - | RFQ
|
| B | B3007-0025-2.00 | - | 2" | BT30 | 1.65" | 0.039" | 0.629" | 1.65" | 3 29/32" | €338.71 | |
| B | B4017-0020-4.00 | - | 4" | BT40 | 1.38" | 0.039" | 0.511" | 1.38" | 6 37/64" | €354.49 | |
| C | N3007-0100-2.75 | - | 2.76" | NMTB30 | 1.106" | 0.047" | 0.562" | 1.06" | 5 7/16" | €160.78 | |
| D | B5007-1500-4.00 | - | 4" | BT50 | 1.65" | 1/2" | 1 1/2" | 3 1/2" | 8 1/64" | €535.09 | |
| E | BT30-SK6-90P | High Speed Steel | 3.54" | BT30 | 0.768" | 0.028" | 0.236" | 0.768" | 5 7/16" | €639.70 | |
| F | K1.1/4-SK16-120 | High Speed Steel | 4.72" | - | 1.575" | 0.108" | 0.629" | 1.575" | 4 23/32" | €440.61 | |
| F | K1.1/4-SK16-210 | High Speed Steel | 8.27" | - | 1.575" | 0.108" | 0.629" | 1.575" | 8 17/64" | €509.15 | |
| G | K3/4-MMC8C-100 | High Speed Steel | 3.94" | - | - | 0.079" | 0.314" | 0.787" | 3 15/16" | €549.95 | |
| H | CAT40-SK10-150U | High Speed Steel | 5.906" | Cat40 | 1.083" | 0.069" | 0.393" | 1.083" | 8 37/64" | €669.07 | |
| F | K1.1/4-SK6-170 | High Speed Steel | 6.69" | - | 0.768" | 0.028" | 0.236" | 0.768" | 6 11/16" | €455.29 | |
| F | K1.1/4-SK25-150 | High Speed Steel | 5.91" | - | 2.165" | 0.61" | 1" | 2.165" | 5 29/32" | €535.25 | |
| I | K1.1/4-SK10-120 | High Speed Steel | 4.72" | - | 1.083" | 0.069" | 0.393" | 1.083" | 4 23/32" | €336.16 | |
| J | HSK63A-VC6-90 | High Speed Steel | 3.54" | HSK63 | 1.083" | 0.079" | 0.236" | 1.083" | 4 5/64" | €1,013.93 | |
| J | HSK63A-VC13-120 | High Speed Steel | 4.72" | HSK63 | 1.575" | 0.118" | 0.511" | 1.575" | 5 63/64" | €874.67 | |
| K | HSK63A-SK6C-120P | High Speed Steel | 4.724" | HSK63A | 0.768" | 0.028" | 0.236" | 0.768" | 5 31/32" | €736.00 | |
| F | K1.1/4-SK16-150 | High Speed Steel | - | - | 1.575" | 0.108" | 0.629" | 1.575" | - | €440.61 | |
| L | BT30-SK6-60 | High Speed Steel | 60 mm | BT30 | 0.768" | 0.028" | 0.236" | 0.768" | - | €517.30 | |
| M | HSK63A-SK16C-120 | High Speed Steel | 4.724" | HSK63A | 1.575" | 0.108" | 0.629" | 1.575" | 5 31/32" | €820.82 | |
| N | BT30-SK6-90 | High Speed Steel | 3.54" | BT30 | 0.768" | 0.028" | 0.236" | 0.768" | 5 7/16" | €540.14 | |
| E | BT30-SK10-45P | High Speed Steel | 1.77" | BT30 | 1.083" | 0.069" | 0.393" | 1.083" | 3 43/64" | €620.11 | |
| L | BT30-SK10-60 | High Speed Steel | 2.36" | BT30 | 1.083" | 0.069" | 0.393" | 1.083" | 4 17/64" | €520.57 | |
| O | BT40-SK16-90 | High Speed Steel | 3.54" | BT40 | 1.575" | 0.108" | 0.629" | 1.575" | 6 7/64" | €631.55 | |
| L | BT30-SK10-90 | High Speed Steel | 3.54" | BT30 | 1.083" | 0.069" | 0.393" | 1.083" | 5 7/16" | €543.41 | |
| P | BT30-SK10-60P | High Speed Steel | 2.36" | BT30 | 1.083" | 0.069" | 0.393" | 1.083" | 4 17/64" | €632.01 | |

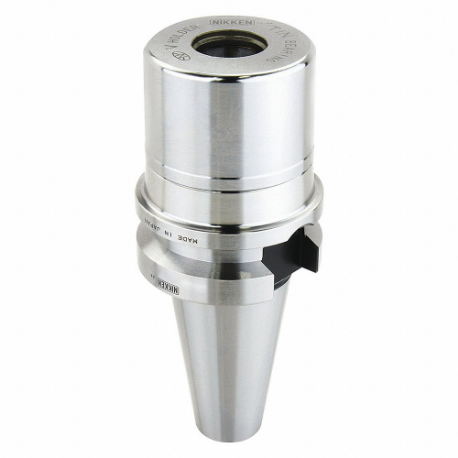

| Q | BT30-VC6-45 | High Speed Steel | 1.77" | BT30 | 1.083" | 0.079" | 0.236" | 1.083" | 3 43/64" | €859.45 | |
| Q | BT30-VC6-60 | High Speed Steel | 2.36" | BT30 | 1.083" | 0.079" | 0.236" | 1.083" | 4 17/64" | €870.32 | |
| P | BT30-SK16-90P | High Speed Steel | 3.54" | BT30 | 1.575" | 0.108" | 0.629" | 1.575" | 5 7/16" | €693.53 | |
| L | BT30-SK16-90 | High Speed Steel | 3.54" | BT30 | 1.575" | 0.108" | 0.629" | 1.575" | 5 7/16" | €605.42 | |
| L | BT30-SK16-60 | High Speed Steel | 2.36" | BT30 | 1.575" | 0.108" | 0.629" | 1.575" | 4 17/64" | €592.38 | |

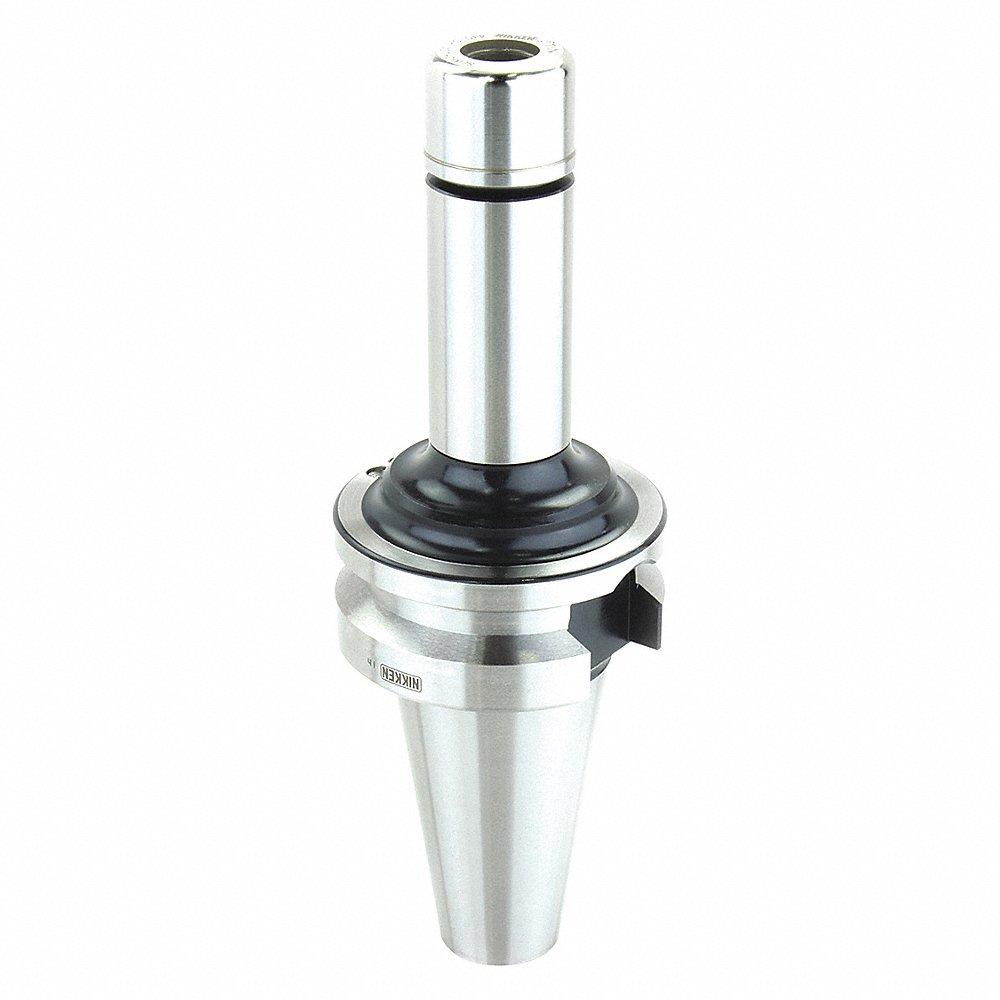

| R | BT30-SK16-60P | High Speed Steel | 60 mm | BT30 | 1.575" | 0.108" | 0.629" | 1.575" | - | €693.59 | |
| Q | BT30-VC13-120 | High Speed Steel | 4.724" | BT30 | 1.575" | 0.118" | 0.511" | 1.575" | 6 5/8" | €1,000.88 | |
| Q | BT30-VC13-60 | High Speed Steel | 2.36" | BT30 | 1.575" | 0.118" | 0.511" | 1.575" | 4 17/64" | €918.20 | |
| M | HSK63A-SK6C-120 | High Speed Steel | - | HSK63A | 0.768" | 0.028" | 0.236" | 0.768" | 5 31/32" | €647.06 | |
| K | HSK32E-SK6-50P | High Speed Steel | 1.97" | HSK32 | 3/4" | 0.028" | 0.236" | 0.768" | 2 19/32" | €737.61 | |

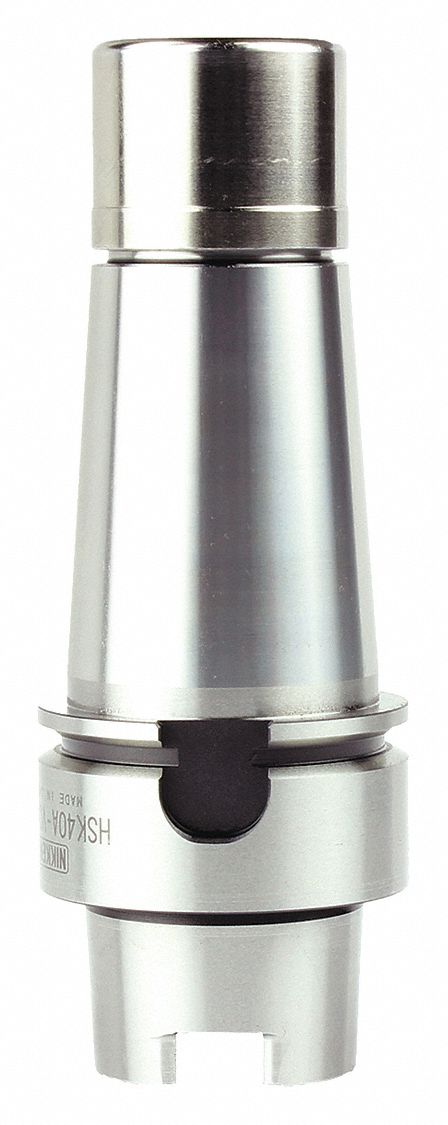

| S | HSK40A-VC6-90 | High Speed Steel | - | HSK40 | 1.083" | 0.079" | 0.236" | 1.083" | 4 21/64" | €835.17 | |

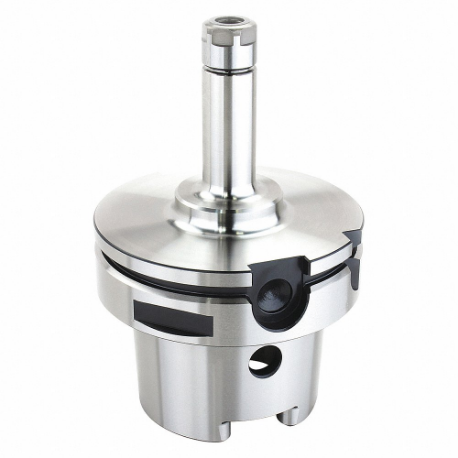

| T | HSK100A-SK10C-120 | High Speed Steel | 4.72" | HSK100 | 1.575" | 0.069" | 0.394" | 1.083" | 6 11/16" | €988.91 | |
| T | HSK100A-SK16C-200 | High Speed Steel | 7.87" | HSK100 | 1.575" | 0.108" | 0.629" | 1.575" | 9 53/64" | €1,109.07 | |
| U | HSK40E-VC6-65 | High Speed Steel | 2.56" | HSK40 | 1.083" | 0.079" | 0.236" | 1.083" | 3 11/32" | €798.00 | |

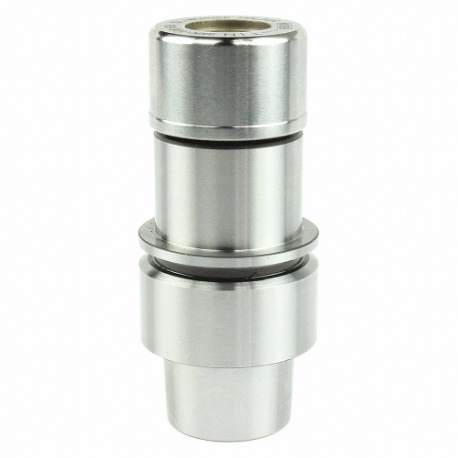

| V | HSK40E-SK6-60P | High Speed Steel | 2.362" | HSK40E | 1.083" | 0.028" | 0.236" | 0.768" | 3 9/64" | €695.18 | |

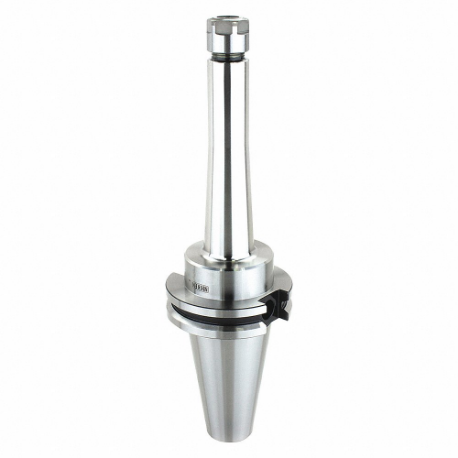

| W | CAT50-SK10-195U | High Speed Steel | 7.677" | CAT50 | 1.083" | 0.069" | 0.393" | 1.083" | 11 43/64" | €968.82 | |

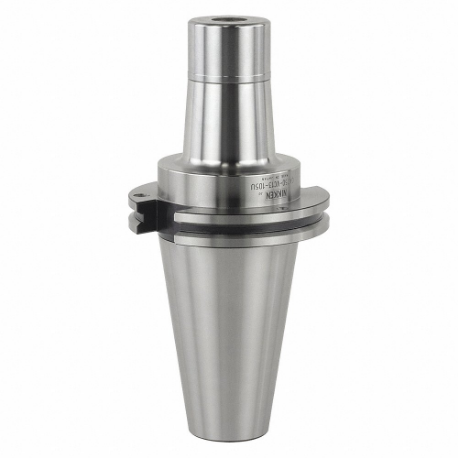

| X | CAT50-VC6-135U | High Speed Steel | 5.315" | CAT50 | 1.26" | 0.079" | 0.236" | 1.083" | 9 5/16" | €1,207.59 | |
| W | CAT50-SK16-195U | High Speed Steel | 7.677" | CAT50 | 1.575" | 0.108" | 0.629" | 1.575" | 11 43/64" | €1,022.70 | |
| W | CAT50-SK16-165U | High Speed Steel | 6.496" | CAT50 | 1.575" | 0.108" | 0.629" | 1.575" | 10 31/64" | €901.65 | |

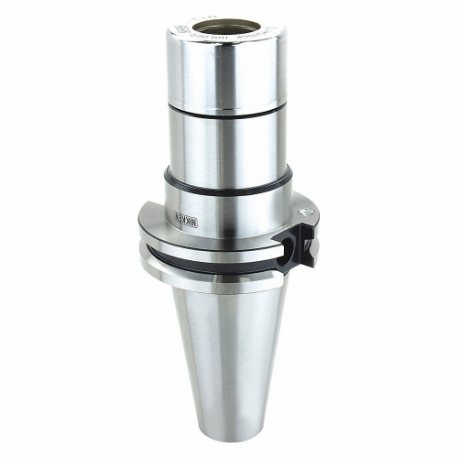

| Y | CAT50-SK16-165UP | High Speed Steel | 6.496" | CAT50 | 1.575" | 0.108" | 0.629" | 1.575" | 10 31/64" | €857.66 | |
| X | CAT50-VC13-165U | High Speed Steel | 6.496" | CAT50 | 1.083" | 0.118" | 0.511" | 1.575" | 10 1/2" | €1,011.34 | |
| X | CAT50-VC13-135U | High Speed Steel | 5.315" | CAT50 | 1.083" | 0.118" | 0.511" | 1.575" | 9 5/16" | €1,222.82 | |

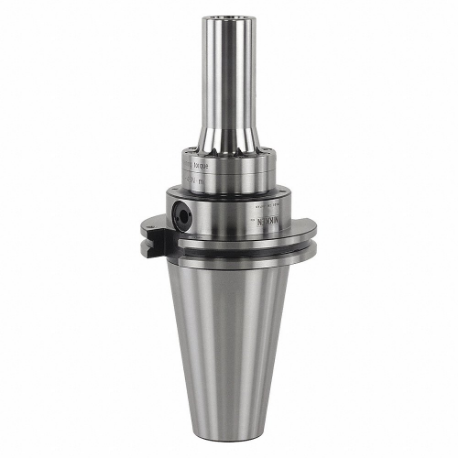

| Z | CAT50-MMC12C-135U | High Speed Steel | 5.315" | CAT50 | 1.083" | 0.158" | 1/2" | 1.181" | 9 9/32" | €1,519.28 | |
| T | HSK100A-SK6C-105 | High Speed Steel | 4.13" | HSK100 | 1.575" | 0.028" | 0.236" | 0.768" | 6 3/32" | €918.75 | |

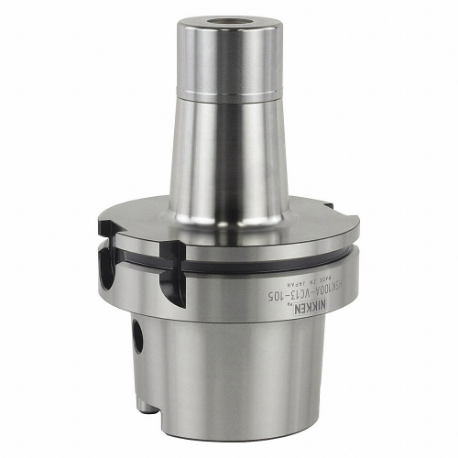

| A1 | HSK100A-VC6-105 | High Speed Steel | 4.134" | HSK100A | 1.083" | 0.079" | 0.236" | 1.083" | 6 7/64" | €1,275.03 | |
| A1 | HSK100A-VC6-135 | High Speed Steel | 5.315" | HSK100A | 1.083" | 0.079" | 0.236" | 1.083" | 7 9/32" | €1,077.51 | |
| L | BT30-SK25-90 | High Speed Steel | 2.36" | BT30 | 2.165" | 0.61" | 1" | 2.165" | 5 7/16" | €685.39 | |

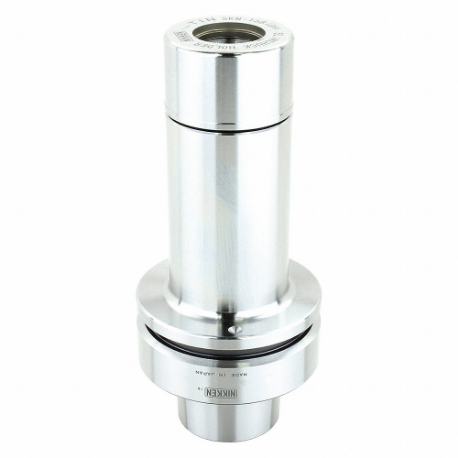

| B1 | HSK63F-SK16C-120P | High Speed Steel | 4.72" | HSK63 | 1.575" | 0.108" | 0.629" | 1.575" | 5 45/64" | €900.79 | |
| H | CAT40-SK10-120U | High Speed Steel | 4.724" | Cat40 | 1.083" | 0.069" | 0.393" | 1.083" | 7 13/32" | €616.84 | |

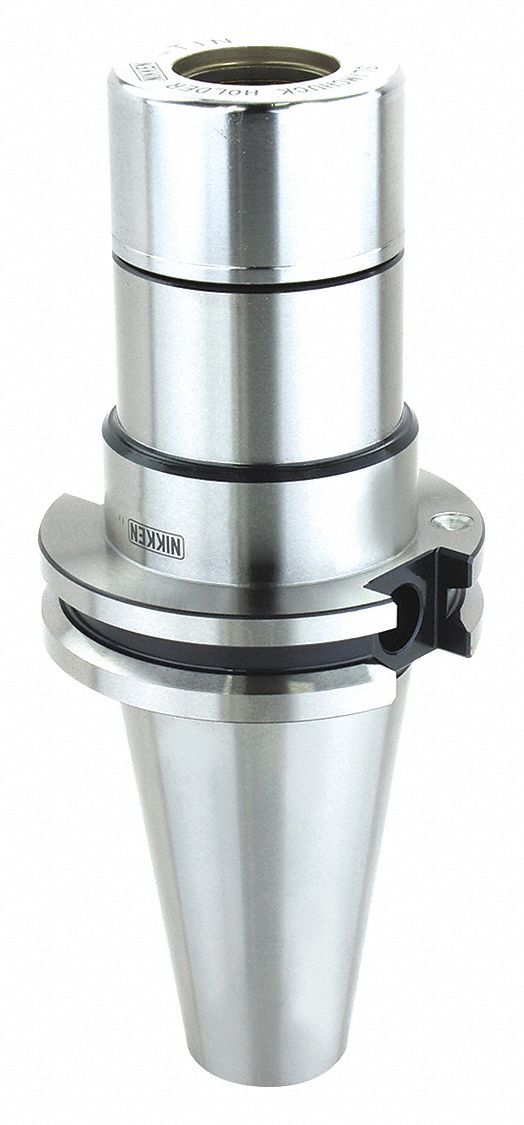

| C1 | CAT40-SK10-120UP | High Speed Steel | 4.724" | Cat40 | 1.083" | 0.069" | 0.393" | 1.083" | 7 13/32" | €708.21 | |
| H | CAT40-SK10-90U | High Speed Steel | 3.543" | Cat40 | 1.083" | 0.069" | 0.393" | 1.083" | 6 7/32" | €589.11 | |
| C1 | CAT40-SK10-90UP | High Speed Steel | 3.543" | Cat40 | 1.083" | 0.069" | 0.393" | 1.083" | 6 7/32" | €678.65 | |
| C1 | CAT40-SK6-150UP | High Speed Steel | 5.906" | Cat40 | 1.575" | 0.028" | 0.236" | 0.768" | 8 37/64" | €732.53 | |

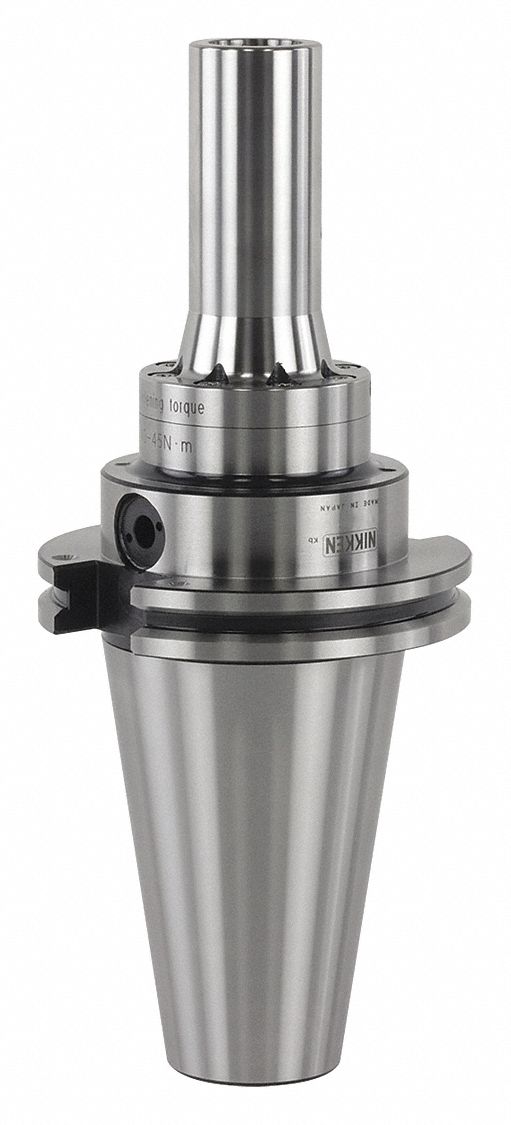

| D1 | CAT50-MMC12C-105U | High Speed Steel | 4.134" | CAT50 | - | 0.158" | 1/2" | 1.181" | 8 3/32" | €1,286.70 | |
| D1 | CAT50-MMC12C-165U | High Speed Steel | 6.496" | CAT50 | 1.083" | 0.158" | 1/2" | 1.181" | 10 29/64" | €1,579.97 | |
| D1 | CAT50-MMC8C-105U | High Speed Steel | 4.134" | CAT50 | 1.083" | 0.079" | 0.314" | 0.787" | 8 1/64" | €1,328.34 |
