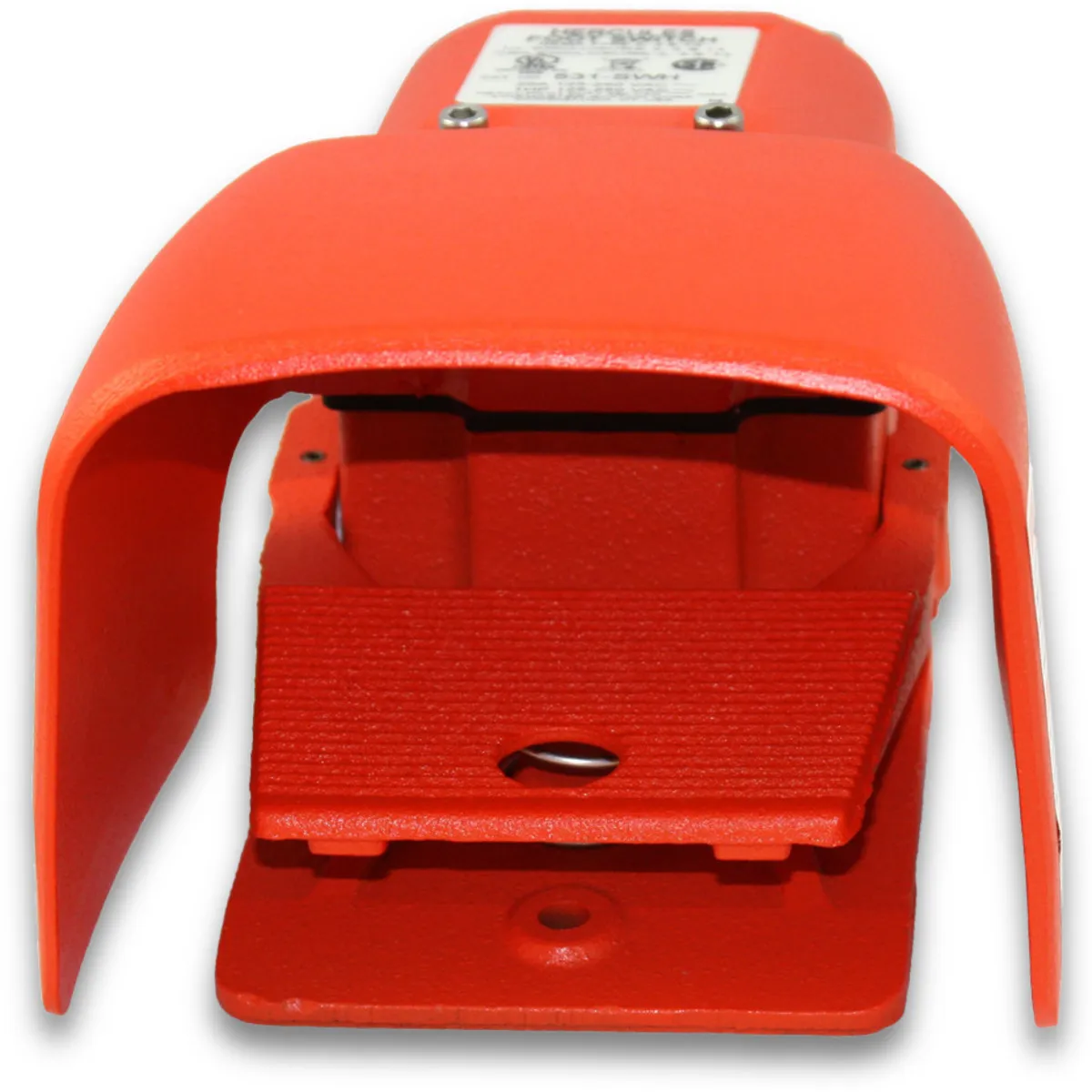

LINEMASTER 531-SWH Heavy Duty Foot Switch Momentary Action
Item: AC3TTEModel: 531-SWHCross Ref: 2W807
7 In Stock
Momentary
Single
SPDT
C
Ships within 2 days via
10.00% off
€273.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Foot Switch |
| Ac Contact Rating | 20A @ 125 To 250V |
| Action Type | Momentary |
| Cable Entries | Threaded Entry |
| Cable Entry Size | 3/4"-14 |
| Cable Entry Type | NPT |
| Contact Configuration | Form C |
| Contact Form | SPDT |
| Depth | 4 1/2" |
| Display Qty | 1 |
| Electrical Ratings | 20A, 125-250V AC, 1 hp, 125-250V AC, Heavy Pilot Duty 250V AC Max. |
| Features | (3) Mounting Holes |
| Foot Guard Included | Guard Included |
| Hazardous Location Specification | Not Rated |
| Horsepower | 1 hp @ 125-250V AC |
| Housing Colors | Orange |
| Housing Material | Cast Iron |
| Includes | Ground Screw, Neoprene Cover Gasket, O Ring |
| Includes Potentiometer | No Potentiometer Included |
| Ip Rating | IP56 |
| Length | 9" |
| Material | Cast Iron |
| Nema Enclosure Rating | NEMA 2, NEMA 4, NEMA 13 |
| Nema Rating | NEMA 2, 4, 13 |
| Number Of Pedals | 1 |
| Overall Depth | 9" |
| Overall Height | 4.37" |
| Overall Width | 5.88" |
| Power Source | Electrically Corded |
| Product Datasheet | linemaster-531-swh.pdf |
| Series | HERCULES Series |
| Shields And Guards | Full Shield |
| Switch Action | Momentary |
| Switch Connections | Screw Terminal |
| Switch Type | Electrical |
| Termination Connection Type | Screw Terminal |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 3.38 |
| Ship height (cm) | 11.1 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 14.94 |
| HS code | 8536509035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Contact Form | Depth | Amps Rating | Material | Nema Rating | Hp | Ip Rating | Cord Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 532-SWH | DPDT | 4 1/2" | - | Cast Iron | NEMA 2, 4, 13 | - | - | - | €390.05 | |
| 575-DWHA | SPDT | - | - | - | - | - | - | - | €637.47 | |
| 537-SWH | Dpdt Db | - | - | - | - | - | - | - | €571.93 | |
| 571-DWH | SPDT | 5 3/8" | 20A | Cast Iron | - | - | IP56 | No Cord | €492.03 | |
| 534-SWH | SPDT | 5.781" | 20A | Cast Iron | - | - | IP56 | No Cord | €528.49 | |
| 536-SWH | Spdt Db | 4 3/8" | 15A | Cast Iron | - | 1 hp, 1/2 hp | IP56 | No Cord | €498.83 |
