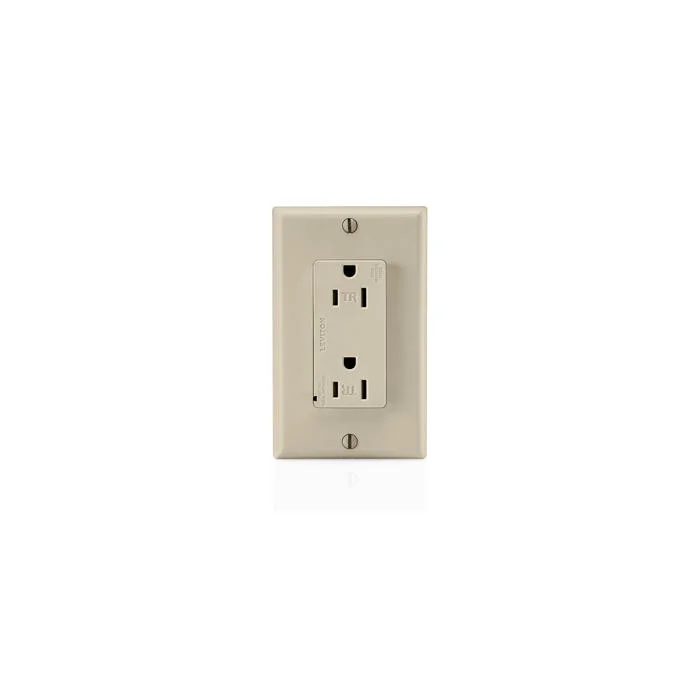

LEVITON T5280-I Type 3-Duplex Self-Grounding Tamper Resistant Surge Protective Receptacle, 125 VAC, 15 A, 2 Pole, 3 Wire
Item: CR9HQEModel: T5280-ICross Ref: 792UR2
7 In Stock
Ships within 2 days via
5.00% off
€140.39 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | Polycarbonate |
| Clamp Nuts Finish | Zinc Plated |
| Clamp Nuts Material | Steel |
| Color | Ivory |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 15A |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Features | Tamper Resistant |
| Function | Surge Protective |
| Gfci | No |
| Grade | Commercial , General Use |
| Ground Clips Finish | Brass Plated |
| Ground Clips Material | Steel |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Brass Plated |
| Grounding Screw Material | Brass |
| Housing Color | Ivory |
| Housing Material | Polycarbonate |
| Includes Mounting Hardware | Yes |
| Joules Rating | 720J |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Max. Operating Temp. | 60°C |
| Max. Surge Current, Per Mode (per Phase) | 27 kA |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Mcov | 150 VRMS |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-15R |
| Noise Rejection | 30 dB at 500 kHz to 30 MHz |
| Nominal Discharge Amps Rating | 3 kA |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-t5280-w.pdf |
| Receptacle Type | Decorator Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Short Circuit Current Rating | 5 kA |
| Shutter Mechanism | Delrin Acetal |
| Signal & Power Protection | Surge Protection |
| Special Resistance Properties | Tamper Resistant |
| Standards | Ansi, Csa Certified, Nom Certified, Ul Listed |
| Surge Protection | Yes |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Brass Plated |
| Terminal Screws Material | Steel |
| Termination | Back Or Side Wire |
| Torque Range | 14 lbs.-in. to 16 lbs.-in. |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Vpr | L-N- 600V, L-G- 700V, N-G- 600V |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Yoke Finish | Zinc Plated |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 13.65 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 7.14 |
| Country of Origin | MX |
