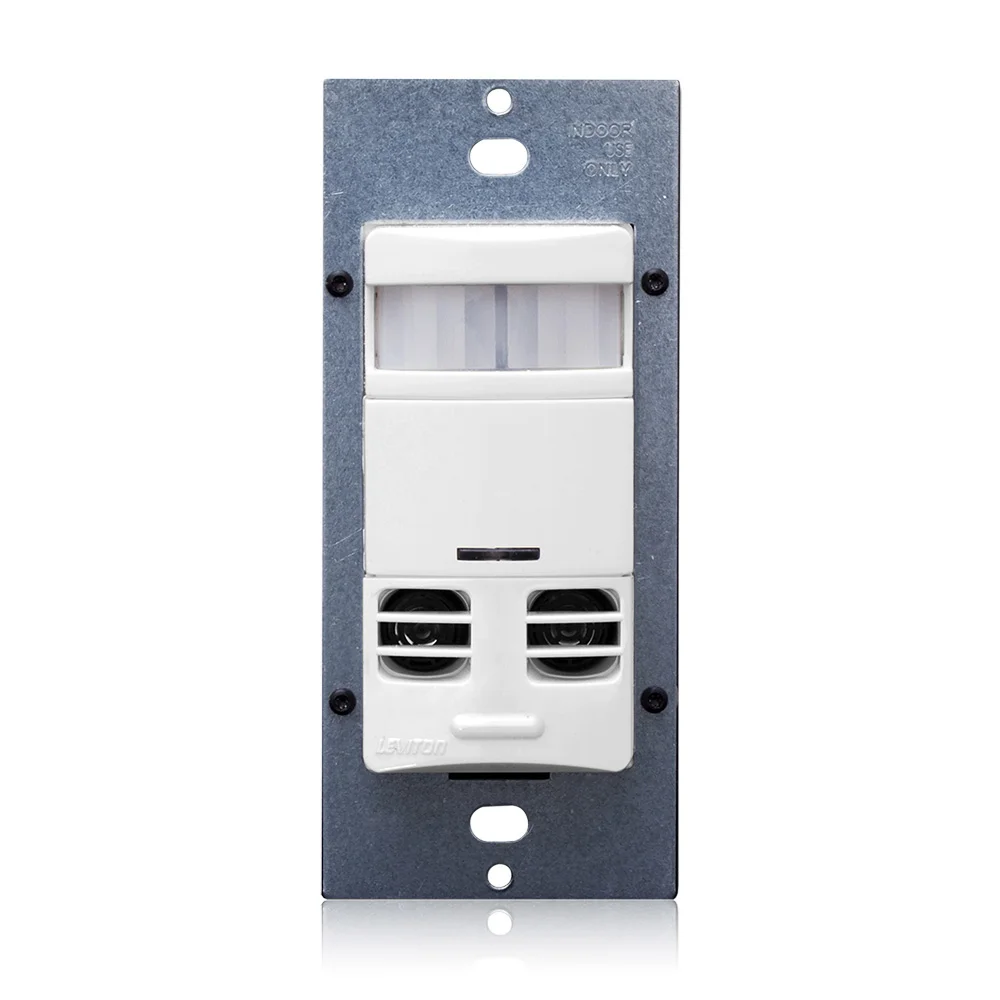

LEVITON OSSMT-MAW Wall Mount Occupancy Sensor, 120/230/277 VAC, Multi-Technology Sensor, White, Wall Mounting, 1 Pole
Item: CR9HFDModel: OSSMT-MAWCross Ref: 791DV1
7 In Stock
Ships within 2 days via
5.00% off
€188.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Occupancy Sensor |
| Application | Retrofit, Private And Executive Offices, Conference Rooms, Storage Areas, Restrooms, Classrooms, Lounges, Training Areas, Multi Location Switching (Similar To 3 Way) |
| Color | White |
| Communication Method | Hard Wired |
| Compatible With | 1/4 Hp Motor |
| Compatible With Series | Switching Only (Universal) |
| Coverage | 2400 sq. ft. |
| Coverage Angle | 180° |
| Coverage Type | Small Motion |
| Depth | 1.85" |
| Dimming Method | No Dimming |
| Dimming Type | No Dimming |
| Fan Rated | Yes |
| Frequency | 50/60 Hz |
| Grade | Commercial |
| Height | 4.06" |
| Hp | 1/4 hp |
| Included | Neutral Wire |
| Included Dimming Switch | Dimming Switch Not Included |
| Included Motion Sensor | Yes |
| Included Wall Plate | Wall Plate Not Included |
| Install Depth | 1.35" |
| Install Height | 2.65" |
| Installation Location | Wall |
| Installation Location (motion Sensor) | Wall Switch Box |
| Lighting Technology | Fluorescent, Incandescent |
| Load Rating | Incandescent/Tungsten- 800 W @ 120V-Fluorescent- 1200 VA @ 120V 2700 VA @ 277V, 1500 VA @ 347V-Motor- 1/4 hp @ 120V |
| Load Rating @ 120v Ac | 1200 VA(Fluorescent)800 W (Incandescent, Tungsten) |
| Load Rating @ 277v Ac | 2700 VA (Fluorescent) |
| Max. Capacity @ 277v | 2700 VA (Fluorescent) |
| Max. Coverage Area | 2400 sq. ft. |
| Max. Detection Distance | 40 ft. |
| Max. Operating Temp. | 104°F |
| Max. Time Delay | 30 min. |
| Min. Operating Temp. | 32°F |
| Min. Time Delay | 30 sec. |
| Mounting Type | Wall Switch |
| Neutral Required | Yes |
| Neutral Wire Connection | Required |
| Night Light | No |
| No. Of Buttons | 1 |
| Operating Temp. | 0°C to 40°C |
| Operating Voltage | 120-277V AC |
| Overall Depth | 1.85" |
| Overall Height | 4.06" |
| Overall Width | 1 3/4" |
| Pattern | 180° |
| Power Consumption | U/S And PIR-120V, 390 mW, 277V, 480 mW, 347V, 500 mW-PIR Only-120V, 190 mW, 277V, 270 mW, 347V, 350 mW |
| Product Datasheet | leviton-ossmt-gdi.pdf |
| Relative Humidity | 20% to 90% Non Condensing |
| Sensing Technology | Passive Infrared, Ultrasonic |
| Sensor Operation | Occupancy, Vacancy, Photocell |
| Sensor Technology | Multi Technology-PIR/Ultrasonic US |
| Sensor Type | Occupancy |
| Series | DECORA Series |
| Standards | Title 24 Compliant, Ul/Cul Listed, Usmca Compliant |
| Storage Temp. | 14°F to 185°F |
| Switch Type | Single Pole |
| Time Delay | 30 sec. to 30 min. , Adaptive, Adjustable |
| Time Delay Adjustment Method | Adaptive |
| Voltage | 120-277V AC |
| Width | 1 3/4" |
| Wiring | Line Black, Load Blue, Ground Green, Neutral White |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 29.85 |
| Ship width (cm) | 4.78 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Operating Voltage | Time Delay | Color | Voltage | Depth | Lighting Technology | Sensing Technology | Installation Location (motion Sensor) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
OSSMT-GDW | 120-277V AC | Adaptive, Adjustable | White | 120-277V AC | 1.85" | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | Wall Switch Box | €154.10 | |
 |
OSSMT-GDI | 120-277V AC | Adaptive, Adjustable | Ivory | 120-277V AC | 1.85" | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | Wall Switch Box | €154.10 | |
 |
OSSMD-MAG | 120-277V AC | 30 sec. to 30 min. | Gray | - | - | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | Wall Switch Box | €231.11 | |
 |
OSSMD-GAT | 120/230/277V AC | Adaptive, Adjustable | Light Almond | 120/230/277V AC | 1.83" | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | Wall Switch Box | €271.09 | |
 |
OSSMD-MAI | 120-277V AC | 30 sec. to 30 min. | Ivory | 120/230/277V AC | 1.83" | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | Wall Switch Box | €231.11 | |
 |
OSSMT-MAE | 120-277V AC | Adaptive, Adjustable | Black | 120-277V AC | 1.85" | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | Wall Switch Box | €173.52 | |
 |
OSSMT-GDT | 120-277V AC | Adaptive, Adjustable | Light Almond | 120-277V AC | 1.85" | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | Wall Switch Box | €154.10 |
