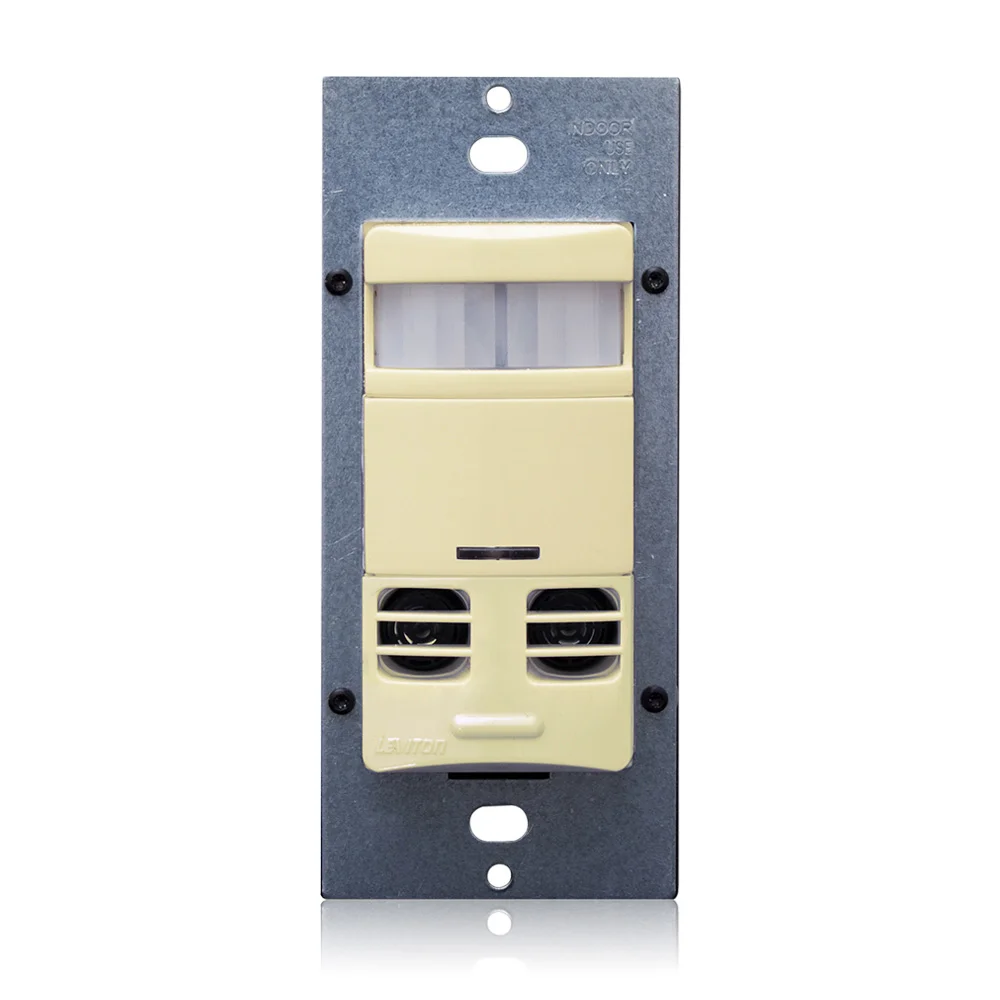

LEVITON OSSMT-GDI Hard Wired, Wall Switch Box, 2400 sq ft Coverage at Suggested Mounting Height
Item: CR9HEXModel: OSSMT-GDICross Ref: 791DV8
7 In Stock
Ships within 2 days via
10.00% off
€138.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motion Sensor |
| Color | Ivory |
| Communication Method | Hard Wired |
| Compatible With | 1/4 Hp Motor |
| Compatible With Series | Switching Only (Universal) |
| Coverage Angle | 180° |
| Coverage Type | Small Motion |
| Dimming Method | No Dimming |
| Dimming Type | No Dimming |
| Fan Rated | No |
| Frequency | 50/60 Hz |
| Height | 4.06" |
| Hp Rating | 1/4 hp |
| Includes Dimming Switch | Dimming Switch Not Included |
| Includes Motion Sensor | Yes |
| Includes Wall Plate | Wall Plate Not Included |
| Installation Location | Wall |
| Installation Location (motion Sensor) | Wall Switch Box |
| Lighting Technology | Fluorescent, Incandescent |
| Load Rating @ 120v Ac | 1200 VA(Fluorescent)800 W (Incandescent, Tungsten) |
| Load Rating @ 277v Ac | 2700 VA (Fluorescent) |
| Manufacturer Warranty | 5 yrs. |
| Max. Capacity @ 277vac | 2700 VA (Fluorescent) |
| Maximum Coverage Area | 2400 sq. ft. |
| Maximum Detection Distance | 40 ft. |
| Maximum Operating Temperature | 104°F |
| Maximum Time Delay | 30 min. |
| Minimum Operating Temperature | 32°F |
| Minimum Time Delay | 30 sec. |
| Neutral Required | No |
| Nightlight | No |
| Number Of Buttons | 1 |
| Operating Voltage | 120-277V AC |
| Overall Depth | 1.85" |
| Overall Height | 4.06" |
| Rated Frequency | 50/60 Hz |
| Sensing Technology | Passive Infrared, Ultrasonic |
| Sensor Operation | Occupancy, Vacancy, Photocell |
| Series | DECORA Series |
| Standards | Csa Certified, Etl/Cetl Listed, Title 24 Compliant, Usmca Compliant |
| Switch Type | Single Pole |
| Time Delay Adjustment Method | Adaptive |
| Voltage | 120-277V AC |
| Width | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 116.84 |
| Ship length (cm) | 4.7 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Operating Voltage | Time Delay | Color | Max. Capacity @ 277vac | Voltage | Depth | Lighting Technology | Sensing Technology | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
OSSMT-GDW | 120-277V AC | Adaptive, Adjustable | White | 2700 VA (Fluorescent) | 120-277V AC | 1.85" | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | €154.10 | |
 |
OSSMD-MAG | 120-277V AC | 30 sec. to 30 min. | Gray | 10A (LED), 1200 VA (Fluorescent), 2700 VA (Fluorescent) | - | - | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | €231.11 | |
 |
OSSMD-GAT | 120/230/277V AC | Adaptive, Adjustable | Light Almond | 10A (LED), 1200 VA (Fluorescent), 2700 VA (Fluorescent) | 120/230/277V AC | 1.83" | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | €271.09 | |
 |
OSSMT-MAW | 120-277V AC | Adaptive, Adjustable | White | 2700 VA (Fluorescent) | 120-277V AC | 1.85" | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | €198.31 | |
 |
OSSMD-MAI | 120-277V AC | 30 sec. to 30 min. | Ivory | 10A (LED), 1200 VA (Fluorescent), 2700 VA (Fluorescent) | 120/230/277V AC | 1.83" | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | €231.11 | |
 |
OSSMT-MAE | 120-277V AC | Adaptive, Adjustable | Black | 2700 VA (Fluorescent) | 120-277V AC | 1.85" | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | €198.31 | |
 |
OSSMT-GDT | 120-277V AC | Adaptive, Adjustable | Light Almond | 2700 VA (Fluorescent) | 120-277V AC | 1.85" | Fluorescent, Incandescent | Passive Infrared, Ultrasonic | €154.10 |
