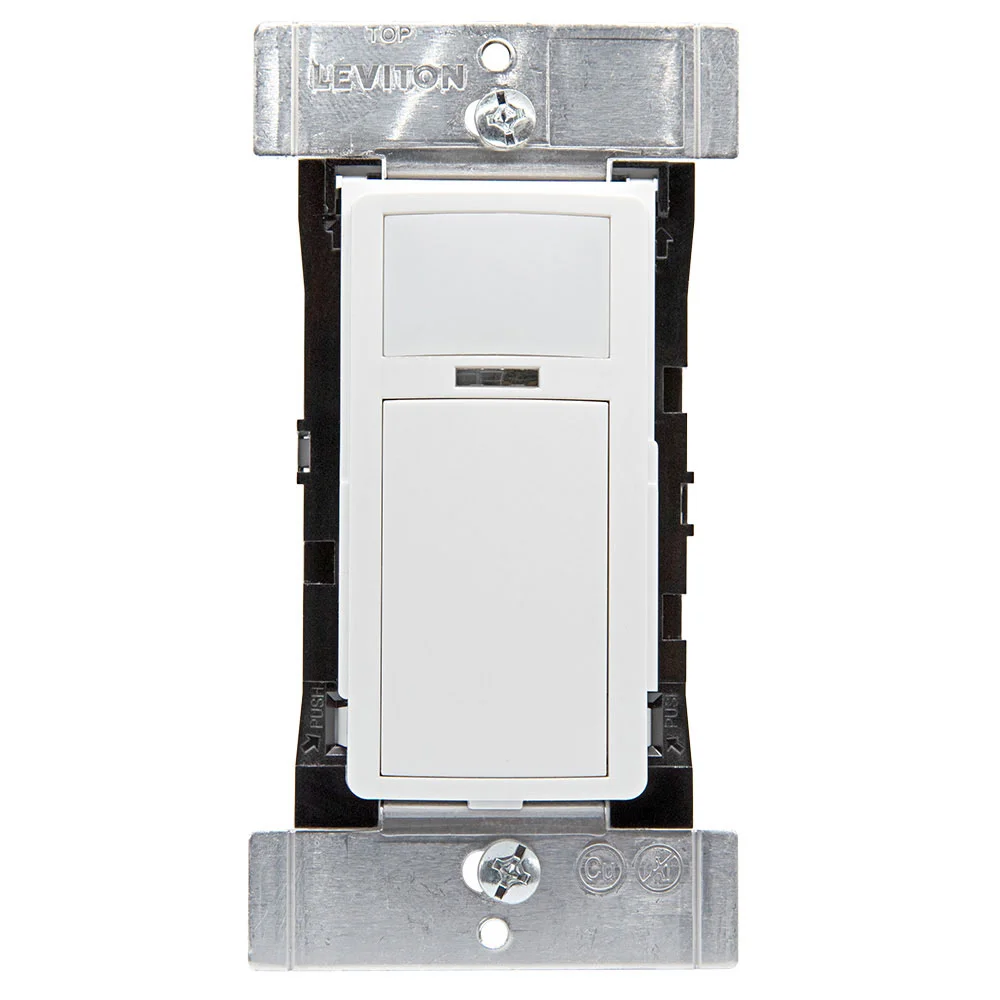

LEVITON ODS15-IDW Hard Wired, Wall Switch Box, 2100 sq ft Coverage at Suggested Mounting Height
Item: CR9HFFModel: ODS15-IDWCross Ref: 791DP4
7 In Stock
Ships within 2 days via
10.00% off
€97.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motion Sensor |
| Color | White |
| Communication Method | Hard Wired |
| Compatible With | 1/4 Hp Motor |
| Compatible With Series | Switching Only (Universal) |
| Coverage Angle | 180° |
| Coverage Type | Small Motion |
| Dimming Method | No Dimming |
| Dimming Type | No Dimming |
| Fan Rated | No |
| Frequency | 50/60 Hz |
| Height | 4.13" |
| Hp Rating | 1/4 hp |
| Includes Dimming Switch | Dimming Switch Not Included |
| Includes Motion Sensor | Yes |
| Includes Wall Plate | Wall Plate Not Included |
| Installation Location | Wall |
| Installation Location (motion Sensor) | Wall Switch Box |
| Ip Rating | IP10 |
| Lighting Technology | Fluorescent, Incandescent |
| Load Rating @ 120v Ac | 1800 VA (Fluorescent), 1800 W (Incandescent) |
| Load Rating @ 277v Ac | 4000 VA (Fluorescent) |
| Manufacturer Warranty | 5 yrs. |
| Max. Capacity @ 120vac | 1800 VA (Fluorescent), 1800 W (Incandescent) |
| Maximum Coverage Area | 1000 sq. ft. |
| Maximum Detection Distance | 40 ft. |
| Maximum Operating Temperature | 104°F |
| Maximum Time Delay | 30 min. |
| Minimum Operating Temperature | 32°F |
| Minimum Time Delay | 30 sec. |
| Neutral Required | Yes |
| Nightlight | Yes |
| Number Of Buttons | 1 |
| Operating Voltage | 120-277V AC |
| Overall Depth | 1.86" |
| Overall Height | 4.13" |
| Overall Width | 2 3/25" |
| Rated Frequency | 50/60 Hz |
| Sensing Technology | Passive Infrared |
| Sensor Operation | Occupancy, Vacancy, Photocell |
| Series | DECORA Series |
| Standards | Ashrae 90.1, Etl/Cetl Listed, Fcc Approved, Iecc, Nom, Title 24, Part 6 |
| Switch Type | Single Pole |
| Voltage | 120-277V AC |
| Width | 2 3/25" |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 116.84 |
| Ship length (cm) | 4.65 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Lighting Technology | Operating Voltage | Time Delay | Coverage | Color | Sensor Type | Height | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ODS0D-IDI | Incandescent | 120/230/277V AC | Adaptive, Adjustable | 2100 sq. ft. | Ivory | Occupancy | 4.06" | 120/230/277V AC | €183.24 | |
 |
ODS10-IDI | Incandescent | 120-277V AC | 30 sec. to 30 min. | - | Ivory | - | - | - | €127.06 | |
 |
ODS15-IDI | Incandescent | 120-277V AC | 30 sec. to 30 min. | 1000 sq. ft. | Ivory | Occupancy, Vacancy | 4.13" | 120-277V AC | €108.21 | |
 |
ODS0D-IDG | Incandescent | 120/230/277V AC | Adaptive, Adjustable | 2100 sq. ft. | Gray | Occupancy | 4.06" | 120/230/277V AC | €183.24 | |
 |
ODS0D-IDW | Incandescent | 120/230/277V AC | Adaptive, Adjustable | 2100 sq. ft. | White | Occupancy | 4.06" | 120/230/277V AC | €183.24 | |
 |
ODS10-IDW | Incandescent | 120-277V AC | 30 sec. to 30 min. | 2100 sq. ft. | White | Occupancy | 4.06" | 120-277V AC | €127.06 | |
 |
ODS0D-IDT | Incandescent | 120/230/277V AC | 30 sec. to 30 min. | 2100 sq. ft. | Light Almond | Occupancy | 4.06" | 120/230/277V AC | €183.24 |
