LEVITON ODS0D-IDI Dual Relay Wall Mount Occupancy Sensor, 120/230/277 VAC, Passive Infrared Sensor, 180 Deg, Ivory, 1 Pole

Item: CR9HELModel: ODS0D-IDICross Ref: 791DN0

7 In Stock

Ships within 2 days via

~~€183.24~~

5.00% off

€174.08 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Motion Sensor
Application	Classrooms, Multimedia Rooms, Daylight Harvesting, Conference Rooms, Day Care Centers, Offices, Lounges, Bi Level Or A/B Switching
Color	Ivory
Communication Method	Hard Wired
Compatible With Series	Switching Only (Universal)
Coverage	2100 sq. ft.
Coverage Angle	180°
Coverage Type	Small Motion
Depth	1.83"
Dimming Method	No Dimming
Dimming Type	No Dimming
Fan Rated	Yes
Frequency	50/60 Hz
Grade	Commercial
Height	4.06"
Includes	Photocell
Includes Dimming Switch	Dimming Switch Not Included
Includes Motion Sensor	Yes
Includes Wall Plate	Wall Plate Not Included
Install Depth	1.35"
Install Height	2.06"
Installation Location	Wall
Installation Location (motion Sensor)	Wall Switch Box
Lighting Technology	Incandescent
Load Rating	Primary Relay Fluorescent- 1200 VA @ 120V 2700 VA @ 277V Incandescent- 800 W @ 120V-Secondary Relay Fluorescent- 800 VA @ 120V 1200 VA @ 277V Incandescent- 800 W @ 120V
Load Rating @ 120v Ac	1200 VA(Primary Relay Fluorescent), 800V (Secondary Relay Fluorescent)800 W (Incandescent)
Load Rating @ 277v Ac	2700V (Primary Relay Fluorescent)
Manufacturer Warranty	5 yrs.
Max. Capacity @ 277vac	2700V (Primary Relay Fluorescent)
Maximum Coverage Area	2100 sq. ft.
Maximum Detection Distance	40 ft.
Maximum Operating Temperature	122°F
Maximum Time Delay	30 min.
Minimum Operating Temperature	32°F
Minimum Time Delay	30 sec.
Mounting Type	Wall Switch
Neutral Required	No
Neutral Wire Connection	Not Required
Nightlight	No
Number Of Buttons	2
Number Of Gangs	1
Operating Temp.	32°F to 122°F
Operating Voltage	120/230/277V AC
Overall Depth	1.83"
Overall Height	4.06"
Overall Width	1 3/4"
Pattern	180°
Power Consumption	120V-110 mW, 277V, 270 mW
Product Datasheet	leviton-ods0d-idw.pdf
Rated Frequency	50/60 Hz
Relative Humidity	20% to 90% Non Condensing
Relay Type	Dual Relay
Sensing Technology	Passive Infrared
Sensor Operation	Occupancy, Vacancy, Photocell
Sensor Technology	PIR
Sensor Type	Occupancy
Series	DECORA Series
Standards	Cul/Us Certified, Fcc Approved, Title 24, Part 6
Storage Temp.	14°F to 185°F
Switch Type	Single Pole, Dual Relay
Technology	Passive Infrared
Time Delay	30 sec. to 30 min. , Adaptive, Adjustable
Time Delay Adjustment Method	Adaptive
Voltage	120/230/277V AC
Width	1 3/4"
Wiring	Primary Relay No. 16 AWG leads Line-Black, Load-Blue, Ground-Green-Secondary Relay N0. 18 AWG Isolated Contact Leads (2) Red

Shipping Info:

Ship weight (kg)	0.16
Ship height (cm)	15.24
Ship length (cm)	29.85
Ship width (cm)	4.78
Country of Origin	CN

Documentation:

Datasheet

Product Variants

Model	Lighting Technology	Operating Voltage	Time Delay	Coverage	Color	Sensor Type	Height	Voltage	Price

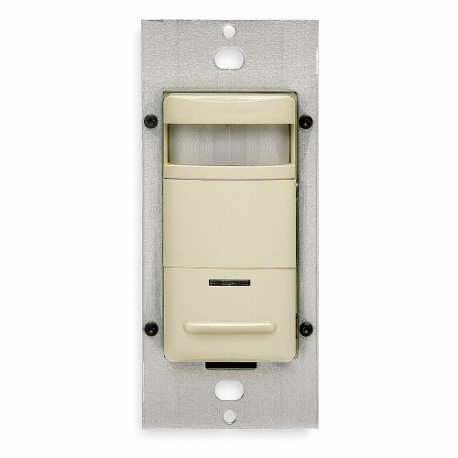

ODS10-IDI	Incandescent	120-277V AC	30 sec. to 30 min.	-	Ivory	-	-	-	€127.06
ODS15-IDI	Incandescent	120-277V AC	30 sec. to 30 min.	1000 sq. ft.	Ivory	Occupancy, Vacancy	4.13"	120-277V AC	€108.21

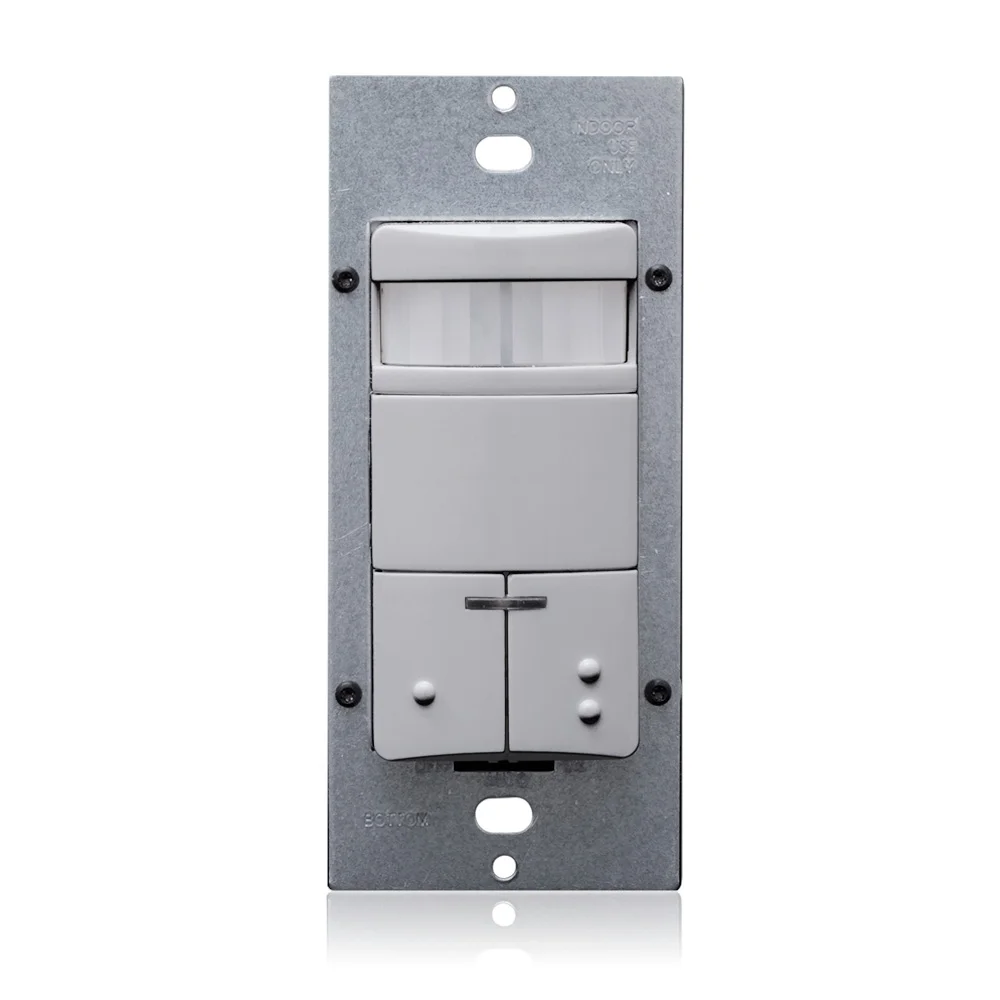

ODS0D-IDG	Incandescent	120/230/277V AC	Adaptive, Adjustable	2100 sq. ft.	Gray	Occupancy	4.06"	120/230/277V AC	€183.24

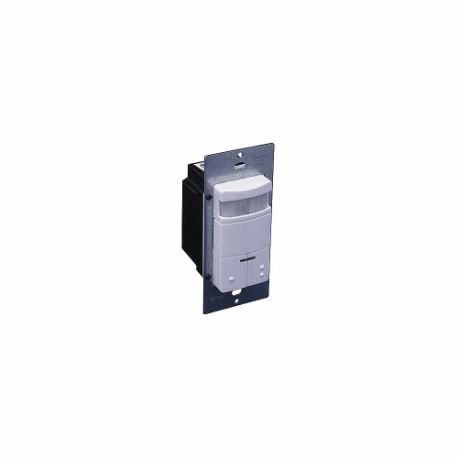

ODS0D-IDW	Incandescent	120/230/277V AC	Adaptive, Adjustable	2100 sq. ft.	White	Occupancy	4.06"	120/230/277V AC	€183.24

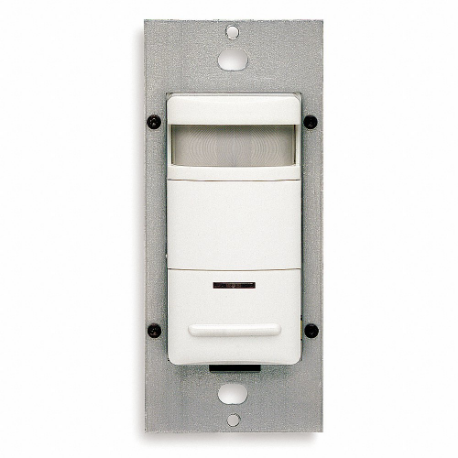

ODS10-IDW	Incandescent	120-277V AC	30 sec. to 30 min.	2100 sq. ft.	White	Occupancy	4.06"	120-277V AC	€127.06
ODS15-IDW	Fluorescent, Incandescent	120-277V AC	30 sec. to 30 min.	1000 sq. ft.	White	Occupancy, Vacancy	4.13"	120-277V AC	€108.21

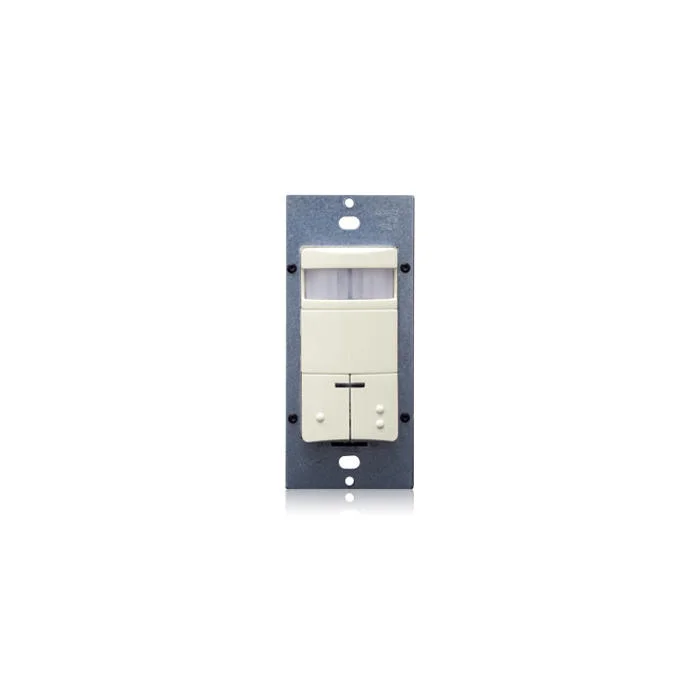

ODS0D-IDT	Incandescent	120/230/277V AC	30 sec. to 30 min.	2100 sq. ft.	Light Almond	Occupancy	4.06"	120/230/277V AC	€183.24
