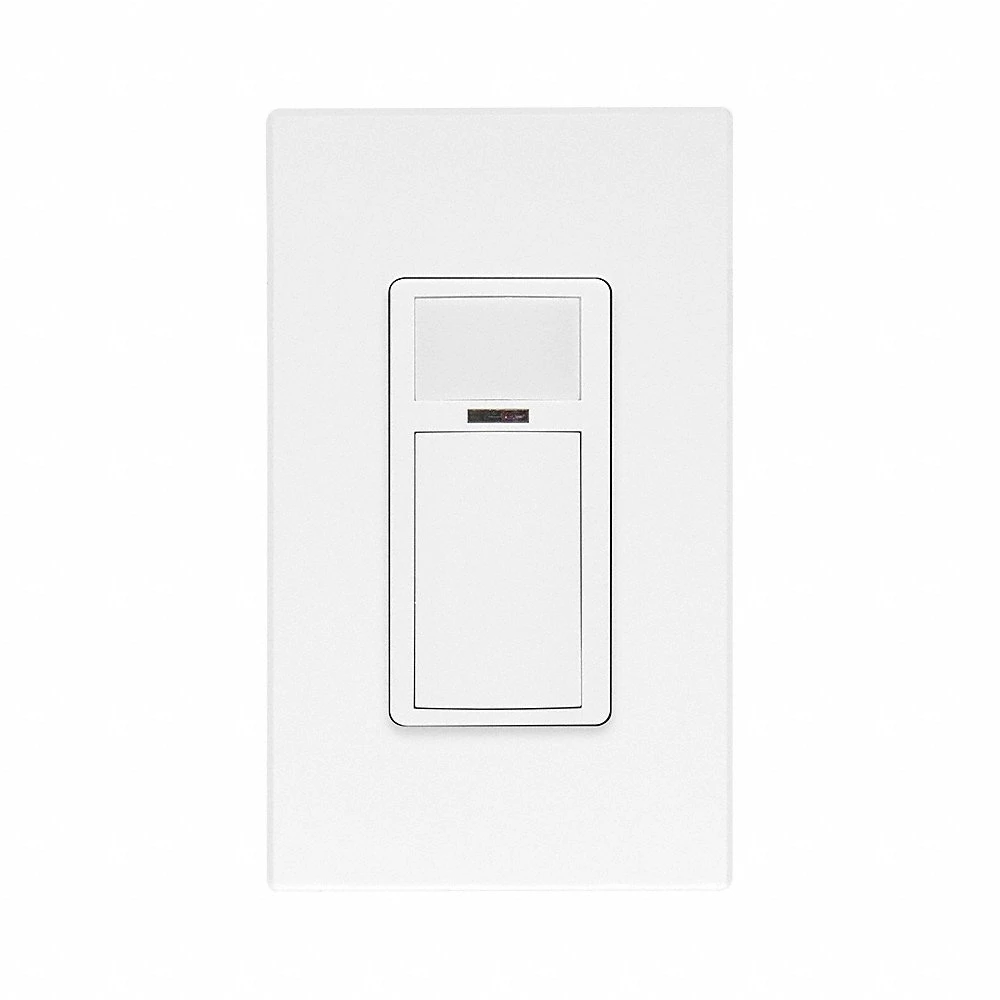

LEVITON ODS15-I1W Occupancy Sensor, Occupancy/Photocell/Vacancy, Incandescent, Passive Infrared, 120V AC
Item: CR9HGFModel: ODS15-I1WCross Ref: 791DP2
7 In Stock
Ships within 2 days via
5.00% off
€94.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Occupancy Sensor |
| Application | Small Offices, Lobbies, Small Meeting Rooms |
| Color | White |
| Communication Method | Hard Wired |
| Compatible With | 1/3 Hp Motor, 1/4 Hp Motor, LED/Electronic Ballast, Standard Ballast, Tungsten |
| Compatible With Series | Switching Only (Universal) |
| Coverage | 1000 sq. ft. |
| Coverage Angle | 180° |
| Coverage Type | Small Motion |
| Depth | 1.86" |
| Dimming Method | No Dimming |
| Dimming Type | No Dimming |
| Fan Rated | Yes |
| Features | App Configurable |
| Frequency | 60 Hz |
| Grade | Commercial |
| Height | 4.13" |
| Hp Rating | 1/4 hp |
| Includes Dimming Switch | Dimming Switch Not Included |
| Includes Motion Sensor | Yes |
| Includes Wall Plate | Wall Plate Not Included |
| Input Current | 120V- Stan d By- 0.2W Max- 0.5W+Load Current-277V- Stan dBy- 0.3W Max- 0.6W+Load Current |
| Install Depth | 1.42" |
| Installation Location | Wall |
| Installation Location (motion Sensor) | Wall Switch Box |
| Ip Rating | IP10 |
| Lighting Technology | Incandescent |
| Load Rating | General Purpose @ 120V- 20A-General Purpose @ 277V- 20A-LED/Electronic Ballast @ 120V- 10A, -LED/Electronic Ballast @ 277V- 10A-Standard Ballast @ 120V- 10A-Standard Ballast @ 277V- 10A-Tungsten @ 120V- 6.67A-Tungsten @ 277V- 6.67A-Motor @ 120V- 1/4 hp (FLA 5.8A)-Motor @ 277V- 1/3 hp (FLA 3.0A) |
| Load Rating @ 120v Ac | 10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 5.8A FLA, 6.67A (Tungsten) |
| Load Rating @ 277v Ac | 10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 3A FLA (1/3 hp Motor), 6.67A (Tungsten) |
| Manufacturer Warranty | 5 yrs. |
| Max. Capacity @ 120vac | 10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 6.67A (Tungsten), Fla 5.8A (1/4 Hp Motor) |
| Max. Capacity @ 277vac | 10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 6.67A (Tungsten), Fla 3.0A (1/3 hp Motor) |
| Maximum Coverage Area | 1000 sq. ft. |
| Maximum Detection Distance | 40 ft. |
| Maximum Operating Temperature | 104°F |
| Minimum Operating Temperature | 32°F |
| Mounting Type | Wall Switch |
| Neutral Required | Yes |
| Neutral Wire Connection | Required |
| Nightlight | Yes |
| Number Of Buttons | 1 |
| Operating Temp. | 0°C to 40°C |
| Operating Voltage | 120V AC |
| Overall Depth | 1.86" |
| Overall Height | 4.13" |
| Overall Width | 2 3/25" |
| Pattern | 180° |
| Product Datasheet | leviton-ods15-idw.pdf |
| Rated Frequency | 60 Hz |
| Sensing Technology | Passive Infrared |
| Sensor Operation | Occupancy, Vacancy, Photocell |
| Sensor Technology | PIR |
| Sensor Type | Occupancy, Vacancy |
| Series | DECORA Series |
| Standards | Ashrae 90.1, Etl/Cetl Listed, Fcc Approved, Iecc, Nom, Title 24, Part 6 |
| Storage Temp. | -40°F to +185°F |
| Switch Type | Single Pole |
| Voltage | 120V AC |
| Width | 2 3/25" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 10.49 |
| Ship length (cm) | 4.72 |
| Ship width (cm) | 5.38 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Lighting Technology | Operating Voltage | Time Delay | Coverage | Color | Sensor Type | Height | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ODS0D-IDI | Incandescent | 120/230/277V AC | Adaptive, Adjustable | 2100 sq. ft. | Ivory | Occupancy | 4.06" | 120/230/277V AC | €183.24 | |
 |
ODS10-IDI | Incandescent | 120-277V AC | 30 sec. to 30 min. | - | Ivory | - | - | - | €127.06 | |
 |
ODS15-IDI | Incandescent | 120-277V AC | 30 sec. to 30 min. | 1000 sq. ft. | Ivory | Occupancy, Vacancy | 4.13" | 120-277V AC | €108.21 | |
 |
ODS0D-IDG | Incandescent | 120/230/277V AC | Adaptive, Adjustable | 2100 sq. ft. | Gray | Occupancy | 4.06" | 120/230/277V AC | €183.24 | |
 |
ODS0D-IDW | Incandescent | 120/230/277V AC | Adaptive, Adjustable | 2100 sq. ft. | White | Occupancy | 4.06" | 120/230/277V AC | €183.24 | |
 |
ODS10-IDW | Incandescent | 120-277V AC | 30 sec. to 30 min. | 2100 sq. ft. | White | Occupancy | 4.06" | 120-277V AC | €127.06 | |
 |
ODS15-IDW | Fluorescent, Incandescent | 120-277V AC | 30 sec. to 30 min. | 1000 sq. ft. | White | Occupancy, Vacancy | 4.13" | 120-277V AC | €108.21 |
