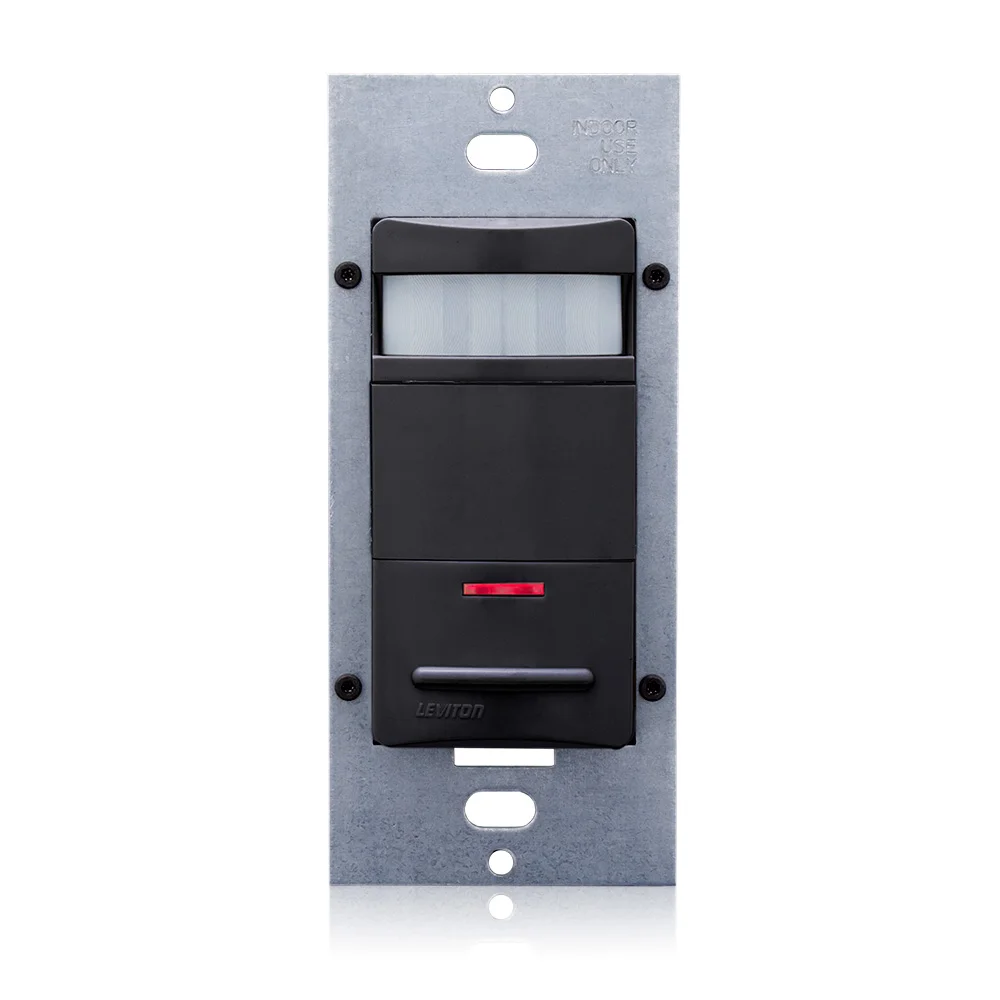

LEVITON ODS10-IDE Occupancy Sensor, Occupancy/Photocell/Vacancy, Incandescent, Passive Infrared, Black
Item: CR9HFXModel: ODS10-IDECross Ref: 791DP0
7 In Stock
Ships within 2 days via
5.00% off
€120.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Occupancy Sensor |
| Application | Small Offices, Conference Rooms, Lounges, Classrooms |
| Color | Black |
| Communication Method | Hard Wired |
| Compatible With | 1/4 Hp Motor |
| Compatible With Series | Switching Only (Universal) |
| Coverage | 2100 sq. ft. |
| Coverage Angle | 180° |
| Coverage Type | Small Motion |
| Depth | 1.83" |
| Dimming Method | No Dimming |
| Dimming Type | No Dimming |
| Fan Rated | Yes |
| Frequency | 50/60 Hz |
| Grade | Commercial |
| Height | 4.06" |
| Hp Rating | 1/4 hp |
| Includes | Photocell |
| Includes Dimming Switch | Dimming Switch Not Included |
| Includes Motion Sensor | Yes |
| Includes Wall Plate | Wall Plate Not Included |
| Install Depth | 1.35" |
| Install Height | 2.06" |
| Installation Location | Wall |
| Installation Location (motion Sensor) | Wall Switch Box |
| Lighting Technology | Incandescent |
| Load Rating | Fluorescent- 1200 VA @ 120V 2700 VA @ 277V-Incandescent- 800 W @ 120V Motor- 1/4 hp @ 120V |
| Load Rating @ 120v Ac | 1200 VA(Fluorescent)800 W (Incandescent) |
| Load Rating @ 277v Ac | 2700 VA (Fluorescent) |
| Manufacturer Warranty | 5 yrs. |
| Maximum Coverage Area | 2100 sq. ft. |
| Maximum Detection Distance | 40 ft. |
| Maximum Operating Temperature | 122°F |
| Maximum Time Delay | 30 min. |
| Minimum Operating Temperature | 32°F |
| Minimum Time Delay | 30 sec. |
| Mounting Type | Wall Switch |
| Neutral Required | No |
| Neutral Wire Connection | Not Required |
| Nightlight | No |
| Number Of Buttons | 1 |
| Operating Temp. | 0°C to 50°C |
| Operating Voltage | 120-277V AC |
| Overall Depth | 1.83" |
| Overall Height | 4.06" |
| Overall Width | 1 3/4" |
| Pattern | 180° |
| Product Datasheet | leviton-ods10-ide.pdf |
| Rated Frequency | 50/60 Hz |
| Relative Humidity | 20% to 90% Non Condensing |
| Sensing Technology | Passive Infrared |
| Sensor Operation | Occupancy, Vacancy, Photocell |
| Sensor Technology | PIR |
| Sensor Type | Occupancy |
| Series | DECORA Series |
| Standards | Ashrae 90.1, Csa Certified, Fcc Approved, Nom, Rohs Compliant, Title 24, Part 6, Ul Listed |
| Standby Power | 120V to 100 mW, 277V to 250 mW |
| Storage Temp. | 14°F to 185°F |
| Switch Type | Single Pole |
| Time Delay | 30 sec. to 30 min. |
| Voltage | 120-277V AC |
| Width | 1 3/4" |
| Wiring | Line Black, Load Blue, Ground Green, No Neutral Required |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 29.85 |
| Ship width (cm) | 10.31 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Lighting Technology | Operating Voltage | Time Delay | Coverage | Color | Sensor Type | Height | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ODS0D-IDI | Incandescent | 120/230/277V AC | Adaptive, Adjustable | 2100 sq. ft. | Ivory | Occupancy | 4.06" | 120/230/277V AC | €183.24 | |
 |
ODS10-IDI | Incandescent | 120-277V AC | 30 sec. to 30 min. | - | Ivory | - | - | - | €127.06 | |
 |
ODS15-IDI | Incandescent | 120-277V AC | 30 sec. to 30 min. | 1000 sq. ft. | Ivory | Occupancy, Vacancy | 4.13" | 120-277V AC | €108.21 | |
 |
ODS0D-IDG | Incandescent | 120/230/277V AC | Adaptive, Adjustable | 2100 sq. ft. | Gray | Occupancy | 4.06" | 120/230/277V AC | €183.24 | |
 |
ODS0D-IDW | Incandescent | 120/230/277V AC | Adaptive, Adjustable | 2100 sq. ft. | White | Occupancy | 4.06" | 120/230/277V AC | €183.24 | |
 |
ODS10-IDW | Incandescent | 120-277V AC | 30 sec. to 30 min. | 2100 sq. ft. | White | Occupancy | 4.06" | 120-277V AC | €127.06 | |
 |
ODS15-IDW | Fluorescent, Incandescent | 120-277V AC | 30 sec. to 30 min. | 1000 sq. ft. | White | Occupancy, Vacancy | 4.13" | 120-277V AC | €108.21 |
