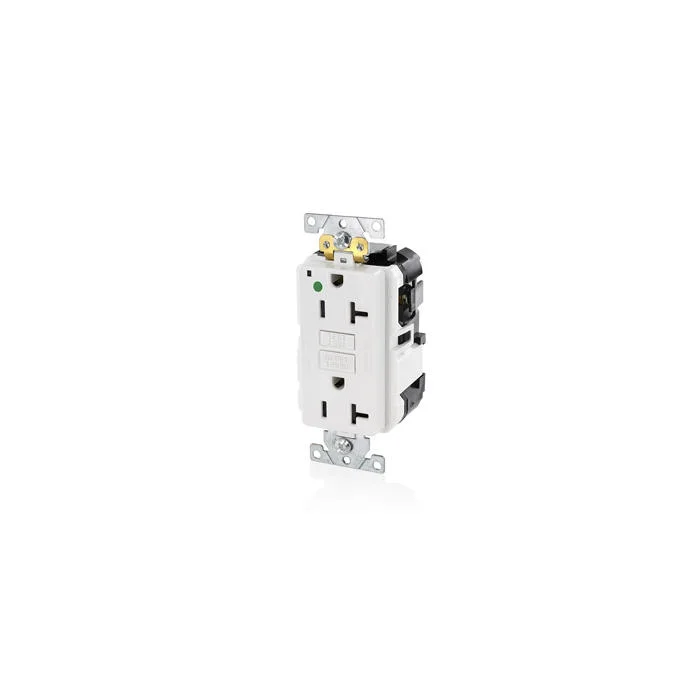

LEVITON MGFN2-HGW Modular Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, White, 2 Poles, Modular Wiring | CR9JAX 792UN0

LEVITON MGFN2-HGW Extra Heavy Duty Self Test Self Grounding GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Item: CR9JAXModel: MGFN2-HGWCross Ref: 792UN0
7 In Stock
Color

Ships within 2 days via

€94.80
5.00% off
€90.06 /unit
This product can only be shipped in multiples of 10
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Ac Hp @ Rated Voltage 1 hp
Amps 20A
Body Material Polycarbonate
Color White
Connection Orientation Straight
Cover Type No Cover
Device Type Duplex Receptacle Outlet
Face Material PBT
Face Plate Height 2 4/5"
Features Power Indication
Feed-through Amps 20A
Flammability Rated V-0 Per UL 94
Function GFCI
Gfci Yes
Grade Extra Heavy Duty Hospital Grade , Hospital Grade Fed. Spec
Ground Clips Material Brass
Grounding Grounded , Self Grounding
Housing Color White
Included Mounting Hardware Yes
Line Contacts Material Brass
Mount Hole Center To Center Height 3.3"
Mounting Hardware Included Yes
Mounting Type Flush
Nema Rating NEMA WD-1 And NEMA WD-6
Nema Receptacle Configuration NEMA 5-20R
No. Of Outlets 2
No. Of Poles 2
No. Of Wires 3
Operating Temp. -35°C to +66°C
Phase 1
Polarized Yes
Product Datasheet leviton-mgfn2-hgr.pdf
Receptacle Type Decorator Duplex
Resistance Property General Purpose
Screw Terminal Torque 14 lbs.-in. to 18 lbs.-in.
Self Testing Yes
Short Circuit Amps 2 kA
Strap Finish Galvanized
Strap Material Steel
Surge Protection Yes
Terminal Clamp Material Brass
Terminal Screws Finish Plated
Terminal Screws Material Steel
Termination Modular (line) And Back or Side Wire (load)
Trip Level Class A, 5 mA Plus Or Minus 1 mA
Ul 94 Flammability Rating V-0
Visual Indicator Lights Power Connected
Voltage 125V AC
Wire Connection Location Back, Side
Wire Connection Type Modular Wiring , Snap In Module

Shipping Info:

Ship weight (kg) 0.18
Ship height (cm)13.81
Ship length (cm)26.04
Ship width (cm)5.08
Country of OriginCN

Documentation:

Datasheet

Product Variants

ProductModelHousing ColorColorWire Connection TypeGroundingVoltageNo. Of PolesAmpsMounting TypePrice
LEVITON MGFN2-HGE Modular Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Black, 2 Poles, Modular Wiring | CR9HPK 792UM5 MGFN2-HGEBlackBlackModular WiringGrounded125V AC220AFlush€95.90
LEVITON MGFN2-HG Modular Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Brown, 2 Poles, Modular Wiring | CR9HPL 792UM4 MGFN2-HGBrownBrownModular WiringGrounded125V AC220AFlush€94.80
LEVITON MGFN2-HGG Modular Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Gray, 2 Poles, Modular Wiring | CR9HPM 792UM6 MGFN2-HGGGray-Modular WiringGrounded125V AC220AFlush€94.80
LEVITON MGFN2-HGI Modular Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Modular Wiring | CR9HPN 792UM7 MGFN2-HGIIvoryIvory-Grounded125V AC220AFlush€94.80
LEVITON MGFN2-HGT Modular Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Light Almond, 2 Poles | CR9HPP 792UM9 MGFN2-HGTLight AlmondLight AlmondModular WiringGrounded125V AC220AFlush€95.01
LEVITON MGFN2-HGR Modular Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Red, 2 Poles, Modular Wiring | CR9HPQ 792UM8 MGFN2-HGRRedRedModular WiringGrounded125V AC220AFlush€94.80
